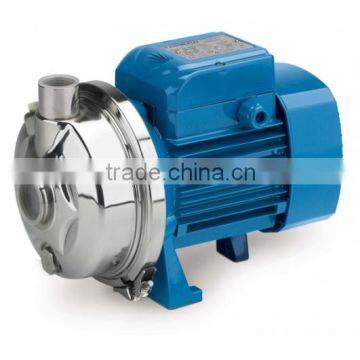

Stainless Steel Centrifugal Pump AL-RED 135m
Negotiable
1 (Min. Order)
You May Like
Product Details
| Place of Origin | Italy | Brand Name | Pedrollo | |
| Model Number | AL-RED 135m | Theory | Centrifugal Pump | |
| Usage | Water | Power | Electric | |
| Fuel | Other, Motor | Application | Other, Clean Water |
Product Description
Specifications
1. Original Pedrollo Pump.2. High Performance.
3. High Efficiency.
4. Made in Italy.
5. C/W Motor.
Performance Range:
- Maximum flow rate 160L/min (9.6m³/h).
- Maximum head 23m.
Installation and Use:
- Suitable for use with clean water and liquids that are not chemically aggressive towards the material from which the pump is made.
- As a result of heir construction characteristics, these centrifugal pumps are suitable for use in the domestic, agricultural and industrial sectors.
- All of the components in contact with the pumped liquid are constructed from stainless steel AISI 304, thus guaranteeing complete hygiene and maximum resistance against corrosion.
- The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.
| Model | AL-RED 135m |
| Size (Discharge) | 1-¼" x 1" |
| Power (Kw) | 0.75 Kw |
| Phase | 1 |
| Performance--Flow (L/min) | 20 ~ 160 |
| Performance--Head (Meter) | 21 ~ 10 |
Electric Motor : AL-RED 135m > single-phase 230V - 50Hz with thermal overload protector built-in to the winding.

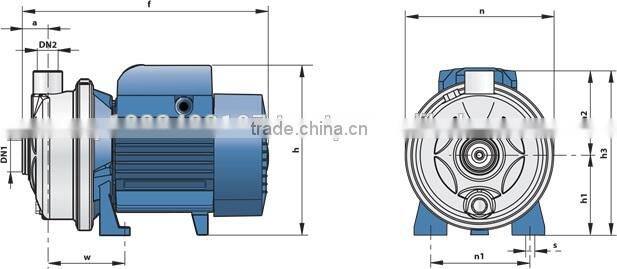

Dimensions:
| Model | AL-RED 135m |
| Ports (DN1) | 1¼" |
| Ports (DN2) | 1" |
| Dimensions (mm) ---a | 31 |
| Dimensions (mm) ---f | 296 |
| Dimensions (mm) ---h | 206 |
| Dimensions (mm) ---h1 | 97 |
| Dimensions (mm) ---h2 | 103 |
| Dimensions (mm) ---h3 | 200 |
| Dimensions (mm) ---n | 186 |
| Dimensions (mm) ---n1 | 135 |
| Dimensions (mm) ---w | 73.5 |
| Dimensions (mm) ---s | 10 |
