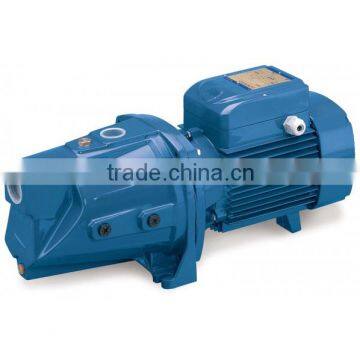

"Jet" Self-Priming Pump JSWm3BH
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Italy
Brand Name:
Pedrollo
Model Number:
JSW3BH
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Italy
Brand Name
Pedrollo
Model Number
JSW3BH
Usage
Water
Power
Electric
Fuel
Other, Motor
Application
Other, Clean Water
Specifications
1. Original Pedrollo Pump.2. High Performance.
3. High Efficiency.
4. Made in Italy.
5. C/W Motor.
Performance Range:
- Flow rate up to 160L/min (9.6m³/h).
- Head up to 96m.
Installation and Use:
- Suitable for use with clean water and liquids that are not chemically aggressive towards the materials fro which the pump is made.
- The self-priming JSW pumps are designed to pump water even in cases where air is present.
- As a result of their reliability and the fact that they are easy to use, they are recommended for use in domestic, civil and industrial applications such as the districution of water in combination with pressure sets, and for the irrigation of gardens and allotments, etc.
- The pump should be installed in an encolsed environment, or at least sheltered from inclement weather.
| Model | JSWm3BH |
| Size (Discharge) | 1-¼" x 1" |
| Power (Kw) | 1.5 Kw |
| Phase | 1 |
| Performance--Flow (L/min) | 10 ~ 80 |
| Performance--Head (Meter) | 70 ~ 39 |
Electric Motor : JSWm > Single-phase 230V - 50Hz with thermal overload protector built-in to the winding.

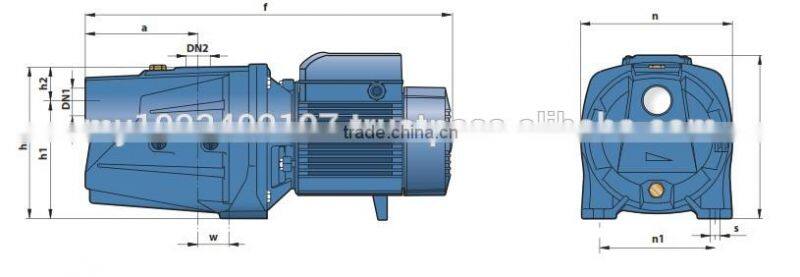

Dimensions:
| Model | JSWm3BH |
| Ports (DN1) | 1¼" |
| Ports (DN2) | 1" |
| Dimensions (mm) ---a | 155 |
| Dimensions (mm) ---f | 530 |
| Dimensions (mm) ---h | 242 |
| Dimensions (mm) ---h1 | 165 |
| Dimensions (mm) ---h2 | 43 |
| Dimensions (mm) ---h3 | 208 |
| Dimensions (mm) ---n | 206 |
| Dimensions (mm) ---n1 | 164 |
| Dimensions (mm) ---w | 30 |
| Dimensions (mm) ---s | 11 |
