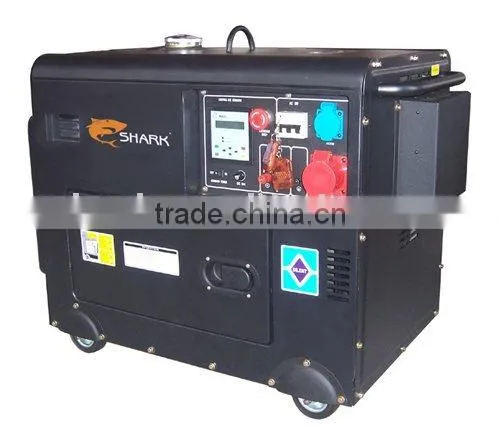

Silent Diesel Generator Digital Type

Name: Silent Diesel Generator Digital Type
Brand: SHARK
SKU: 133028693
Availability: InStock

Negotiable MOQ: 20 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

SHARK

Model Number:

DG6500LDE3-digital

Changzhou Shark Power Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name SHARK

Model Number DG6500LDE3-digital

Output Type AC Three Phase

Speed 3000rpm

Frequency 50Hz

Rated Power 4.6kw

Rated Voltage 220,220/380V

Rated Current 20.91/12.11A

Specifications

Silent diesel generator with digital panel, 3 phase, with ATS

Silent diesel generator with digital panel, 3 phase, with ATS:

Specifications:

DG6500LDE3-Digital panel

Rated frequency [Hz]	50 60
Rated voltage [V]	230/380V
Rated current [A]	22.7/13.1
Rated output power [KVA]	4.5 5.0
Max output power [KVA]	5.0 5.5
Rated rotation speed [rpm]	3000 3600
DC output	12V8.3A
Power factor [cos]	1.0
Phase number	Three phase
Noise level [dB(A)@7m]	70-74
Overall dimension (LxWxH) [mm ]	950x565x770
Dry weight [kg]	160 (220)
Structure type	Silent type
Excitation mode	Self-excitation brushless
Engine model	SH186FAE
Engine type	Single cylinder, 4-stroke, air-cooled, direct injection, diesel engine
Displacemen [ml (cu.in)]	418 (25.51)
Compression ratio	19:1
Rated power [KW (Hp)/rpm]	6.7 (9.00)/3600
Starting system	Electric starter
Rotation dircetion (View from flywheel)	Clockwise
Fuel	0# (summer) or -10# (winter) light diesel oil
Lube	SAE10W30 (above CC grade)
Low oil pressure alert system	With
Battery	With 12V-32Ah
