5KW Silent Diesel Generator Set (To North Amercia)

Name: 5KW Silent Diesel Generator Set (To North Amercia)
Brand: Shark
SKU: 133028705
Availability: InStock

US$ 200 - 800 MOQ: 5 Sets

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

Shark

Model Number:

DG6500LDE

Changzhou Shark Power Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name Shark

Model Number DG6500LDE

Output Type AC Single Phase

Speed 3600 R.P.M

Frequency 60HZ

Rated Power 5W

Rated Voltage 120/240V

Specifications

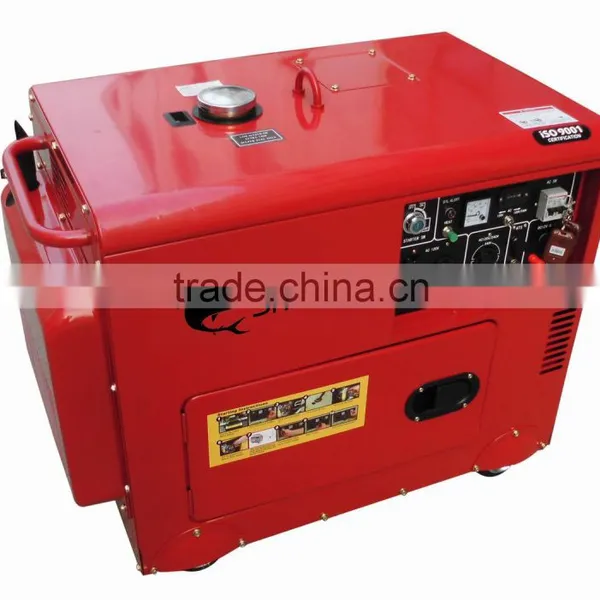

5KVA silent diesel generator set
To North America
With EPA certificate
With remote control and ATS output

Model: DG6500LDE

Specifications:

Rated frequency [Hz]	60
Rated voltage [V]	120/240
Rated current [A]	19.57
Rated output power [KVA]	5.0
Max output power [KVA]	5.5
Rated rotation speed [rpm]	3600
DC output	12V 8.3A
Power factor [cos]	1.0
Phase number	Single hase
Noise level [dB(A)@7m]	70-74
Overall dimension (LxWxH) [mm ]	950x565x750
Dry weight [kg]	160(170)
Structure type	Silent type
Excitation mode	Self-excitation brushless
Engine model	SH186FAE
Engine type	Single cylinder, 4-stroke, air-cooled, direct injection, diesel engine
Displacemen [ml (cu.in)]	418 (25.51)
Compression ratio	19:1
Rated power [KW (Hp)/rpm]	6.5(8.7)3600
Starting system	Electric starter
Rotation dircetion (View from flywheel)	Clockwise
Fuel	0# (summer) or -10# (winter) light diesel oil
Lube	SAE10W30 (above CC grade)
Low oil pressure alert system	With
Battery	With 12V-36Ah
