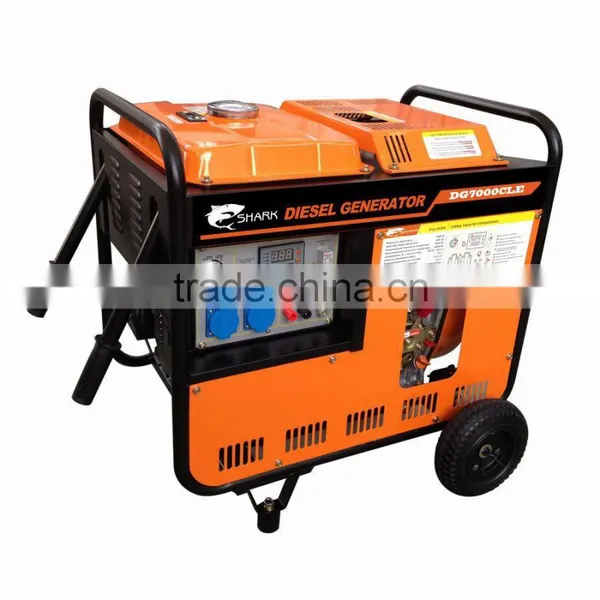

5.2KW Diesel Generator (fulled Closed Type)

Name: 5.2KW Diesel Generator (fulled Closed Type)
Brand: Shark or Customer brand
SKU: 133028709
Availability: InStock

US$ 200 - 800 MOQ: 5 Sets

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

Shark or Customer brand

Model Number:

DG7000CLE

Changzhou Shark Power Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name Shark or Customer brand

Model Number DG7000CLE

Output Type AC Single Phase

Speed 3000/3600

Frequency 50/60Hz

Rated Power 5.2/5.5KVA

Rated Voltage 110,115,120,220,230,240,110/220,115/230,120/240

Specifications

5.2KVA diesel generator
Fully closed type for a better look
Digital panel, easy for you to read the parameters

Model	DG7000CLE
Rated frequency[Hz]	50 60
Rated voltage[V]	110,115,120,220,230,240,110/220,115/230,120/240
Rated output power[KVA]	5.2 5.5
Max output power[KVA]	5.5 5.8
Rated rotation speed[rpm]	3000 3600
Power factor[cosΦ]	1
Phase number	Single phase
Noise level[db(A)@7m]	75-79
Excitation mode	Self-exciation brushless or brush
Engine model	SH188FB/E
Engine Type	Single cylinder,4-stroke,air-cooled,direct injection,diesel engine
Displacement[ml(cu.in)]	456(27.83)
Compression ratio	19:1
Rated output power[KW(Hp)/rpm]	6.8(9.2)/3000 7.5(10.0)/3600
Starting system	CL: recoil starter E: Electric starter
Rotation direction(Viewed from flywheel)	Closkwise
Fuel	0#(summer) - 10#(winter)-20#(chillness) diesel
Lube	CD grade or SAE10W-30, 15W-40
Low oil pressure alert system	With
Overall dimension(LxWxH)[mm]	740x500x670
Dry weight[kg]	98 recoil 102 electric
