effective Drum Separator for wheat cleaning
- 100 Set / Sets per Month
- T/T
- Automatic Maize Flour Mill Wheat Corn Flour Milling Machine Maize Mill
- Automatic 20tpd Wheat Maize Corn Semolina Rice Roller Flour Griding Machine Wheat Flour Mill Milling Machine
- Wheat Rice Grain Grinder Flour Mill Milling Machine For Home Use
- Widely Used Wheat Rice Grain Grinder Flour Mill Milling Machine
- Small Scale Corn Grinder Mill Machine Grain Crusher Mill Making Machine
- High Quality Grinding Mill Machine for Maize Wheat Soybean
Product Details
Condition: | New | Place of Origin: | Hebei, China | Brand Name: | Pingle |
Model Number: | TSCY100*150 | Production Capacity: | 30-40T/h | Voltage: | 380V |
Power(W): | 2.2kw | Dimension(L*W*H): | 2780*1180*2110 | Certification: | ISO9001 ISO2000 |
Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1. Sturdy Construction2. Convenient Maintenance
3. Reasonable Design
4. Low Noise
2014 New design low price hebei pingle maize starch
production plant
Product Description
1. Display:
Intake Section — Silo— First Cleaning Section—Conditioning Silo
—Second Cleaning Section— Milling Section— Packing Section
2. Features of hebei pingle maize starch production plant :
1) High efficiency cleaning equipment, including aspiration seperator, vibro sparator,destoner,
dempener,disc cylinder selector.
2)Advanced milling equipment, including pneumatic control roller mill, electric control roller mill,
square plansifter, purifier.
3) High precision packing machine from 5kg to 50kg.
3. Pictures for client reference:
4.Specifications:

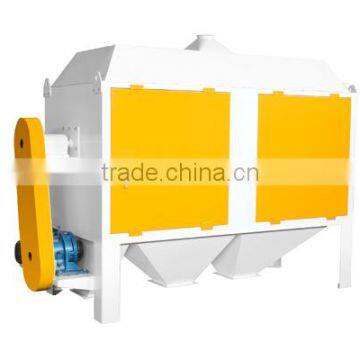

Drum Separator
The TSCY drum separator is a universal grain pre-cleaning device that is commonly seen in grain mills, feed manufacturing plants and many other industries. The round screening drum rotates continuously to effectively remove coarse and fine impurities from grains, such as stones, bricks, ropes, wood chips, soil blocks, pieces of straw, etc. In this way, the downstream processing and conveying machines are well protected from being blocked or damaged.
Features1. The screening drum has a horizontal arm, and this drum is divided into an inlet cylinder and an outlet cylinder that have different hole sizes. So, the separation efficiency is extremely high. For example, at least 99 percent of coarse impurities are removed from the original grain with the help of this drum separator.
2. The backward feeding method is applied, and the discharge part is equipped with a spiral to prolong the actual processing length, thus improving the final result. Moreover, plump grains won't be mistakenly classified into coarse impurities and discharged with the impurities.
3. During screening, fiber and straw are in a bulk shape and are directed to the outlet by a guide screw. There is a scraper brush inside the drum, and it could clean the impurities in a reliable and automatic way. In addition, it is very convenient to change the screen or implement maintenance work.
4. This drum separator has a compact structure, and the low power running cuts down the operation cost to a large extent.
Technical Parameters
Model | TSCY63 | TSCY80 |
Drum diameter (mm) | 630 | 800 |
Drum length (mm) | 840 | 950 |
Drum speed (r/min) | 23 | 18 |
Air requirement (m 3 /h) | 640 | 720 |
Motor power (kW) | 0.55 | 0.75 |
Throughput (t/h) | 10-15 | 25-30 |
Overall dimensions (L×W×H, mm) | 1780×880×1260 | 2080×1000×1440 |
6.More products for you to choose:
Company Information
1.About us
Professional manufacturer specialized in grain processing project manufacturing
and installation with more than 20 years experience.Main products includes wheat
flour milling machine and maize milling machine. Our products have been exported
to 32 countries and regions such as Egypt, Ethiopia, India, Iran, Vietnam, Brazil etc.
The international Trade Division sets up sales dep., technical engineer dep., after sales
service dep.and documentation and logistical dep., which can manage engineer designing,
installation and service with professional staff.
2.Why chooes us
---Advanced equipments,good quality
---Professional skills,all-related services
---High quality and efficiency technology
---Complete production line,quick delivery
---20 years experience in flour mill industry
---Best solution for wheat and maize processing syste
---The biggest flour mill machine manufacturer and exporter in China
---Exporting to more than 40 countries with a presence world wide
3.Factory Tour
4.Participation in exhibitions
5.Our Market
6.Certification
