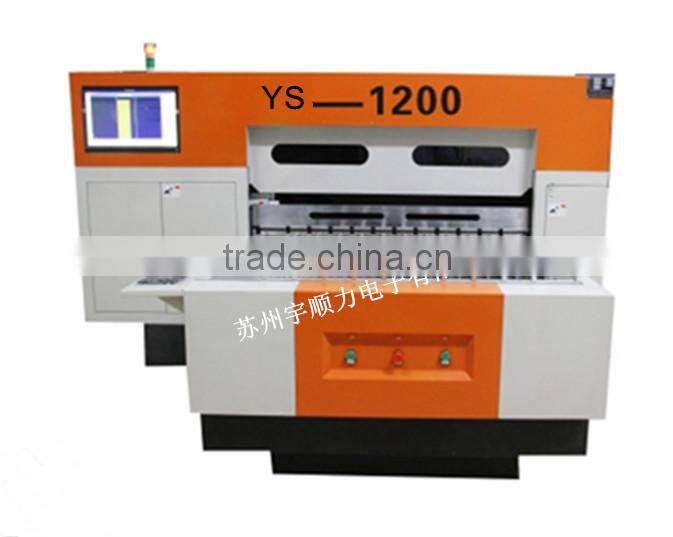

CNC V-cut machine  for PCB board  ,v cut scoring machine YSVC-450C

Details

Product Name: CNC V-CUT machine table

Model: YSVC-450C (680mm * 630mm)

Products:

1.Yush series of precision CNC V-CUT machine design features:

According to PCB / MCPCB automatic V-CUT machine characteristics involving multiple disciplines to build PCB / MCPCB automatic V-CUT machine digital prototyping system that uses multidisciplinary joint design and simulation in the design phase, the product's features and performance for checking and testing, the performance of the products meet design specifications, resolve conflicts and interference between the various disciplines to achieve optimal coupling, which will greatly improve the product quality and system performance.

All of the base of the machine using the "Tarzan green" or "Jinan Green" granite, and the experience of stress relieving, rigidity, good stability.

X Y Z axis positioning driven by imported high-performance AC servo motor drive, to achieve high-speed high-precision positioning, effectively increase productivity.

Precision Transmission and guiding system: imported precision linear guide and precision ball screw, high precision drive, location.

With dagger functions for complex PCB / MCPCB jump knife processing.

Can be performed with high precision machining for various sizes of V-groove board 0.4 ~ 3.2mm Bohou board

The first knife into the center of the nail PIN 5mm above the minimum reserve

Minimum knife grinding diameter 114MM, the highest tool life

Use WINDOWS XP Chinese operation interface, as data processing and parts management.

Suitable for single and double sided, multilayer, aluminum plate board surface shape before use.

V-CUT during processing, with automatic gauge control, residual thickness detecting function.

apan imported high-speed spindle motor, V groove cut no edges, longer tool life.

Use EG intelligent control systems, uninterrupted, stable operation, easy easy to failure, maintenance.

Knives, knife deep graphical numerical control, high precision, easy to learn, easy to set up the whole.

AB has entered the information while artificial steering, once processed.

Can (optional) highly efficient dust collection system, the plant can be kept clean environment.

2. Specifications:

Specification Parameters

Machine size 1560 × 2100 × 1585mm

Working height 920 ± 50mm

Machine weight 3000kg

Two-phase AC power requirements 220V, 50 / 60HZ

Power 3.0KW

Air pressure 5kg / cm2

Job board (Model: YSVC-450C) 680mm * 630mm (max) & 110mm * 110mm (min)

Processing thickness 0.3 ~ 3.2mm

Tool specifications diameter: φ120mm inner diameter: φ25.4mm

Positioning pin diameter 2MM (6)

Article V cable from PIN hole minimum spacing 5MM

2mm thickness Tool

V groove residual thickness accuracy ± 2mil

V groove pitch accuracy ± 2mil

V groove parallel precision ± 2mil

Tool speed 6,000R.P.M.

Cutting speed 0 ~ 50m / min

Displacement displacement speed can reach speeds of up to 75M / MIN

Optional dust collector 2in pipe 3.5KW
