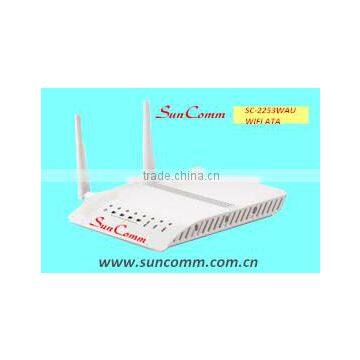

SunComm SC-2253Wau with 2FXS, USB port, WIFI AP WIFI ATA
Feature:
- 2.4G 300Mbps Wi-Fi: Two external antennas to deliver the best wireless signal, connect up to 16 devices for SOHO or HOME use
- High Speed: Downstream rates up to 24Mbps and upstream rates up to 3.5Mbps
- 4-Port Switch: Extent LAN to more devices and further distance
- VoIP function: 2 FXS ports helps users save phone bills by making phone calls over the Internet, with easier VoIP telephony management -- caller ID, call waiting/holding/forwarding
- Multi-function USB2.0 Port: Printers, files and media can be shared with computer or using the device's FTP server.(optional)
- WPS Button: Instant connection to wireless network safely
- TR-069: Manage settings and updates remotely from any end equipment
- Compatibility: Interoperable with all major DSLAM equipments
- QOS : Quality of Service control for traffic prioritization and bandwidth management
- Simple set up with GUI: GUI makes installation easier and faster
Specifications
|
Operation Mode: |
|
WIFI ATA, 4 Port Switch, AP |
|
|
|
|||
|
Speed: |
|
802.11n speed up to 300Mbps Rate Adaptive: 32 Kbps steps |
|
|
Frequency Range: |
|
2,4Ghz-2,4835Hhz |
|
|
Standard: |
|
IEEE 802.11b/g/n |
Full-rate ANSI T1.413 issue 2 |
|
|
|||
|
|
ITU-T G.992.1 /2/3/4/5 |
ITU-T G.994.1 (G.hs) |
|
|
|
|
||
|
WAN Connection Type |
|
DHCP /Static IP/PPPoE, PPPoA, Bridge, IPoA, Multiple WAN |
|
|
|
|
Multi-SSID |
|
|
|
|
Access Control List |
|
|
Wireless Features: |
|
WDS and WMM |
|
|
|
|
Wireless operating range: Indoor up to 100m, Outdoor up to 300m |
|
|
|
|
Wireless transmit power: <20dBm |
|
|
|
HARDWARE |
|
|
|
Physical Interface: |
|
4 *FE LAN, 1*DSL RJ11 port,1*USB2.0 port,2*FXS port |
Buttons: |
|
Power /WPS /Reset |
Power |
|
Input: 100-240V AC,50Hz |
LED Indicators: |
|
Power,LAN1/2/3/4,WLAN,DSL,WPS,VoIP1/2 |
Antenna: |
|
Two external antenna, MIMO 3dBi (default) |
Processor |
|
BCM63283 |
Memory |
|
8MB flash and 64MB RAM |
USB sharing: |
|
Samba(Storage)/FTP Server/Media Server/Printer Server (optional) |
We also have CE Certifications for SC-368W, SC-9039-3G, SC-396-GP3G/ SC-393-GP3G, SC-9068-GH3G, SCG-31/SCG-31P, SCG-4Qe/ SCG-8Qe, SC-9029-RA, SC-9079-3G
Based on the professional team members involving in computer & communication since 2001, SunComm supplies Corded and Cordless phones; Consumer, Communication & Wireless Networking devices, including but not limited to GSM/3G VoIP Terminal, GSM/3G Gateway, Fixed Wireless Terminal (FWT/FCT), Fixed Wireless Phone (FWP/FCP), 3G WCDMA Cordless Phone, Cellular/Telular Phone, 4G LTE Outdoor Indoor CPE, WIFI IP Phone, Wifi ATA, Wifi AP Router etc.
More than 15 years’ experience in OEM/ ODM manufacturing, Marketing & exporting, which ensure SunComm can always follow closely the latest technology and match market requirement. Our markets include USA, Latin American, Europe, South East Asia & Middle East Asia, Africa etc.
SunComm believe that cooperation and creation is the only way toward the win-win success with customers. Most products have been registered in target markets by SunComm or customers locally.
We’ve established great communications & cooperation with many business partners in the world. SunComm Technology Co., Ltd. was founded in Taiwan in 2001. SunComm (SHENZHEN) TECHNOLOGY CO., LTD. was established in Shenzhen. We have provided effective service and technical support from Taiwan and China. It is our solid mission to dedicate ourselves to the Highest Quality, Effective Service and Cost Saving Products to business partner to establish a reliable and fruitful long-term cooperation.
|
.tw Tel: +886-2-8226-9569 #115 14F-8, No. 2, Jian-ba Rd., Zhong-he Dist., New Taipei City, Taiwan 23511 |
|
