Help CenterSunComm SC-4363-3GR Hot Sale Wiith Sim Card 3G WiFi AP Routers
Related Products
-
SunComm SC-4363-3GR High Quality Mini Usb 3G AP Router With Sim CardUS$ 1 - 90MOQ: 1000 Units -
SunComm SC-4363-3GR 3G Wireless AP Router With Sim Card SlotUS$ 1 - 90MOQ: 1000 Units
-
SunComm SC-4363-3GR 3G WiFi AP Router With Sim CardUS$ 1 - 90MOQ: 1000 Units
-
Hot Sale SC-4363-3GR Mini 3G WiFi Router With Sim Card SlotUS$ 1 - 90MOQ: 1000 Units
-
SC-4363-3GR 3G/2G Turn WLAN Access Internet and Power Bank 3G WiFi RouterUS$ 1 - 90MOQ: 1000 Units

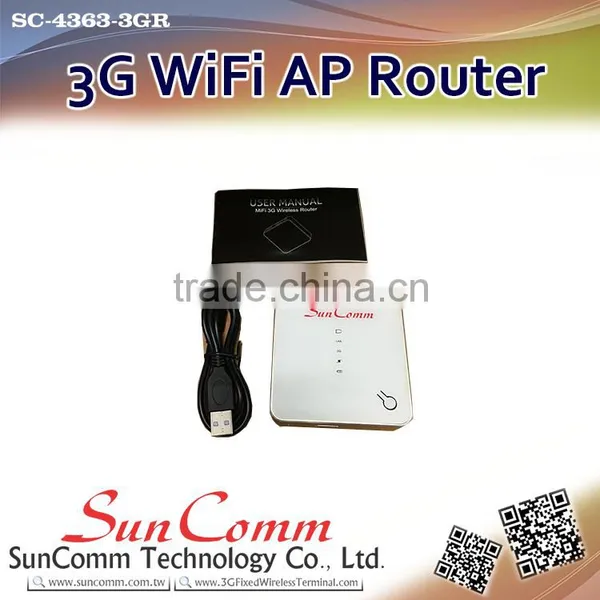

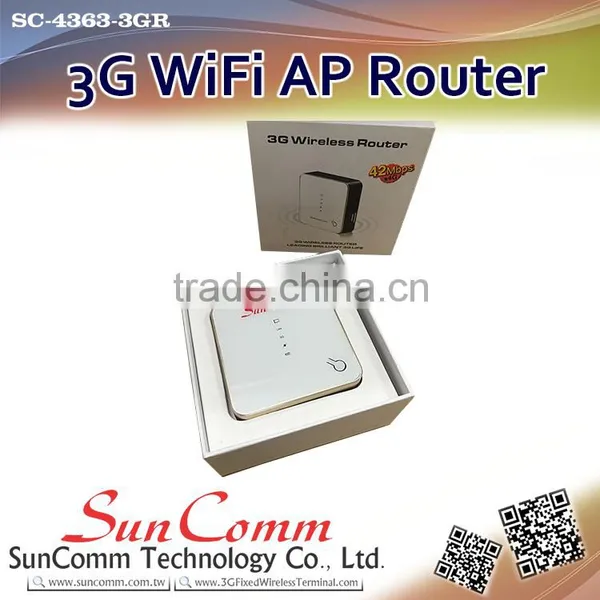

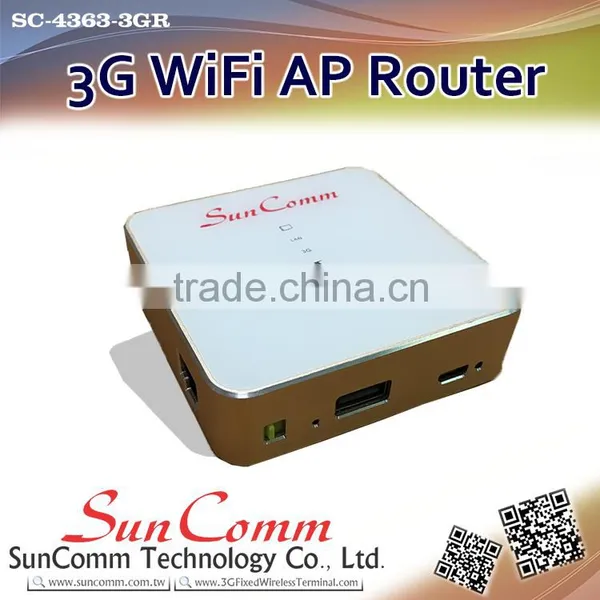

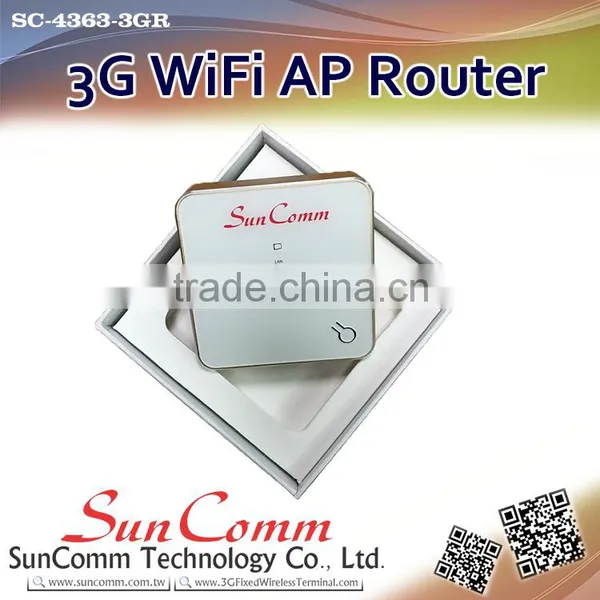

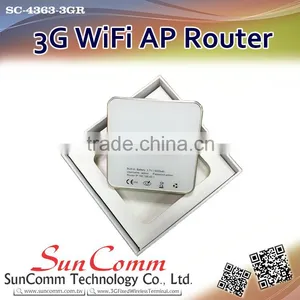

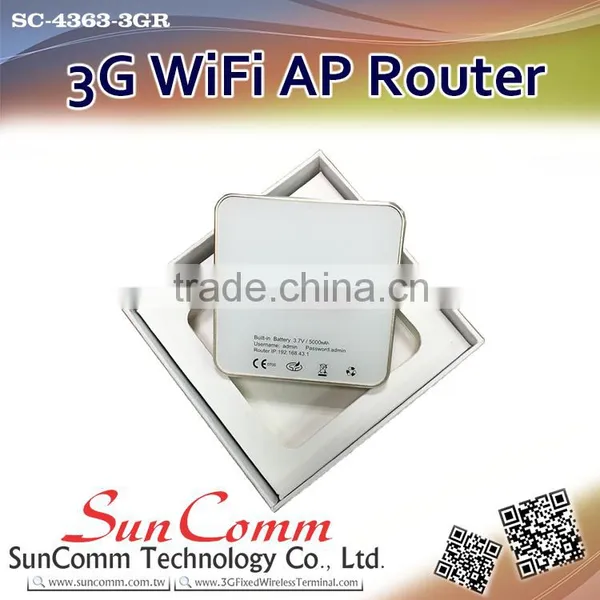

SunComm SC-4363-3GR hot sale wiith sim card 3G WiFi AP routers
Supported |
• IEEE802.11 b/g/n |
• Dual Cell High-Speed Packet Access Plus (DC-HSPA+) | |
• High-Speed Packet Access Plus (HSPA+) | |
• Universal Mobile Telecommunications System (UMTS) | |
• Enhanced data rates for global evolution (EDGE) | |
• General packet radio service (GPRS) | |
|
• Global system for mobile communications (GSM)
| |
Provided |
• DC-HSPA+ packet data service |
• HSPA+ packet data service | |
• HSPA packet data service | |
• HSUPA packet data service | |
• HSPA/UMTS packet data service | |
• EDGE/GPRS packet data service | |
• UMTS/GSM Short Message Service (SMS) over SGs |
Features:
Main |
• Support 3G/2G turn WLAN access Internet |
• Support LAN turn WLAN access Internet | |
|
• Support HSPA+/UMTSBand1(2100)/Band8(900),GSM850/900/ 1800/1900MHz | |
• DC-HSPA+ data service of up to 43.2Mbps | |
• HSPA+ data service of up to 21.6Mbps(64QAM) | |
• HSPA data service of up to 14.4Mbps | |
• HSUPA data service of up to 5.76Mbps | |
• UMTS PS domain data service of up to 384kbps | |
|
• EDGE packet data service of up to 236.8kbps on downlink with MSC12 | |
|
• GPRS packet data service of up to 85.6kbps on downlink with MSC12 | |
• WALN 802.11b up to 11Mbit/s | |
• WALN 802.11g up to 54Mbit/s | |
• WALN 802.11n up to 150Mbit/s | |
• UMTS/GSM SMS over SGs service | |
• Automatic installation | |
• MicroSD card Slot(up to 32GB) | |
|
• Windows XP SP3, Windows Vista SP1/SP2, Windows 7, Windows 8(Does not support Windows RT), Windows 8.1; Mac OS x 10.7,10.8 and 10.9 with latest upgrades; Linux OS and Android OS |
Technical Specifications--Hardware | |
Technical |
• IEEE802.11 b/g/n |
• WCDMA Rel ‘99 plus Rel 5 HSDPA, Rel 6 HSUPA, Rel 7 | |
• HSPA+(cat 14),Rel 8 DC-HSPA+(cat 24) | |
• GSM/GPRS/EDGE Rel 99 | |
Operating |
• WCDMA/HSPA+ /DC-HSPA+2100MHz: 1920MHz~1980MHz(Uplink)/2110MHz~2170MHz(Downlink) |
|
• WCDMA/HSPA+ /DC-HSPA+900MHz:880MHz~915MHz(Uplink) /925MHz~960MHz(Downlink) | |
|
• GSM/GPRS/EDGE 850MHz:824MHz~849MHz(Uplink) /869MHz~894MHz(Downlink) | |
|
• GSM/GPRS/EDGE 900MHz:880MHz~915MHz(Uplink) /925MHz~960MHz(Downlink) | |
|
• GSM/GPRS/EDGE 1800MHz:1710MHz~1785MHz(Uplink) /1805MHz~1880MHz(Downlink) | |
|
• GSM/GPRS/EDGE 1900MHz:1850MHz~1910MHz(Uplink) /1930MHz~1990MHz(Downlink) | |
• WLAN 2.4GHz:2400MHz~2483.5MHz | |
Display |
• LED display the status of the router |
Antenna |
• 3G/2G:Internal antenna |
• WLAN:Internal antenna | |
• Diversity:support,internal antenna | |
Maximum |
• WCDMA/HSPA+/DC-HSPA+ 2100/900MHz: Power Class 3 (24dBm) |
• GSM/GPRS 900MHz/850MHz: Power Class 4 (33dBm) | |
• GSM/GPRS 1800MHz/1900MHz: Power Class 1 (30dBm) | |
• EDGE 850MHz/900MHz:Power Class E2 (27dBm) | |
• EDGE 1800MHz/1900MHz: Power Class E2 (26dBm) | |
• WLAN:802.11g: 11 (+/-3)dBm | |
Static receiver |
• WLAN 2.4GHz:Compliant with IEEE Std 802.11nTM-2009 |
|
• WCDMA/HSPA/HSPA+ /DC-HSPA+2100/900MHz: Compliant with 3GPP TS 25.101(R8) | |
|
• GSM/GPRS/EDGE 850/900/1800/1900MHz: Compliant with 3GPP TS 05.05 (R99) | |
Power supply |
• Battery ,build-in 3.7V/5200mAh |
• 5V/1000mA | |
Working Time |
• 12H (3G data service) |
Standby Time |
•30H |
Charging Time |
• About 6H |
Dimensions |
• 76mm x 76mm x20mm (LxWxH) |
Weight |
• About 165g |
Temperature |
• Operating: 0℃ to +40℃ |
Humidity |
• 5% to 95% |
|
|
We also have CE Certifications for SC-368W, SC-9039-3G, SC-396-GP3G/ SC-393-GP3G, SC-9068-GH3G, SCG-31/SCG-31P, SCG-4Qe/ SCG-8Qe, SC-9029-RA, SC-9079-3G
Based on the professional team members involving in computer & communication since 2001, SunComm supplies Corded and Cordless phones; Consumer, Communication & Wireless Networking devices, including but not limited to GSM/3G VoIP Terminal, GSM/3G Gateway, Fixed Wireless Terminal (FWT/FCT), Fixed Wireless Phone (FWP/FCP), 3G WCDMA Cordless Phone, Cellular/Telular Phone, 4G LTE Outdoor Indoor CPE, WIFI IP Phone, Wifi ATA, Wifi AP Router etc.
More than 15 years’ experience in OEM/ ODM manufacturing, Marketing & exporting, which ensure SunComm can always follow closely the latest technology and match market requirement. Our markets include USA, Latin American, Europe, South East Asia & Middle East Asia, Africa etc.
SunComm believe that cooperation and creation is the only way toward the win-win success with customers. Most products have been registered in target markets by SunComm or customers locally.
We’ve established great communications & cooperation with many business partners in the world. SunComm Technology Co., Ltd. was founded in Taiwan in 2001. SunComm (SHENZHEN) TECHNOLOGY CO., LTD. was established in Shenzhen. We have provided effective service and technical support from Taiwan and China. It is our solid mission to dedicate ourselves to the Highest Quality, Effective Service and Cost Saving Products to business partner to establish a reliable and fruitful long-term cooperation.
|
.tw Tel: +886-2-8226-9569 #115 14F-8, No. 2, Jian-ba Rd., Zhong-he Dist., New Taipei City, Taiwan 23511 |
|
