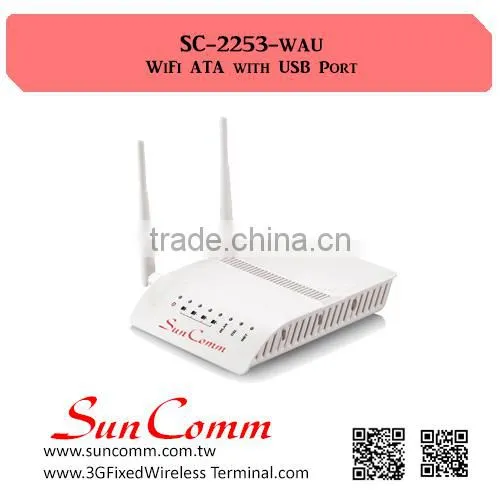

SC-2253-WAU With 2FXS, USB Port, WIFI, 802.11n WIFI ATA

SC-2253-WAU With 2FXS, USB Port, WIFI, 802.11n WIFI ATA thumbnail-1
SC-2253-WAU With 2FXS, USB Port, WIFI, 802.11n WIFI ATA photo-1
US$ 1 - 41 MOQ: 5000 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SunComm
Model Number:
SC-2253-WAU
Contact Supplier Request Quote Chat Now
Suncomm Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/ Taipei
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name SunComm
Model Number SC-2253-WAU
Type Other, WiFi ATA

SC-2253-WAU with 2FXS, USB port, WIFI, 802.11n WIFI ATA

SC-2253-WAU with 2FXS, USB port, WIFI, 802.11n WIFI ATA

Product Description


Feature:

  • 2.4G 300Mbps Wi-Fi:   Two external antennas to deliver the best wireless signal, connect up to 16 devices for SOHO or HOME use
  • High Speed:  Downstream rates up to 24Mbps and upstream rates up to 3.5Mbps
  • 4-Port Switch:  Extent LAN to more devices and further distance
  • VoIP function:  2 FXS ports helps users save phone bills by making phone calls over the Internet, with easier VoIP telephony management -- caller ID, call waiting/holding/forwarding
  • Multi-function USB2.0 Port:  Printers, files and media can be shared with computer or using the device'sFTPserver.(optional)
  • WPS Button:  Instant connection to wireless network safely
  • TR-069:  Manage settings and updates remotely from any end equipment
  • Compatibility:  Interoperable with all major DSLAM equipments
  • QOS:  Quality of Service control for tra­ffic prioritization and bandwidth management
  • Simple set up with GUI:  GUI makes installation easier and faster



Specifications

Operation Mode:

WIFI ATA, 4 Port Switch, AP

Speed:

802.11n speed up to 300Mbps  Rate Adaptive:  32 Kbps steps

Frequency Range:

2,4Ghz-2,4835Hhz

Standard:

IEEE802.11b/g/n         Full-rate ANSI T1.413 issue 2

ITU-T G.992.1 /2/3/4/5   ITU-T G.994.1 (G.hs)

WAN Connection Type

DHCP /Static IP/PPPoE, PPPoA, Bridge, IPoA, Multiple WAN

Wireless Features:

Multi-SSID

Access Control List

WDS and WMM

Wireless operating range: Indoor up to 100m, Outdoor up to 300m

Wireless transmit power: <20dBm



Software

VoIP Features:

Call Waiting/Forwarding/Transferring/Block/Barring

Anonymous Calling /Call Blocking

Three Way Conference

DND (Do Not Disturb)/CNG (Comfort Noise Generation)/DTMF Detection and Generation/Silence Suppression

MWI

SIP (RFC 3261)/SDP (RFC 2327)/RTP (RFC 1889)/RTCP (RFC 1890)

Codec: G.711, G.723.1, G.726, G.729.A, G.722, G.722.2

Echo Cancellation: G.168

VAD (Voice Activity Detection)

Multiple SIP

T.38 Fax Relay

Network Protocols

Static route, Dynamic RIPv1, RIPv2 support

DMZ support

NAT Application Level Gateway for popular applications

DHCP Server/Relay/client

DNS Relay Agent/DDNS support

PPP Auto Reconnect on WAN Access/PPP

IGMP v.1/v.2 snooping and IGMP Multicast

Security Support:

64/128-bit WEP/WPA-PSK/WPA2-PSK/TKIP/AES

Parental control

PAP/CHAP for PPP mode

NAT forFirewall

SPI Firewall

2 Level (User/Admin) Authentication to Router

IP and MAC Filtering

Management Support:

Web Based GUI

FTP /HTTP/Telnet/TR069 /SNMP v1/2c

Command Line Interface

Diagnostic Test

Firmware upgrade-able

Supports Remote Access Control

ATM, PTM and PPP Features

RFC2684 /2364 /2516 /2225/1577 / 1483/2684

ATM Forum UNI 3.1/4.0, ATM Adaptation Layer Type 5-AAL5

VPI Range (0-255) and VCI range (32-65535)

UBR, CBR, VBR-rt, VBR-nrt

F4/F5 OAM Loopback

Supports 16 PVCs

VPN:

IPSecClient/PPTP/L2TP pass through

Port Forwarding:

Virtual server, Port Triggering, DMZ, ALG, UPnP

Transmit Power:

<20dBm(EIRP)

Dynamic DNS:

DynDns, TZO

DHCP:

Server, Client, DHCP Client List
Address Reservation, DHCP relay

QoS:

Priority Queuing

Classification Rules

802.1p

IPV6:

IPv4 and IPv6 dual stack







HARDWARE

Physical Interface:

4 *FE LAN, 1*DSL RJ11 port,1*USB2.0 port,2*FXS port

Buttons:

Power /WPS /Reset

Power

Input: 100-240V AC,50Hz

LED Indicators:

Power,LAN1/2/3/4,WLAN,DSL,WPS,VoIP1/2

Antenna:

Two external antenna, MIMO 3dBi (default)

Processor

BCM63283

Memory

8MB flash and 64MB RAM

USB sharing:

Samba(Storage)/FTP Server/Media Server/Printer Server (optional)





OTHERS

Operation System:

Windows 7,8,XP, VISTA/Macintosh/Linux

Package Content:

Power Adapter x 1,   InstallationManual x 1,    RJ11 cable x 1

RJ45 cable x 1,    External splitter x 1

Environment:

Operating Temperature:  0°C~40°C(32~104℉)

Storage Temperature: -30°C~60°C(-22~140℉)

Operating Humidity:  10%~95% non-condensing

Storage Humidity:  5%~90% non-condensing

Dimension:

6.89*6.69*1.38 in (175*170*35mm)

Weight:

1.1 lbs (500 g)

Warranty

One year
