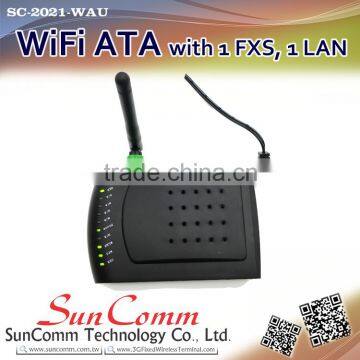

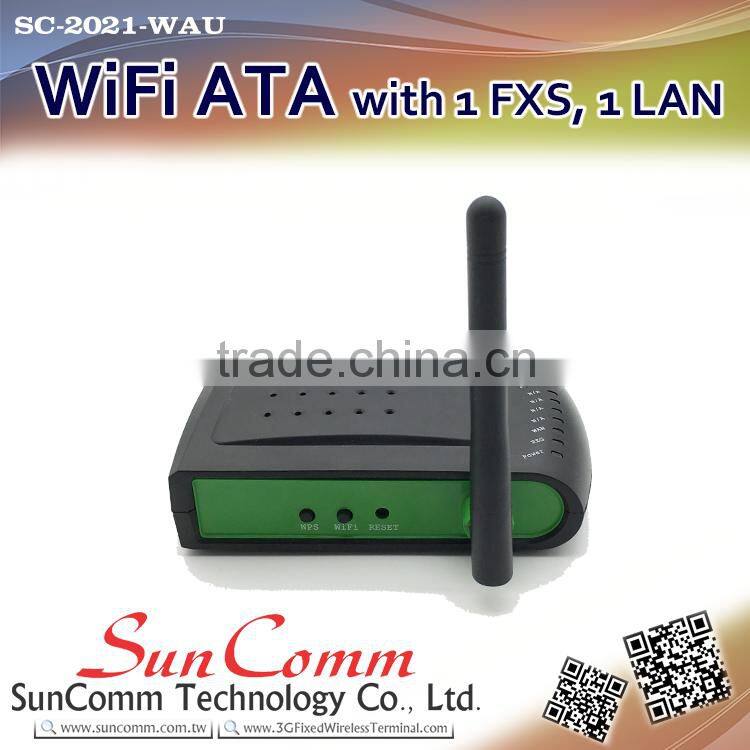

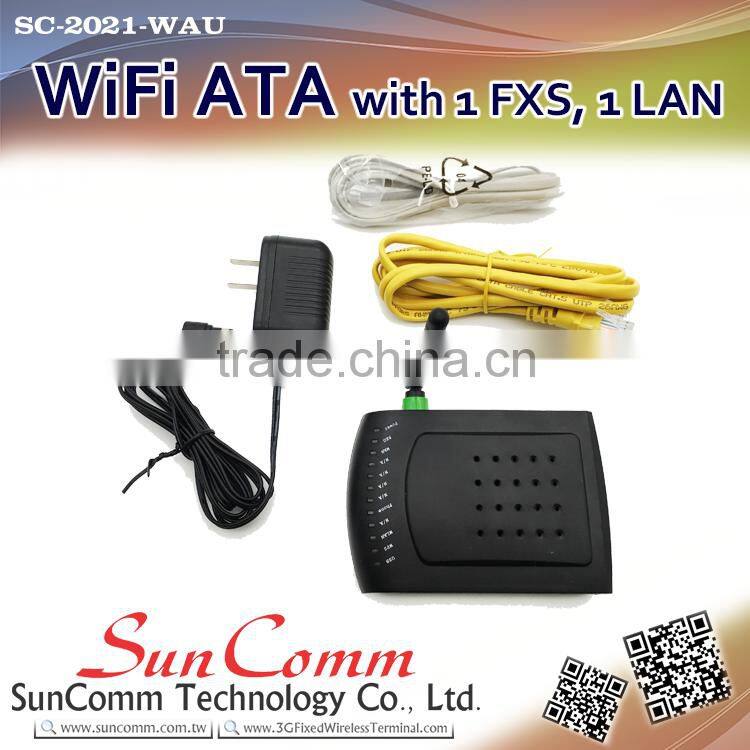

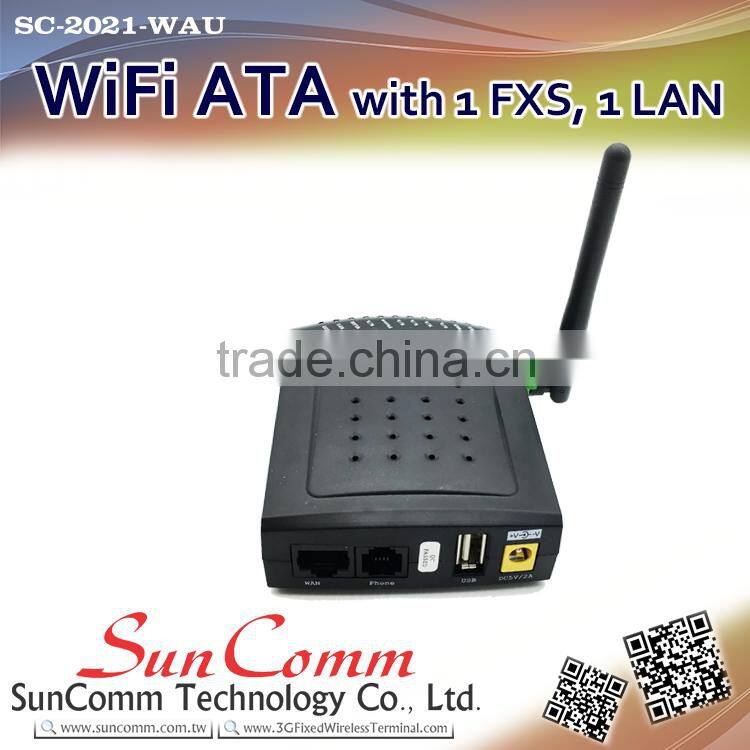

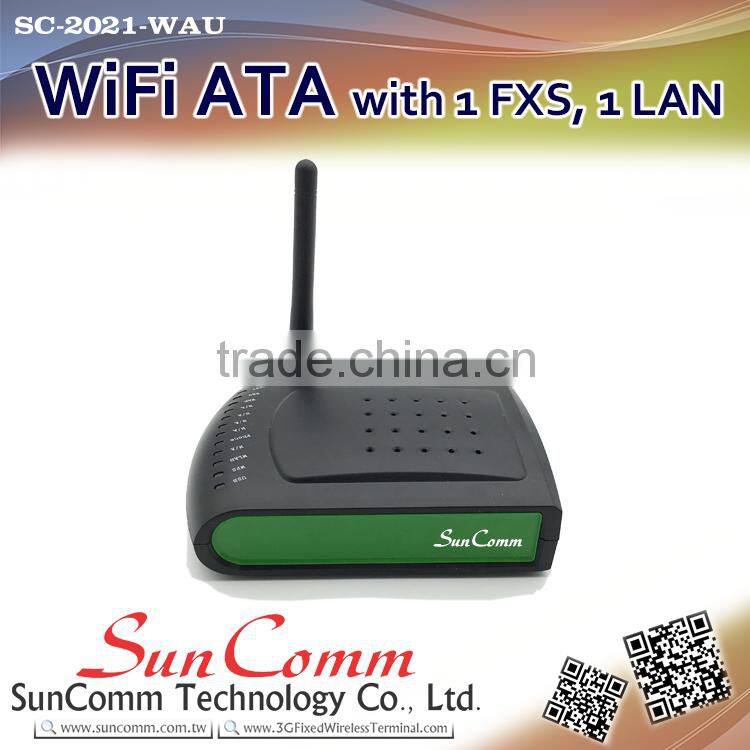

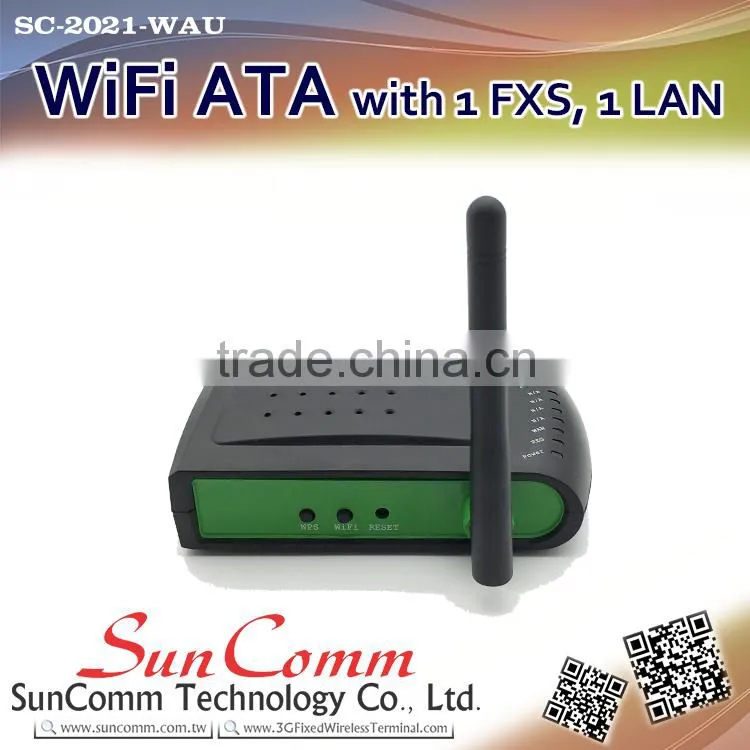

SC-2021-WAU with 1 FXS, 1 WAN WiFi ATA
VoIP SoC |
CPU Core: MIPS24KEc(400MHz) |
Flash |
16MBytes Flash |
RAM |
32MBytes SDRAM |
Power Supply |
AC/DC Adapter: AC Input: 100~240V, 50~60Hz DC Output: 5V, 2A |
I/O Interfaces |
1 RJ-45 for WAN port (Ethernet 10/100 Base-T) 1 RJ-11 for FXS port 1 USB2.0 Host Port IEEE802.11n 1T1R 150Mbps Wireless Built-in |
Environmental |
Operation Temperature: 0~45 Degree C Storage Temperature: -25~ 85 Degree C Relative Humidity: 10%~90% No Condensing Shock: Up to 75cm (`30 inches) |
Key Feature |
IEEE802.11n 150Mbps wireless Built-in One VoIP FXS port with SIP Voice and T.30&T.38 real-time FAX Mini size and USB2.0 host port for 3G dongle |
Audio Codec |
G.711 (A-Law, u-Law) with PESQ above 4.1 G.729 with PESQ above 3.7 Adaptive Jitter Buffer Management Voice Activity Detection Comfort Noise Generation Echo Cancellation T.30 FAX with G.711 Real time FAX over IP via T.38 |
Protocols |
SIP V2 (RFC 3261, 3262, 3263, 3264) Backward compatible with RFC2543 Session timer (RFC4028) SDP (RFC2327) RTP/RTCP (RFC823/903) NAPTR for SIP URI lookup (RFC2915) STUN (RFC2030) ARP/RARP (RFC 826/903) SNTP (RFC 2030) DHCP/PPPoE HTTP Server for Web Management TFTP/HTTP for Auto Provisioning Message Waiting Indicator (RFC3842) DHCP Option Codes for SIP (RFC3361) DNS/DNS SRV (RFC1706 and RFC 2782) IEEE802.1Q VLAN/802.1p and IP DSCP |
Wireless |
802.11 b/g/n support 4 SSID Static WEP(64/128bit) Dynamic WEP(64/128bit) AES(CCMP/TKIP) MAC certification WEP certification WPA-PAK/WPA-PSK(2.0) WPA/WPA2 AP Isolation and MBSSID AP Isolation WMM WDS WPS Station list Radius certification and billing MAC Filter(different from wired MAC Filter) |
Applications |
Support NAT mode and Bridge mode Support DDNS MAC address cloning SIP proxy redundancy NAT Traversal by STUN Built-in Wired speed NAT Router DHCP Server and Client IP conflict detection VLAN Flow Control VPN Pass through (PPTP,L2TP and IPSec) Port forwarding and DMZ host Classification by physical port, IP port, 802.1p,DSCP and TCP/UDP port Marking by 802.1p and DSCP Firewall defend attack and UDP flooding |
Management |
Firmware Upgrade Web Management Interface IVR-driven Management Interface Local and Remote Syslog (RFC3164) Auto Provisioning SNTP Time Synchronization Multi User Level SNMP v2 Telnet TR069 System Log: local log and remote log |
|
Call Features
|
3-way conference Call hold Call forwarding Call Transfer Call waiting Caller ID and CWCID DTMF Relay: In-band, Out-band and SIP INFO QoS Layer 3 Call Log CID/CWCID Dial Plan DTMF Mode: Inband, outband and SIP Info |
Dimension |
(L) 110 x (W) 75 x (H) 28 mm (without package) |
Unit Weight |
110g ( without package) |
