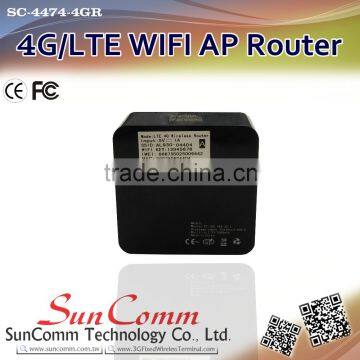

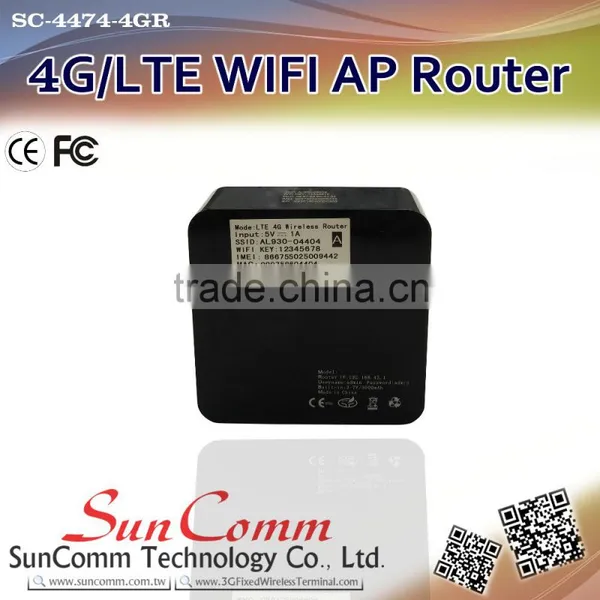

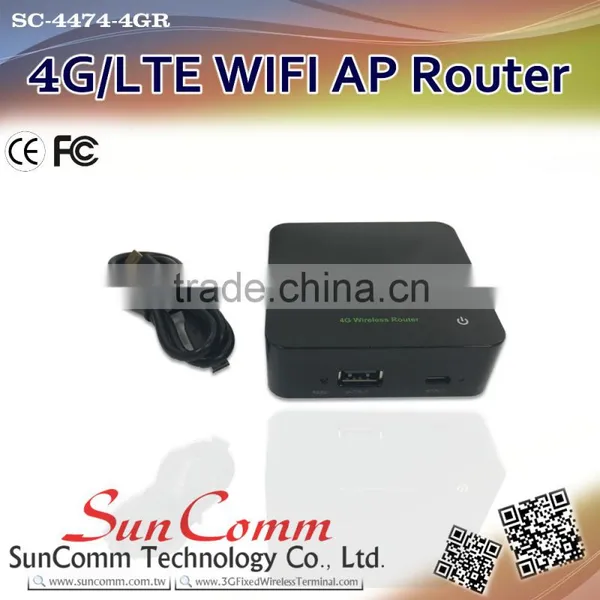

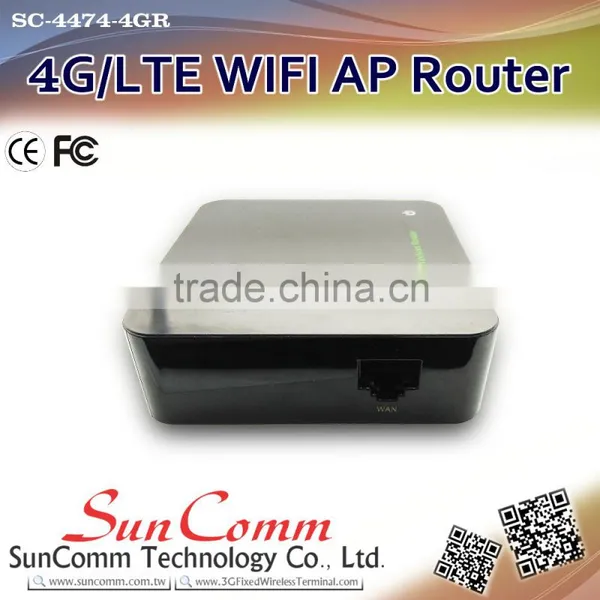

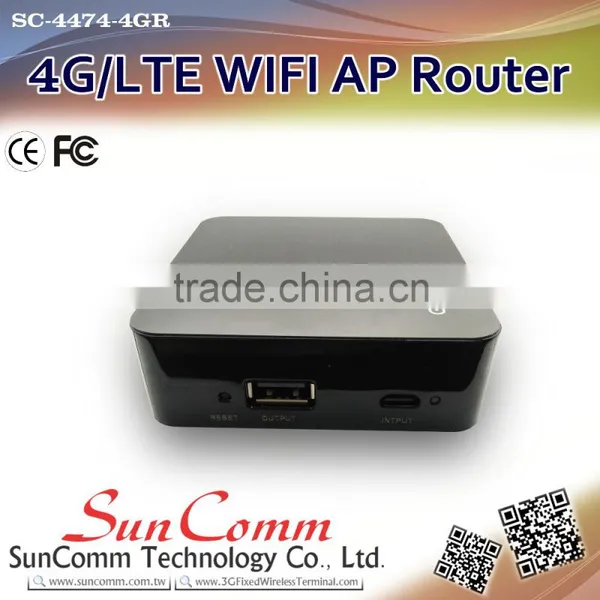

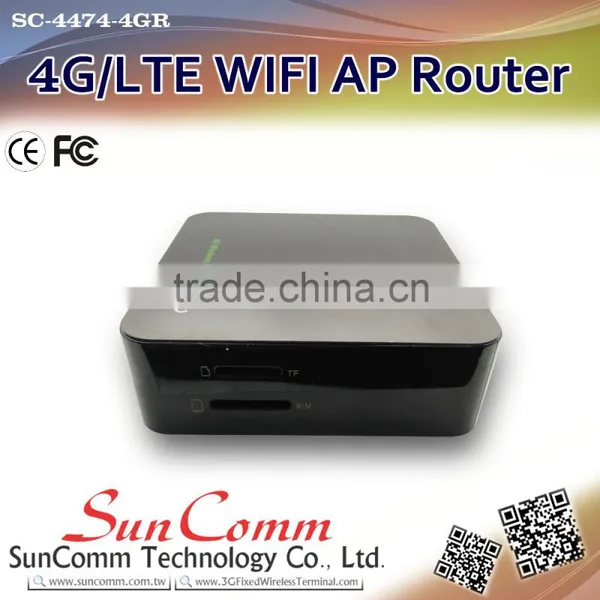

SC-4474-4GR Hotselling Mini Portable 4G WIFI Router
US$ 1 - 10
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SunComm
Model Number:
SC-4474-GR
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Taiwan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SC-2295-4GW With WiFi Cat 4 Carrier Aggregation 4G LTE RouterUS$ 1 - 10MOQ: 3000 Units -
SC-2025-WAU Best Selling WiFi Voip ATA With 1FXS, 1WAN, 4LAN, 1USBUS$ 1 - 43MOQ: 500 Units
-
SC-2021-WAU Best Selling WiFi Voip ATA With 1FXS, 1WAN, 1USB, IEEE802.11n 150Mbps Wireless Built-inUS$ 1 - 56MOQ: 500 Units
-
SC-2082-2S Top Quality WiFi Voip ATA With 1WAN,3LAN, 2FXSUS$ 1 - 50MOQ: 500 Units
-
SC-2166AWP Modem PhoneRouter Phone , Landline Phone With ADSL 2+US$ 1 - 100MOQ: 500 Units
Place of Origin
Guangdong, China
Brand Name
SunComm
Model Number
SC-4474-GR
SC-4474-4GR Hotselling mini portable 4G WIFI Router
Product Description
| Overview |
| Supported Standards |
| IEEE802.11 a/ b/g/n |
| Long Term Evolution(LTE) |
| Dual Cell High-Speed Packet Access Plus (DC-HSPA+) |
| High-Speed Packet Access Plus (HSPA+) |
| Universal Mobile Telecommunications System (UMTS) |
| Time Division-Synchronus Code Multiple Access(TD-SCDMA) |
| Enhanced data rates for global evolution (EDGE) |
| General packet radio service (GPRS) |
| Global system for mobile communications (GSM) |
| Provided Services |
| LTE FDD packet data service |
| DC-HSPA+ packet data service |
| HSPA+ packet data service |
| HSPA packet data service |
| HSUPA packet data service |
| HSPA/UMTS packet data service |
| TD-SCDMA packet data service |
| LTE Short Message Service (SMS) over SGs |
| EDGE/GPRS packet data service |
| Features |
| Main Features |
| Support 4G/3G/2G turn WLAN access Internet |
| Support USB modem |
| Support power bank(output:5V/1A) |
|
SupportLTEFDDBand1/Band3/Band7,TDDBand38/Band39 /Band40,DCHSPA+/HSPA+/UMTSBand1/Bnad5/Band8, TD-SCDMA Band34/Band39,GSM850/900/1800/1900MHz |
| Support LTE FDD 1800,2100/2600 5M/10M/15M/20M bandwidth |
|
Support LTE FDD cat.3 downlink 100Mbps/uplink 50Mbps@20M bandwidth |
|
Support LTE TDD cat.3 downlink 68Mbps/uplink 17Mbps@20M bandwidth |
| LTE 2*2 MIMO DL |
| DC-HSPA+ data service of up to 43.2Mbps |
| HSPA+ data service of up to 21.6Mbps(64QAM) |
| HSPA data service of up to 14.4Mbps |
| HSUPA data service of up to 5.76Mbps |
| UMTS PS domain data service of up to 384kbps |
| TD-SCDMA data service of up to 2.8Mbps |
|
EDGE packet data service of up to 236.8kbps on downlink with MSC12 |
|
GPRS packet data service of up to 85.6kbps on downlink with MSC12 |
| WALN 802.11b up to 11Mbit/s |
| WALN 802.11g up to 54Mbit/s |
| WALN 802.11n supporting MCS0~MCS7,up to 72.2Mbit/s |
| LTE/UMTS/GSM SMS over SGs service |
| Automatic installation |
|
Windows XP SP3, Windows Vista SP1/SP2, Windows 7, Windows 8(Does not support Windows RT), Windows 8.1; Mac OS x 10.7,10.8 and 10.9 with latest upgrades, Linux OS and Android OS |
| Technical Specifications--Hardware |
| Technical standard |
| IEEE802.11 a/ b/g/n IEEE Std 802.11nTM-2009 |
| LTE Rel 8 Cat 3 |
| WCDMA Rel ‘99 plus Rel 5 HSDPA, Rel 6 HSUPA, Rel 7 |
| HSPA+(cat 14), Rel 8 DC-HSPA+(cat 24) |
| TD-SCDMA 3GPP R5 1.28 TDD |
| GSM/GPRS/EDGE Rel 99 |
| Operating frequency |
|
• LTE FDD 1800MHz:1710MHz~1785MHz(Uplink)/ • LTE TDD 2600MHz:2570MHz~2620MHz |
| External interfaces |
| Standard USB 2.0 High Speed |
| Micro USB 2.0 High Speed |
| SIM/USIM card |
| MicroSD card Slot |
| LAN/WAN |
| Display Antenna |
| LED display the working status |
| 4G/3G/2G:Internal antenna |
| WLAN:Internal antenna |
| Diversity:support,internal antenna |
| Maximum transmitter power |
|
LTE FDD 1800/2100/2600MHz,TDD1900/2300/2600MHz: Power Class 3 (23dBm) |
| WCDMA/HSPA+ 2100/900/850MHz: Power Class 3 (24dBm) |
| TD-SCDMA 1900/2000MHz: Power Class 3 (24dBm) |
| EV-DO/CDMA2000 1X 800MHz: Power Class 3 (24dBm) |
| GSM/GPRS 900MHz/850MHz: Power Class 4 (33dBm) |
| GSM/GPRS 1800MHz/1900MHz: Power Class 1 (30dBm) |
| EDGE 850MHz/900MHz:Power Class E2 (27dBm) |
| EDGE 1800MHz/1900MHz: Power Class E2 (26dBm) |
|
WLAN: 802.11g: 11 (+/-3)dBm 802.11b: 14 (+/-3)dBm 802.11n: 7 (+/-3)dBm |
| Static receiver sensitivity |
|
LTE FDD 1800/2100/2600MHz,TDD1900/2300/2600MHz: Accorded with 3GPP TS 36.101(R8) |
|
WCDMA/HSPA/HSPA+ 2100/900MHz:Compliant with 3GPP TS 25.101(R8) |
|
GSM/GPRS/EDGE 850/900/1800/1900MHz: Compliant with 3GPP TS 05.05 (R99) |
| Power supply |
| Battery build-in 3.7/5000mAh |
| Input: +5±0.25V,≥1000mA |
| Output:5V/1000mA |
|
| Technical Specifications--Software |
| Basic specifications |
| Driverless |
| WebUI |
| Auto connect, auto reconnect |
| Display the device information by website |
| PIN management |
| PIN unlock |
| Device information display |
| Signal |
| Network mode |
| WLAN user |
| SMS status |
| Battery cap |
| Operator name |
| Traffic statistics |
| Duration time |
| SMS |
| Writing/Sending/Receiving |
| Sending/Receiving extra-long messages |
| Group sending |
|
Storage: The messages are saved in the hard disk of the PC or in (U)SIM card. |
| Sorting |
| New message prompt (visual prompt/audio prompt) |
| Network connection setup |
| APN management |
| Set up network connection |
|
| WLAN setting |
| Channel:1~13 |
| Wireless standard:11a,11b,11b/g,11n,11b/g/n |
|
WEP-OPEN,WPA-PSK,WPA2-PSK,WPA/WPA2-PSK security encrypt |
| Up to 10 WLAN users |
| Custom SSID |
| Custom WLAN KEY |
| Services and Applications |
| Packet Data Service |
|
PS domain data service based on LTE/DC-HSPA+/HSPA+/UMTS/ TD-SCDMA/EV-DO/CDMA2000 1X/EDGE/GPRS |
| Dual APN is supported in LTE mode |
| SMS |
|
supports message writing/sending/receiving and group sending on TD-SCDMA/CDMA2000 1X/UMTS/ GSM network |
| LTE network supporting SMS over SGs |
| System Architecture |
| Radio Frequency Module |
| Modulating/Demodulating LTE baseband signals |
| Modulating/Demodulating HSPA+/UMTS baseband signals |
| Modulating/Demodulating TD-SCDMA baseband signals |
| Encoding/Decoding HSPA+/UMTS channel |
| Encoding/Decoding EDGE/GPRS/GSM channel |
| Platform Service Subsystem |
| Initializes programs |
| Diagnoses the running of the system |
| Downloads data |
| Protocol Stack System |
|
Processes protocols of LTE/ DC-HSPA+/HSPA+/UMTS/ ETD-SCDMA/EV-DO/CDMA20001X/EDGE/GPRS/GSM |
| Processes protocols of WLAN IEEE802.11a/b/g/n |
| Application System |
| Message management |
| CS/PS domain service management |
| WLAN service management |
| Webkey service management |
| User Interface |
| Standard USB 2.0(battery output) |
| Micro USB 2.0(battery input) |
| MicroSD card Slot |
| SIM/USIM slot |
| Button |
| POWER ON/OFF |
| RESET key |

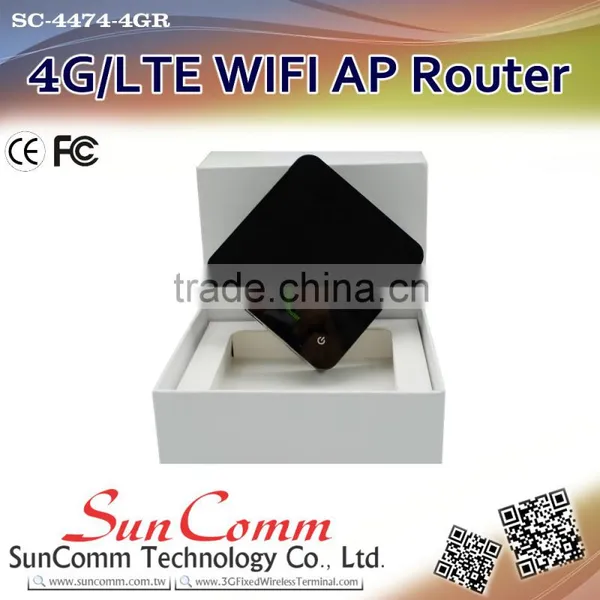

| Packing List |
| SC-4474-4GR 4G/ LTE WIFI AP Router 1 (Standard) |
| User manual 1 (Standard) |
| USB external cable 1 (Standard) |
