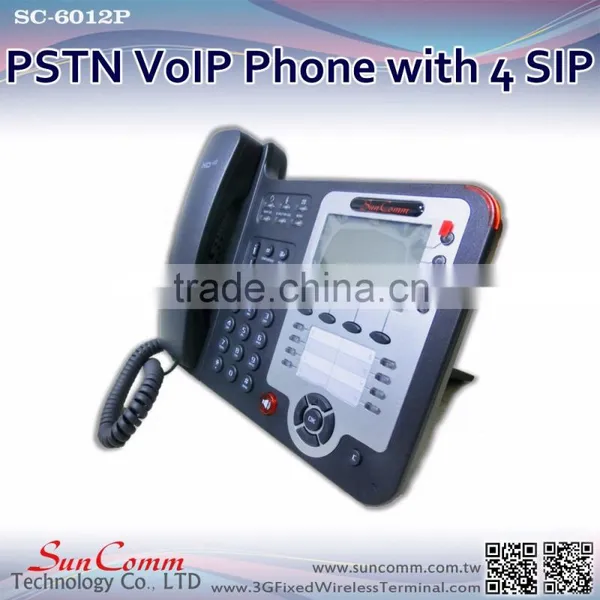

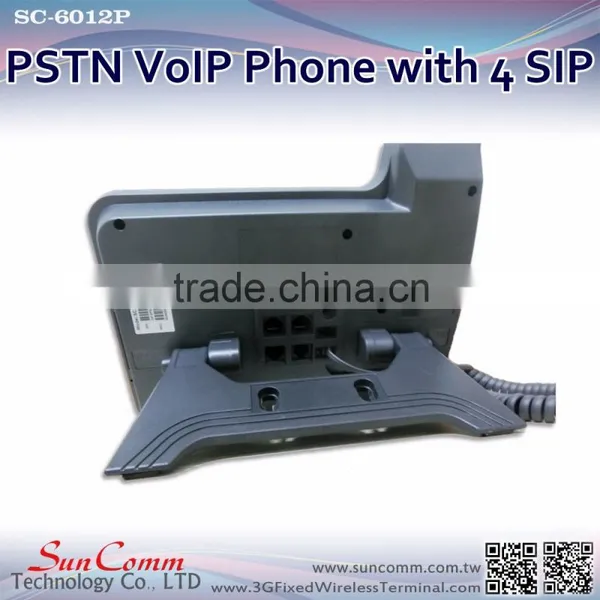

SC-6012P Support 8 Programmable Keys with 4 SIP line PSTN IP Phone
SunComm SC-6012P IP Phone with PSTN is designed for both VoIP and PSTN networking use to meet high function demand and efficient work.
SC-6012P IP Phone with PSTN has excellent speech quality & rich function keys to make operation convenient. One key dial can be easily achieved with proper settings.
SC-6012P support 4 SIP lines registering and multi call management. Call Waiting, Call Holding and Call Forward can be well implemented; meanwhile, it makes conference call to be created very quickly.
SC-6012P supports up to 6 expansion box that totally contain 192 programming buttons. With the Busy Lamp Field function, operators can manage and monitor the calls efficiently. It provides headset jack that compatible with professional microphone headsets, which will finely satisfy the call centre use.
1. Dual-module(VoIP+PSTN):
SC-6012P IP PHONE can provide both PSTN and VOIP network working together.
2. Clear voice
3. Advanced Call Process
Support 4 lines bi-color indicator light circuit, managing two lines at the same time, carrying out call queuing and circuit switch, it’s also convenient for tele-conference and call transfer, meet the communication requirement at the busy time.
4. Support 8 Programmable Keys
Programmable keys can be defined as speed call key or other functional key to the appointed contact for improving the operating efficiency. 8 pieces Programmable Keys support the indicator light in busy line.
5. Enterprise Address Book Application Support
business contacts private phone book applications, to help with flowers quickly find the call number .
6. Extend Modules
Supports 6 extend modules that totally contain 192 programming buttons. With the Busy Lamp Field function, operators can manage and monitor the calls more efficiently.
7. PoE Support and AC power adapter
8. Support HTTP/TFTP/FTP Auto-provision/TR069upgrade software
Item |
SC-6012P |
Screen |
Grayscale LCD with background light |
240*160 pixel | |
Language |
Chinese/English |
Line |
4 lines for VoIP and 1 PSTN |
Function Keys |
4 Soft keys 4 Line keys 6 Navigation keys (Arrow button, OK button, C button) Volume adjust , Hands-free, Mute, Headset, Message Menu, Directory, Service, Hold, Redial, Conference, Transfer
|
VoIP Protocol |
SIP 2.0 |
Network Protocol |
HTTP,BOOTP,FTP,TFTP,IEEE 802.1Q,*IEEE 802.1X |
|
Codec |
G.723.1 (5.3K 6.4K b/S),G.729 A/B (8Kb/s),G.711 A/U (64Kb/S),G722 |
|
QoS |
TOS, Jiffer Buffer, VAD, CNG, G.168 (32ms) |
|
Network |
2× RJ45 10/100M Ethernet Interfaces (LAN/PC) IP Assignment: static IP, DHCP, PPPoE DNS Client, VPN(L2TP), VLAN
|
|
Speech |
|
|
Call Processing |
Line Status Indicator Multi-Account Always Forward, Busy Forward, No-answer Forward Hotline number (Immediately/Delay) Call Waiting, Call Queuing, Line Switching Call Forward, Call Transfer, Call Holding, Call Pickup, *Callback One Key Dial, Redial Phone directly speed dial, Call record direct dial 3-way conference DnD, *Blacklist Voice mail, Voice Prompt, Voice Message BLF, BLA |
|
Expansion Interface |
|
|
Application |
Public phone directory Private phone directory |
|
Security |
Login LCD by password Login the website by password Signaling encryption Media encryption |
|
Management |
|
|
Power Supply |
Power adapter: AC100~240V input & DC 12V/1A output PoE (IEEE 802.af)
|
Specification |
Storage Temperature: 0℃~ 60℃ Operating Humidity: 10%~90% Size: 287mm*214mm*90mm Net weight: 1.37kg
|
Note: “*” Sign means function has not been published yet.
