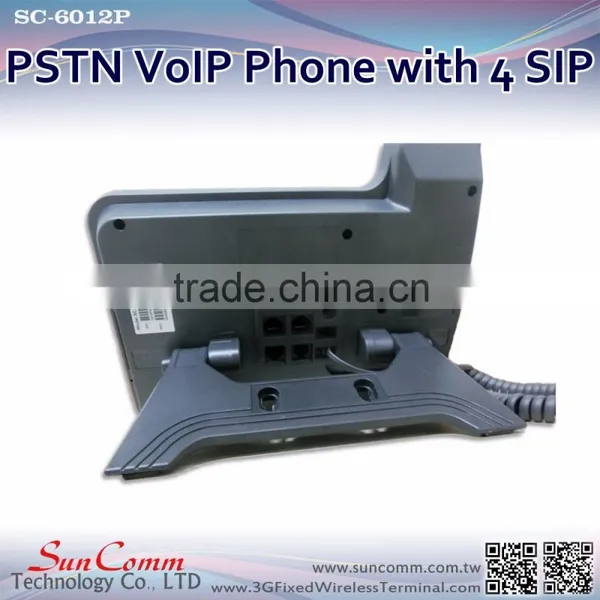

SC-6012P With 4 SIP Line Both VoIP and PSTN Networking PSTN IP Phone photo-3

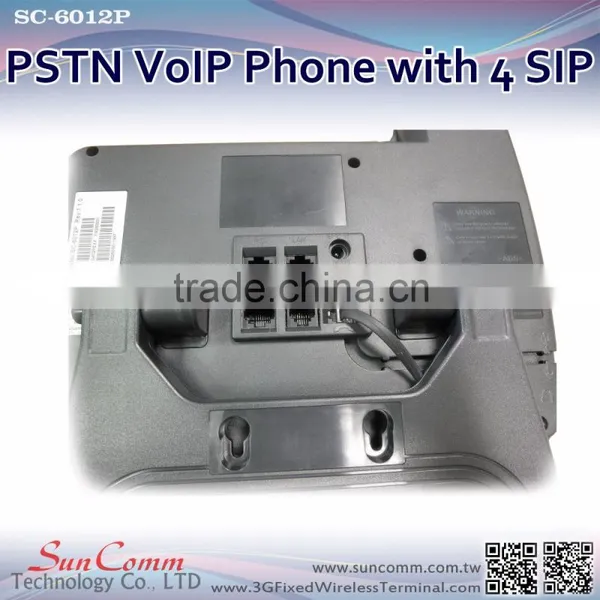

SC-6012P With 4 SIP Line Both VoIP and PSTN Networking PSTN IP Phone photo-4
SC-6012P With 4 SIP Line Both VoIP and PSTN Networking PSTN IP Phone photo-5
SC-6012P With 4 SIP Line Both VoIP and PSTN Networking PSTN IP Phone photo-6
US$ 100 - 120 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
SunComm
Model Number:
SC-6012P
Contact Supplier Request Quote Chat Now
Suncomm Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/ Taiwan
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Taiwan, China
Brand Name SunComm
Model Number SC-6012P
Type VoIP Phone

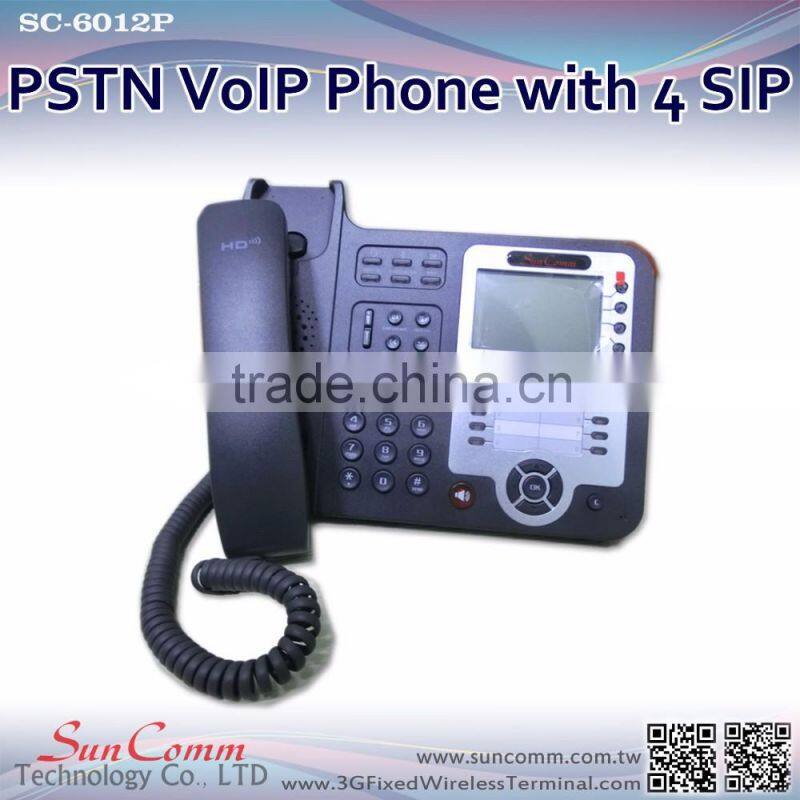

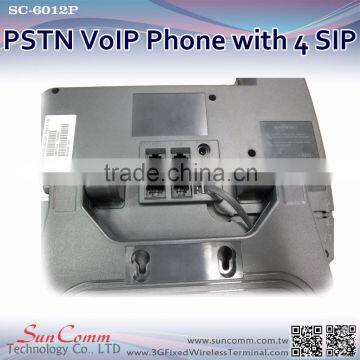

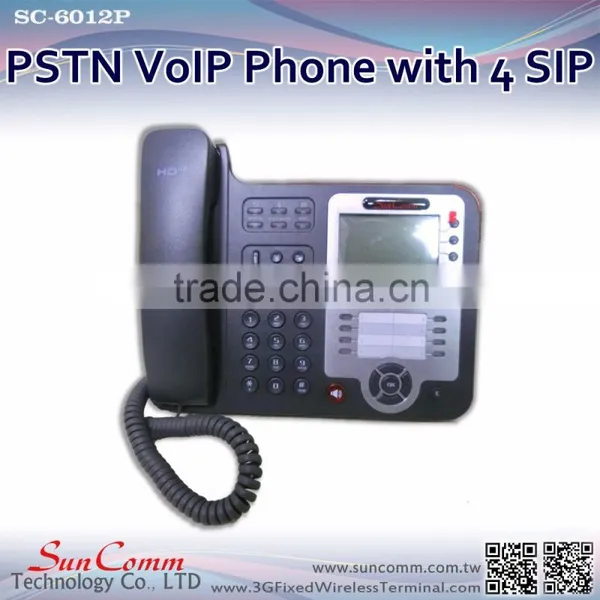

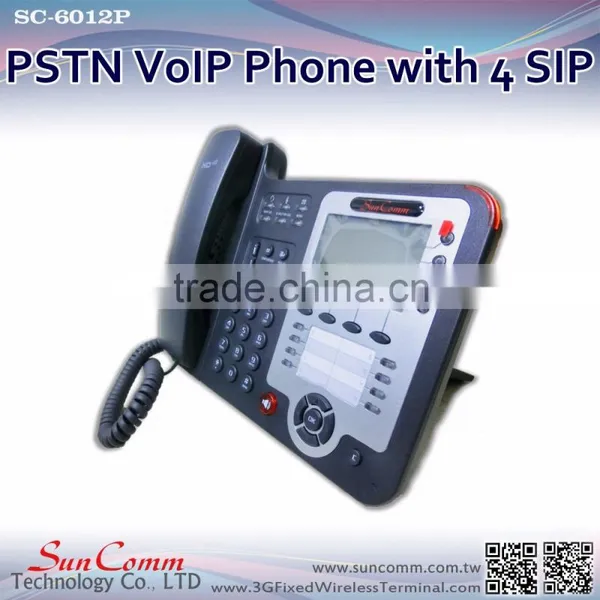

SC-6012P PSTN IP PHONE with 4 SIP line, PSTN, Busy Lamp Field, expansion box up to 6 units

 SC-6012P with 4 SIP line both VoIP and PSTN networking PSTN IP Phone





Product Description



SunComm SC-6012P IP Phone with PSTN is designed for both VoIP and PSTN networking use to meet high function demand and efficient work.
SC-6012P IP Phone with PSTN has excellent speech quality & rich function keys to make operation convenient. One key dial can be easily achieved with proper settings.
SC-6012P support 4 SIP lines registering and multi call management. Call Waiting, Call Holding and Call Forward can be well implemented; meanwhile, it makes conference call to be created very quickly.
SC-6012P supports up to 6 expansion box that totally contain 192 programming buttons. With the Busy Lamp Field function, operators can manage and monitor the calls efficiently. It provides headset jack that compatible with professional microphone headsets, which will finely satisfy the call centre use.

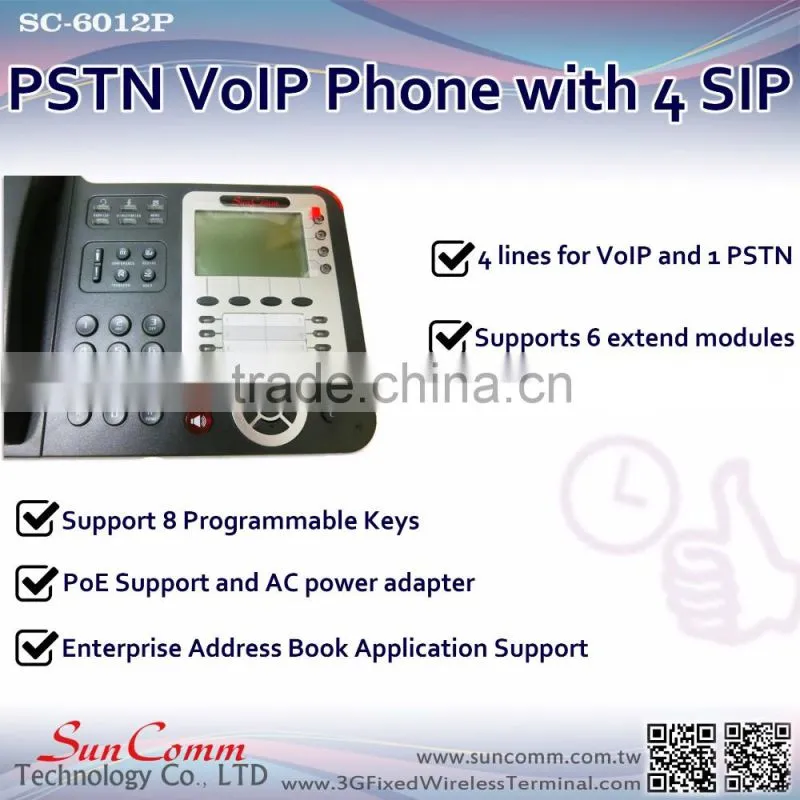

Key Feature



SC-6012P with 4 SIP line both VoIP and PSTN networking PSTN IP Phone



1. Dual-module(VoIP+PSTN):
SC-6012P IP PHONE can provide both PSTN and VOIP network working together.
2. Clear voice
3. Advanced Call Process
Support 4 lines bi-color indicator light circuit, managing two lines at the same time, carrying out call queuing and circuit switch, it’s also convenient for tele-conference and call transfer, meet the communication requirement at the busy time.
4. Support 8 Programmable Keys
Programmable keys can be defined as speed call key or other functional key to the appointed contact for improving the operating efficiency. 8 pieces Programmable Keys support the indicator light in busy line.

5. Enterprise Address Book Application Support

business contacts private phone book applications, to help with flowers quickly find the call number .
6. Extend Modules
Supports 6 extend modules that totally contain 192 programming buttons. With the Busy Lamp Field function, operators can manage and monitor the calls more efficiently.
7. PoE Support and AC power adapter
8. Support HTTP/TFTP/FTP Auto-provision/TR069upgrade software










Specifications



Item

SC-6012P

Screen

Grayscale LCD with background light

240*160 pixel

Language

Chinese/English

Line

4 lines for VoIP and 1 PSTN

Function Keys

4 Soft keys

4 Line keys

6 Navigation keys (Arrow button, OK button, C button)

Volume adjust , Hands-free, Mute, Headset, Message

Menu, Directory, Service, Hold, Redial, Conference, Transfer



VoIP Protocol

SIP 2.0

Network Protocol

HTTP,BOOTP,FTP,TFTP,IEEE 802.1Q,*IEEE 802.1X

Codec

G.723.1 (5.3K 6.4K b/S),G.729 A/B (8Kb/s),G.711 A/U (64Kb/S),G722

QoS

TOS, Jiffer Buffer, VAD, CNG, G.168 (32ms)

Network

2 × RJ45 10/100M  Ethernet Interfaces (LAN/PC)

IP Assignment: static IP, DHCP, PPPoE

DNS Client, VPN(L2TP), VLAN



Speech

HD Codec, HD Handset

Handle, Headset and Hands-free mode available

Support call centre headsets and PC headsets

Separated 9 Level Volume Adjustment



Call Processing

Line Status Indicator Multi-Account

Always Forward, Busy Forward, No-answer Forward

Hotline number (Immediately/Delay)

Call Waiting, Call Queuing, Line Switching

Call Forward, Call Transfer, Call Holding, Call Pickup, *Callback

One Key Dial, Redial

Phone directly speed dial, Call record direct dial

3-way conference

DnD, *Blacklist

Voice mail, Voice Prompt, Voice Message

BLF, BLA

Expansion Interface

EXT: EXT32 programmable key module

*USB port



Application

Public phone directory

Private phone directory

Security

Login LCD by password

Login the website by password

Signaling encryption

Media encryption

Management

Upgrade: HTTP/TFTP/FTP Auto-provision/TR069

Configurations: Phone/HTTP/Auto-provision/TR069

Debug: Telnet/Phone/Web



Power Supply

Power adapter: AC100~240V input & DC 12V/1A output

PoE (IEEE 802.af)



Specification

Storage Temperature: 0℃~ 60℃

Operating Humidity: 10%~90%

Size: 287mm*214mm*90mm

Net weight: 1.37kg



  Note: “*” Sign means function has not been published yet.
