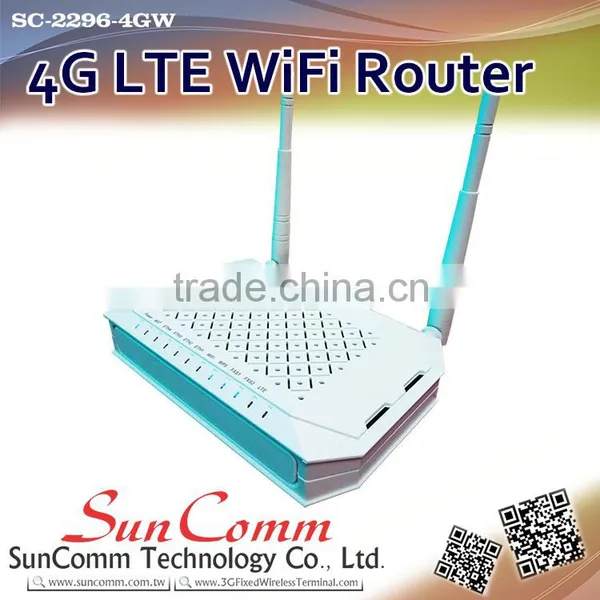

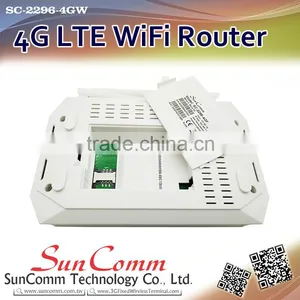

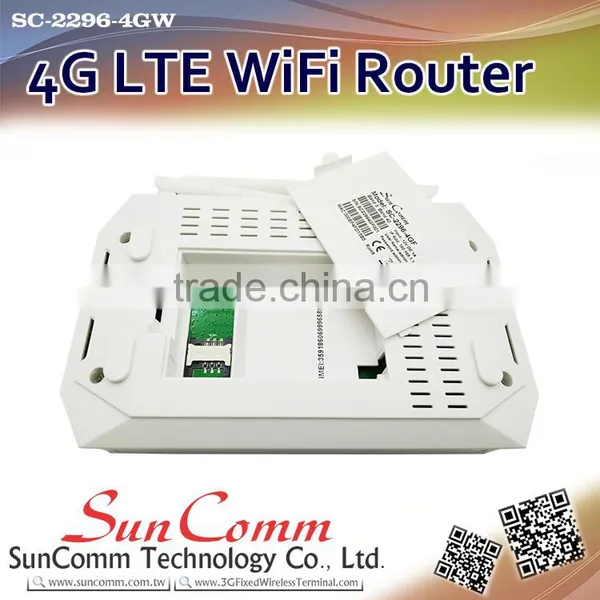

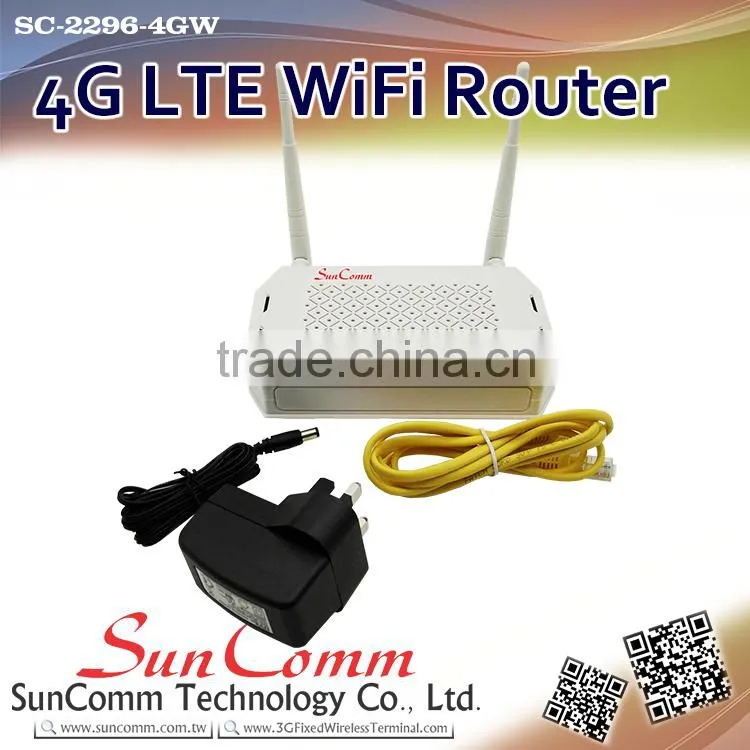

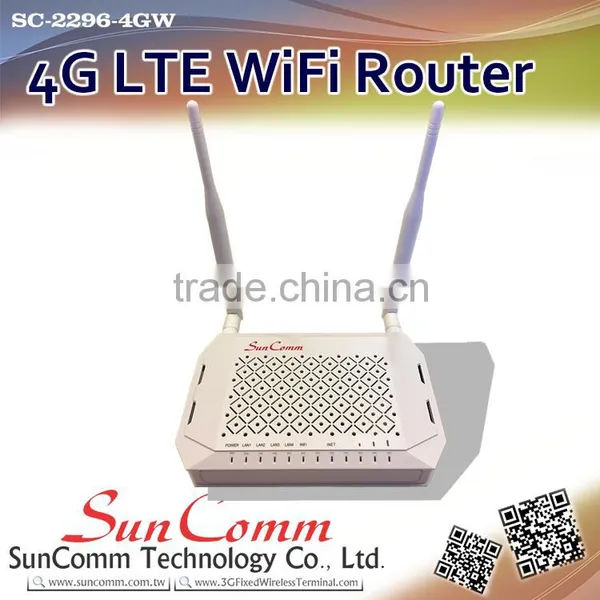

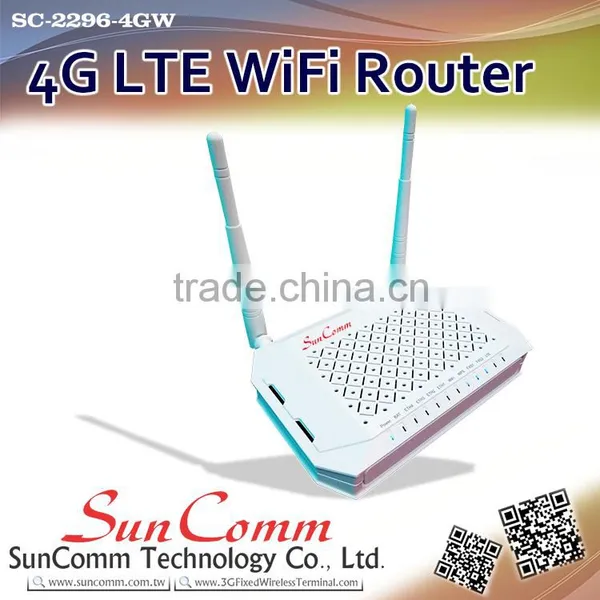

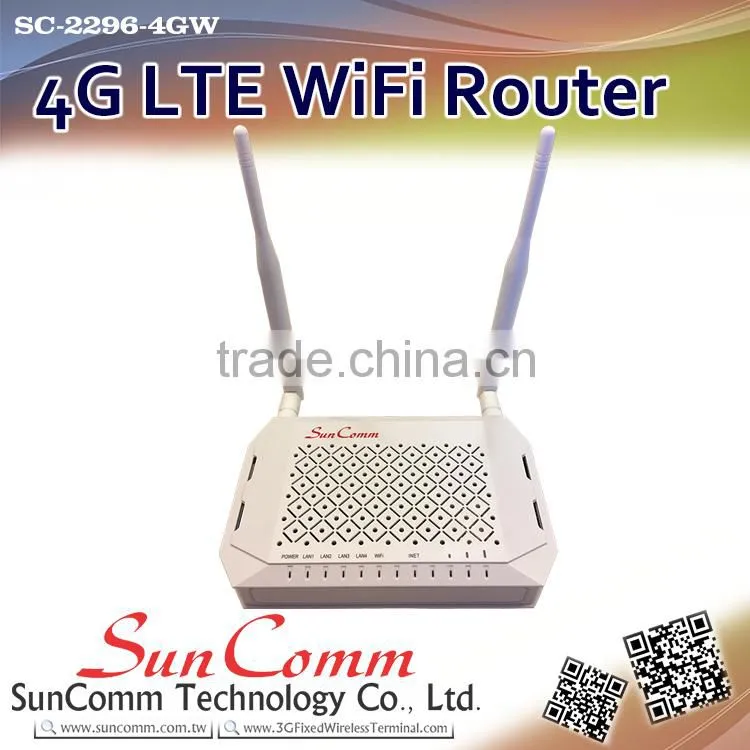

SC-2296-4GW Support Band 42 4G LTE WIFI ROUTER
SC-2296-4GW 4G LTE Wi-Fi Router is perfect to connect Internet with fast data rates, low latency where Ethernet connection is not available.
Using the latest 4G LTE technology, you can achieve downlink speeds of up to 150 Mbps and uplink speeds of up to 50 Mbps.
Simply insert an SIM card and get Internet access anywhere you can receive LTE, 3G data signal. SC-2296-4GW also has one external antenna and one internal antenna for a Wi-Fi connection that is reliable and consistent.
300Mbps Wi-Fi speed makes lag free connection for notebooks and smart phones.
BASIC | |
Operation Mode |
LTE Router, Normal Wireless Router |
Mobile Network Type |
FDD-LTE cat4 (800/900/1800/2100/2600MHz); TDD-LTE cat4 (1900/2350/2500/2600MHz); WCDMA (900/1900/2100MHz); TD-SCDMA (1900/2100MHz) |
Rate |
Upstream/Downlink: 50Mbps/150Mbps |
|
WIRELESS | |
Wireless Standard |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
Wireless Speed |
11n speed up to 300Mbps |
Wireless Frequency Range |
2.4GHz-2.4835GHz |
Transmit Power |
<20dBm(EIRP) |
Wireless Security |
64/128-bit WEP/WPA-PSK/WPA2-PSK/TKIP/AES |
Wireless Features |
Multi-SSID, WDS, Access Control List |
|
SOFTWARE |
|
VPN Pass-through |
|
Security Support |
PAP/CHAP Authentication for PPP mode NAT for Firewall, SPI Firewall with DoS protection ALG for NAT/PAT support Parental control, IP Filtering and MAC Filtering 2 Level (User/Admin) Authentication to Router |
Management Support |
Web Based GUI, Remote Access Control TR-069 FTP/HTTP , Telnet, Command Line Interface via serial interface Diagnostic Test, Firmware upgrade-able |
|
HARDWARE | |

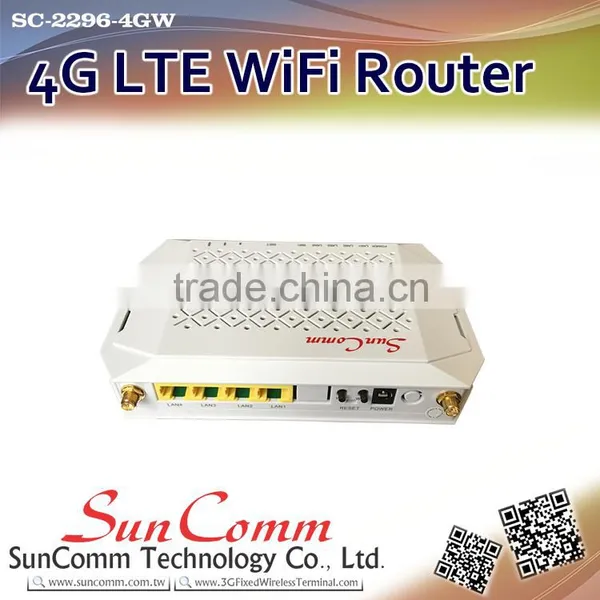

Physical Interface |
1 x USIM port 4 x 10/100Mbps Auto MDI/MDIX RJ45 LAN port 1 x Power interface |
LED Indicators |
Power, LAN1/2/3/4,WiFi, WPS, LTE |
Buttons |
ON/OFF, WiFi, WPS, RESET |
Antenna |
Wi-Fi antenna: 2 antennas. LTE antenna: 2 antennas. |
Power |
Input: 100-240V AC,50Hz Output: 12VDC/1.5A; 12VDC/1A (for the device without built-in battery) |
Built-in Battery |
3000mAh, working time up to 3 hours, 6 hours stand-by (the device can also be customized without battery) |
Processor |
BCM6318+BCM43217T |
Memory |
16MB Flash, 64MB RAM |
Maximum Connected Users |
16 |
|
OTHER |
|
Operation System |
Windows 7,8,XP, VISTA/Macintosh/Linux |
Environment |
Operating Temperature:-10°C~55°C(14~131℉) Storage Temperature: -30°C~60°C(-22~140℉) Operating Humidity: 5%~95% non-condensing Storage Humidity: 5%~90% non-condensing |
Dimension |
7.09*4.53*1.02 in (180*115*26mm) |
Weight |
180g |
We also have CE Certifications for SC-9039-3G, SCG-4QE/ SCG-8QE, SC-368W, SC-396-GP3G/ SC-393-GP3G
