Great Wall Make Great Machine

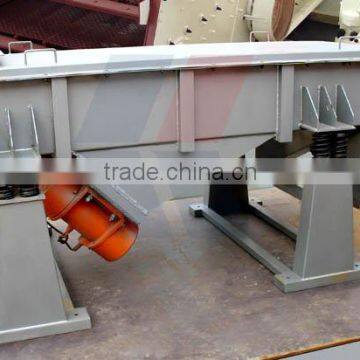

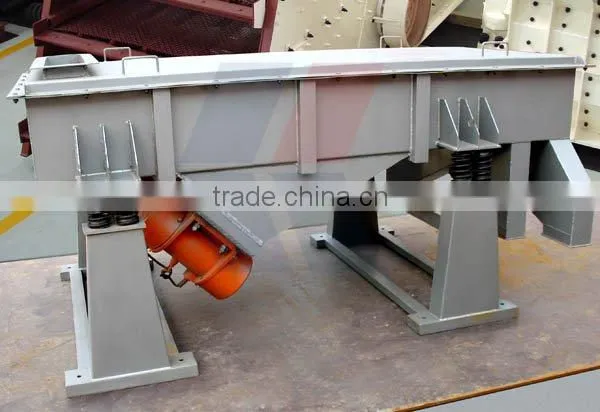

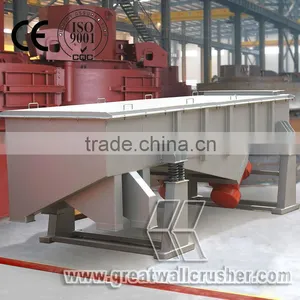

Linear Vibrating Sieve
I.Vibrating Sieve Usage and Application
The Vibrating Sieve is used for screening and classing materials like grain and powder in the industry of plastic, Abrasive Grains, medical, chemistry, metallurgy, mine, building materials, foodstuff, coal, chemical fertilizers, food and so on.
II.Vibrating Sieve Working Principle
The vibrating sieve drives the Vibrating Exciter to produce the vibrating power. The vibrating power throws the materials up and makes the materials move forward in line. It cycles and makes materials sieve. The materials are fed into the input month of vibrating screen, and after screening, users can get different sizes of products, while the unqualified materials on the top and the bottom sieves will be discharged from the their output months. It is used in the production line, can be operate automatically, and it has advantages of low consumption, good efficiency, simple structure, and can not produce dust by sealed structure.
III.Vibrating Sieve Features
This kind of Vibrating Sieve has advantages of good performance, low noise, low consumption, steady oscillation, simple operation and high efficiency in sieving.
IV.Vibrating Sieve Main Specifications
Model |
Screen Cloth Size (mm) | Material Size (mm) | Vibrating Times (times/minute) | Screen Cloth Obliquity | Amplitude | Screen Decks | Power (Kw) |
| SZF-525 | 500×2500 | 0.074-60 | 960 | 1°-7° | 1-4.5 | 1-6 | 2×(0.37-0.75) |
| SZF-530 | 500×3000 | 0.074-60 | 960 | 1°-7° | 1-4.5 | 1-6 | 2×(0.37-0.75) |
| SZF-1020 | 1000×2000 | 0.074-60 | 960 | 1°-7° | 1-4.5 | 1-6 | 2×(0.75-1.1) |
| SZF-1030 | 1000×3000 | 0.074-60 | 960 | 1°-7° | 1-4.5 | 1-6 | 2×(1.1-1.5) |
| SZF-1225 | 1200×2500 | 0.074-60 | 960 | 1°-7° | 1-4.5 | 1-6 | 2×(1.1-1.5) |
| SZF-1230 | 1200×3000 | 0.074-60 | 960 | 1°-7° | 1-4.5 | 1-6 | 2×1.5 |
