Great Wall Make Great Machine
I.Vibration Sieve Application

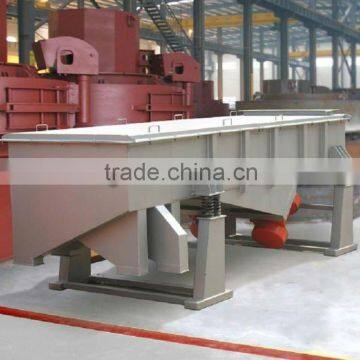

SZF Series linear vibrating sieve are very useful in plastics, rubber, ceramic, food, pharmaceutical,
chemical, fertilizer, glass industries. Vibratory sieve can be provided with dust proof cover as
required. SZF Series linear vibration sieve can be supplied of different sizes depending upon
capacity required. They can also handle slightly wet material.
II.Vibration Sieve Working Principle
The SZF vibrating sieve drives the Vibrating Exciter to produce the vibrating power. The vibrating
power throws the materials up and makes the materials move forward in line. It cycles and makes
materials sieve. The materials are fed into the input month of vibrating screen, and after screening,
users can get different sizes of products, while the unqualified materials on the top and the bottom
sieves will be discharged from the their output months. It is used in the production line, can be
operate automatically.
III.Vibration Sieve Features
1. Continuous production, single or multi-layer auto-classification filtering
2. Good sealing performance, no dust overflow.
3. Energy-saving and low noise with vibration motor.
4. Start fast and stop smoothly
5. Simple installation, easy operation and maintenance
6. High utilization rate of screen, large unit area, not easy to block, but easy replacement of screen.
7. High-precision screening reach to 96% or above, large processing capacity.
8. Low noise, Low energy consumption
9. Many kinds of screen meshes can be changed and the long life operation
IV.Vibration Sieve Main Specifications
Model |
Screen Cloth Size (mm) | Material Size (mm) | Vibrating Times (times/minute) | Screen Cloth Obliquity | Amplitude | Screen Decks | Power (Kw) |
| SZF-525 | 500×2500 | 0.074-60 | 960 | 1°-7° | 1-4.5 | 1-6 | 2×(0.37-0.75) |
| SZF-530 | 500×3000 | 0.074-60 | 960 | 1°-7° | 1-4.5 | 1-6 | 2×(0.37-0.75) |
| SZF-1020 | 1000×2000 | 0.074-60 | 960 | 1°-7° | 1-4.5 | 1-6 | 2×(0.75-1.1) |
| SZF-1030 | 1000×3000 | 0.074-60 | 960 | 1°-7° | 1-4.5 | 1-6 | 2×(1.1-1.5) |
| SZF-1225 | 1200×2500 | 0.074-60 | 960 | 1°-7° | 1-4.5 | 1-6 | 2×(1.1-1.5) |
| SZF-1230 | 1200×3000 | 0.074-60 | 960 | 1°-7° | 1-4.5 | 1-6 | 2×1.5 |
