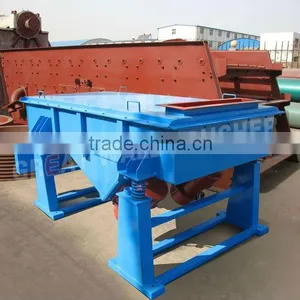

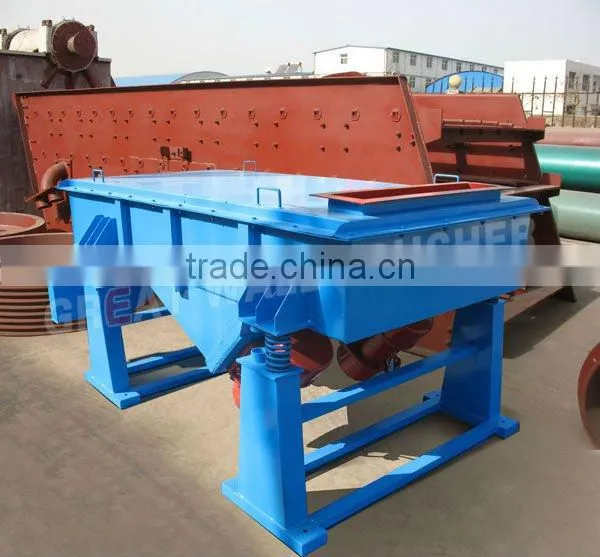

Linear Vibrating Screen - Great Wall
- Qingdao Shanghai Tianjin
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Linear | |
| Application | Other, Ore, mining and quarry | Place of Origin | Henan, China | |
| Brand Name | Great Wall | Model Number | SZF |
Product Description
Linear Vibrating Screen
I. Usage and Application
The Linear Vibrating Screen is used for screening and classing materials like grain and powder in the industry of plastic, Abrasive Grains, medical, chemistry, metallurgy, mine, building materials, foodstuff, coal, chemical fertilizers, food and so on.
II. Working Principle
I drives the Vibrating Exciter to produce the vibrating power. The vibrating power throws the materials up and makes the materials move forward in line. It cycles and makes materials sieve.
III. Features
It has advantages of good performance, low noise, low consumption, steady oscillation, simple operation and high efficiency in sieving.
Main Specifications
Model | Screen Cloth Size (mm) | Material Size (mm) | Vibrating Times (times/minute) | Screen Cloth Obliquity | Amplitude | Screen Decks | Power (Kw) |
| SZF-525 | 500×2500 | 0.074-60 | 960 | 1°-7° | 1-4.5 | 1-6 | 2×(0.37-0.75) |
| SZF-530 | 500×3000 | 0.074-60 | 960 | 1°-7° | 1-4.5 | 1-6 | 2×(0.37-0.75) |
| SZF-1020 | 1000×2000 | 0.074-60 | 960 | 1°-7° | 1-4.5 | 1-6 | 2×(0.75-1.1) |
| SZF-1030 | 1000×3000 | 0.074-60 | 960 | 1°-7° | 1-4.5 | 1-6 | 2×(1.1-1.5) |
| SZF-1225 | 1200×2500 | 0.074-60 | 960 | 1°-7° | 1-4.5 | 1-6 | 2×(1.1-1.5) |
| SZF-1230 | 1200×3000 | 0.074-60 | 960 | 1°-7° | 1-4.5 | 1-6 | 2×1.5 |
