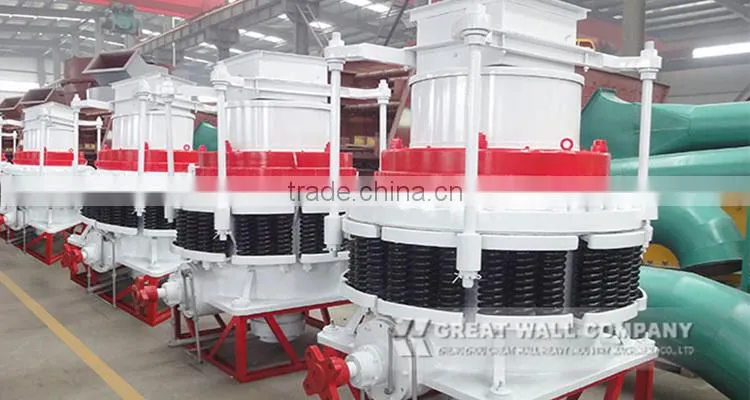

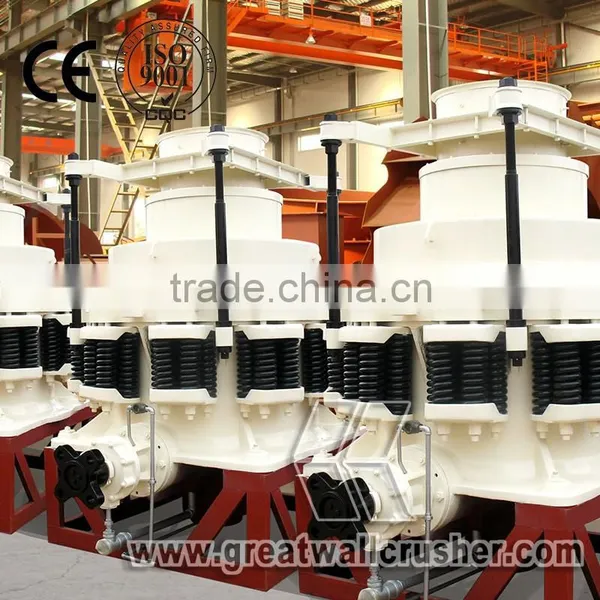

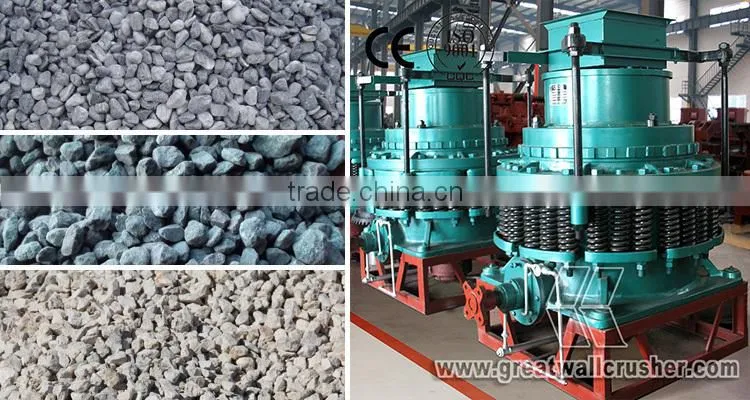

High Quality Gyratory Crusher

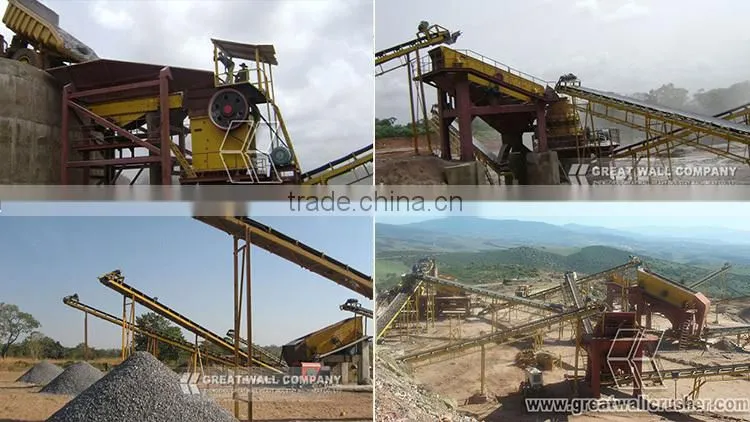

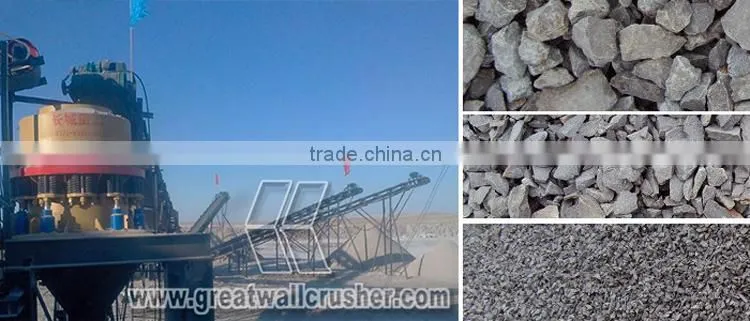

High Quality Gyratory Crusher Usage and Application
The spring cone crusher is widely used for secondary and fine crushing in the fields of mining, chemical industry, building materials, metallurgy and so on. It can crush materials with Moh’s scale in middle and high hardness such as ironstone, copper ore, limestone, quartz, granite, rock and so on. The standard type (PYB) is applied to secondary crushing; the medium type (PYZ) and the short-head (PYD) are applied to fine crushing.

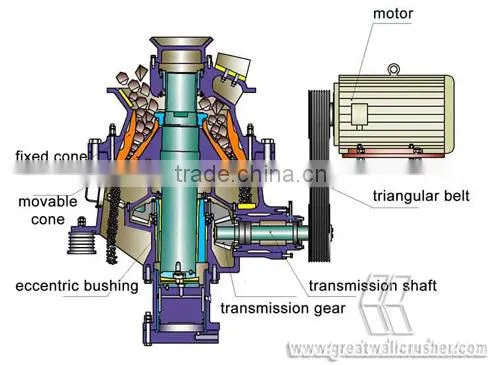

High Quality Gyratory Crusher Working Principle
When the cone crusher is working, the motor drives the eccentric bearing bushing via spring coupling, transmission shaft and a couple of cone gear wheel. The crushing cone axis is forced to swing by the eccentric bearing bushing, which makes the mantle close to the bowl liner and far away from the bowl liner from time to time. The raw materials are pressed, impacted and finally crushed in the crushing cavity.
High Quality Gyratory Crusher Features
1. High capacity and good quality;
2. Long life for quick-wear parts, and low investment cost;
3. Dilute petrol stations for continuous lubrication to reduce downtime maintenance time.
High Quality Gyratory Crusher Main Specifications
|
Model |
Max. Feeding Sizes |
Adjustable Range of Output size |
Capacity |
Motor Power |
Weight |
Overall |
PYB600 |
65 |
12-25 |
10-25 |
30 |
5 |
2234×1370×1675 |
PYD600 |
35 |
3-13 |
5-20 |
30 |
5.5 |
2234×1370×1675 |
PYB900 |
115 |
15-50 |
50-90 |
55 |
11.2 |
2692×1640×2350 |
PYZ900 |
60 |
5-20 |
20-65 |
55 |
11.2 |
2692×1640×2350 |
PYD900 |
45 |
3-13 |
15-50 |
55 |
11.3 |
2692×1640×2350 |
PYB1200 |
145 |
20-50 |
110-168 |
110 |
24.7 |
2790×1878×2844 |
PYZ1200 |
100 |
8-25 |
42-135 |
110 |
25 |
2790×1878×2844 |
PYD1200 |
50 |
3-15 |
18-105 |
110 |
25.6 |
2790×1878×2844 |
PYB1750 |
215 |
25-60 |
280-480 |
160 |
50.3 |
3910×2894×3809 |
PYZ1750 |
185 |
10-30 |
115-320 |
160 |
50.3 |
3910×2894×3809 |
PYD1750 |
85 |
5-15 |
75-230 |
160 |
50.4 |
3910×2894×3809 |
PYB2200 |
300 |
30-60 |
490-800 |
260/280 |
80 |
4622×3302×4470 |
PYZ2200 |
230 |
10-30 |
200-580 |
260/280 |
80 |
4622×3302×4470 |
PYD2200 |
100 |
5-15 |
120-340 |
260/280 |
81.4 |
4622×3302×4470 |

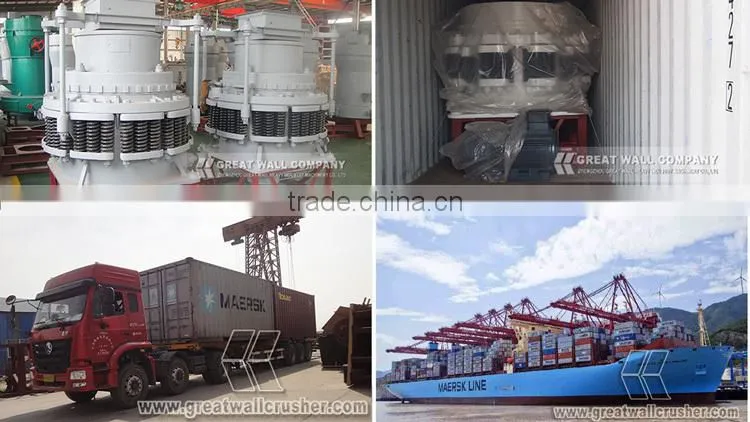

The machine is fixed tightly when it is sent to the port by professionale truck. Before shipped, it is covered by waterproof material to avoid moisture and rough handling.
With more than twenty years' history, Zhengzhou Great Wall Heavy Industry Machinery Co.,Ltd. is a manufacture specialized in R&D, manufacturing and selling big and middle size heavy industry machinery. Since establishment, we make a good image in the market with scientific management, qualified products and perfect service.
Our main products are crushers, grinding mills, other equipments for crushing plant and grinding plant and building construction equipments. They are widely used in mining, building material, metallurgy, chemical, traffic, reservoir and so on. Our products are not only sold well in more than twenty provinces and cities in China, but also in tens of countries and regions in Eastern Europe, Middle East, Asia, Africa, North America, South America, and Oceania.
Now we have domestic top ranking production equipments and precise testing instrument, each process of products is strictly inspected to guarantee the products to achieving high ex-factory standard. Besides, we cooperate with many famous universities and scientific research institutions, so that can make technical warrantee for the products in it's developing, updating and improving.
"Persons of ability guarantee the quality". Our company takes in persons of ability and gives training to the staffs annually to their quality and skill to meet the development of the company.During the past years, we stick to "Honest, truth-seeking, innovation and hard working". To keep "Great Wall" brand, we will improve ourselves and try our best to make perfect products and the best service.
1.Pre-sales Service
Offering comprehensive technical and business consultation services;
Proposing th e most suitable scheme and equipment for our clients;
Designing and fabricating targeted products according to the special requirements of clients;
Training periodically high qualified service technician.
2.After-sales Service
Highly inspecting equipments in every working procedure, quality comes first;
Fast & Safe Delivery;
Assisting our clients for foundation construction of equipments;
Dispatching engineers to install and debug equipments;
Training the first-line operators on site;
Regularly visit clients to solve production problems;
Providing life-long maintenance service;
Providing technical exchanging;
1. We are Manufacturer (Not Dealer):
All machineries from Great Wall Heavy Industry Machinery CO., LTD are made by ourselves, with good quality, Competitive price and assured full after service.
2. If you are new for this business:
We can provide you with design scheme for complete production lines, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipments.
3. We’d like to recommend a suitable model for you and send you a best quotation. So please give us this information about your requirement in your enquiry:
1. What is the raw material to be processed? And maximum feeding size of raw material?
2. What is the required output size after crushing?
3. How many tons per hour do you want?
Do not hesitate send us inquiry for more details about the High Quality Gyratory Crusher.
