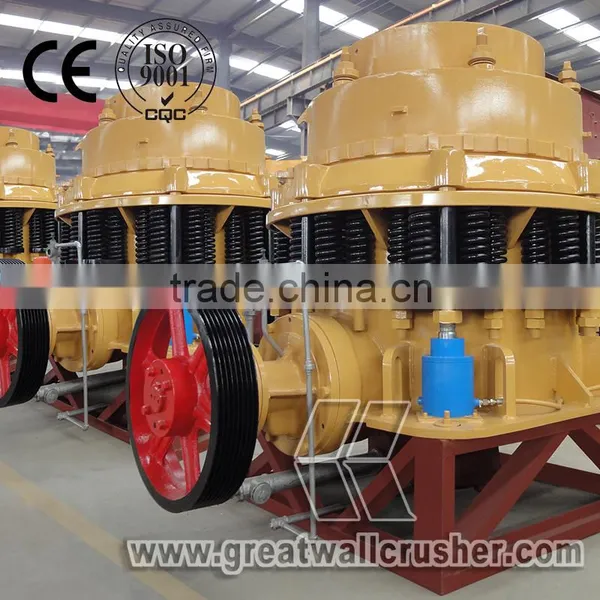

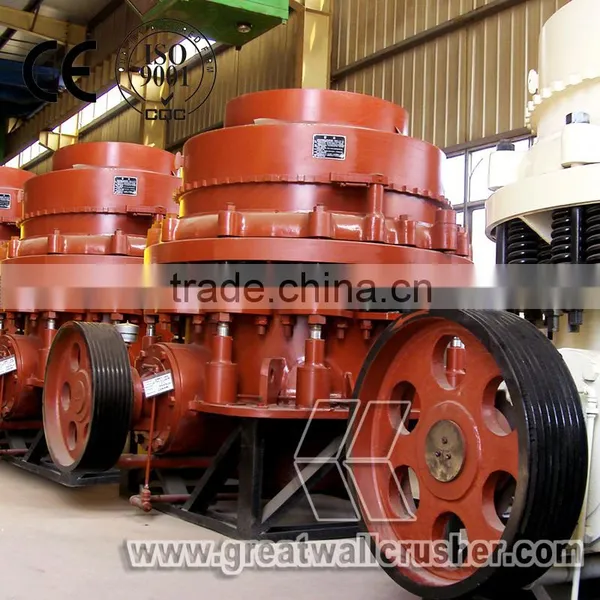

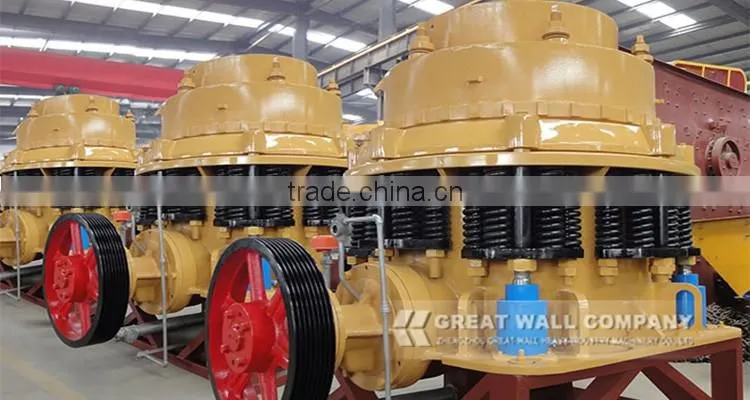

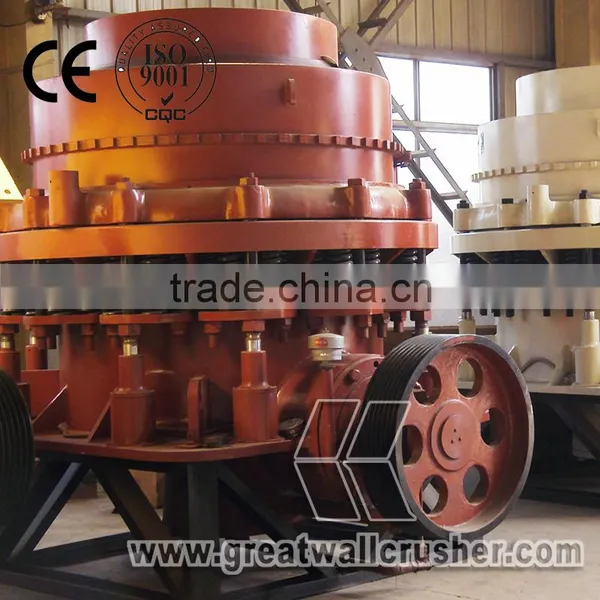

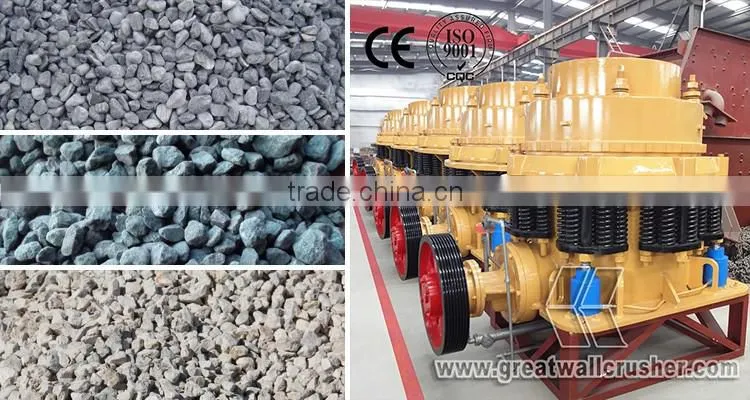

Great Wall High Quality and Efficient Mine Cone Crushing Machine
Cone Crushing Machine Usage and Application
Cone Crushing machine is widely used for secondary and fine crushing in the fields of mining, building materials, metallurgy and so on. Cone Crushing machine can crush materials with middle and high hardness, such as ironstone, copperore, quartz, metal ore, basalt, granite, limestone, cobblestone, sandstone and so on.

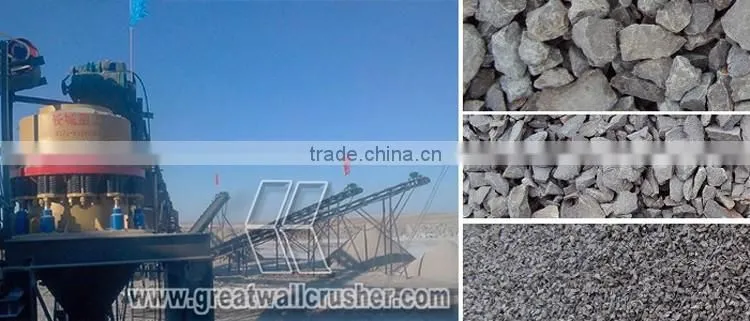

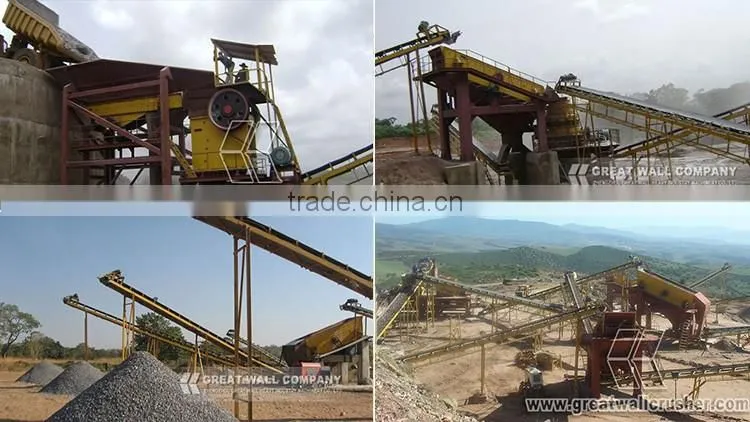

Cone Crushing machine can be used as well as in stone crushing production line and sand making plant, therefore cone crusher production capacity has close relationship with client’s investment and profits. Genetal speaking, the largest capacity can reach 800 tons per hour, which can reach all customer's demands. After continuous development, cone crushing machine not only keeps pace with the times, but also has made great progress in the original foundation. There are many different types of devices emerging in the market to meet diverse demands.
Cone Crushing Machine Working Principle

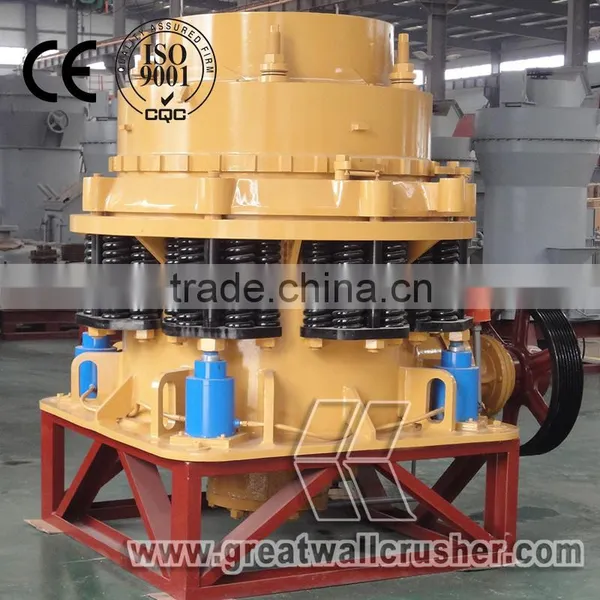

The cone crushing machine is mainly composed of frame, fixed cone assembly, movable cone assembly, spring mechanism, bowl pedestal part, transmission device and so on, and the auxiliary device includes electrical system, diluted oil lubrication station and hydraulic cleaning chamber system. When Cone crusher works, the motor drives the drive shaft through the pulley and V-belt .The drive shaft and a pair of bevel gear make the eccentric sleeve rotating and this makes the cone axis swing, so sometimes the crushing wall is near the rolling mortar wall, but sometimes they are far away from each other. Stones in the crushing cavity are extruded, impacted, and boned continuously, finally they are crushed.
Cone Crushing Machine Feathers
1. Cone crushing machine with High capacity and good quality. The reduction ratio can reach 6-10:1, which means an average rock will be fractured into 6-10 smaller rocks after passing through a cone crusher.
2. Cone crushing machine with Long life for quick-wear parts, and low investment cost. The wear parts are made of high manganese steel, which is resistant wear. The special structure can save 15%-30% energy.
3. Dilute petrol stations for continuous lubrication to reduce downtime maintenance time.
4. Cone crushing machine adopts special chamber cleaning system, easy operation, and reduces machine downtime.
5. Cone crushing machine's crushing chamber is deep and without dead zone, thus improving material feeding ability and the final output.
Cone Crushing Machine Main Specification
Model |
Chamber Size |
Max Feeding |
Adjusting Range |
Capacity |
Motor |
Weight |
Overall Dimension |
CZS36B |
Fine |
85 |
9~22 |
45~91 |
75 |
14.5 |
2656×1746×2410 |
Coarse |
150 |
13-38 |
59~163 |
||||
Extra Coarse |
152 |
25-38 |
118~163 |
||||
CZS36D |
Fine |
35 |
3~13 |
27~90 |
15 |
||
Medium |
65 |
5~16 |
36~100 |
||||
Coarse |
85 |
6~19 |
59~129 |
||||
CZS51B |
Fine |
115 |
13~31 |
109~181 |
160 |
26.5 |
2958×2354×3156 |
Medium |
178 |
16~38 |
132~253 |
||||
Coarse |
205 |
19~51 |
172~349 |
||||
Extra Coarse |
220 |
25~51 |
236~358 |
||||
CZS51D |
Fine |
54 |
3~16 |
36~163 |
27 |
||
Medium |
76 |
6~16 |
82~163 |
||||
Coarse |
89 |
8~25 |
109~227 |
||||
Extra Coarse |
113 |
16~25 |
209~236 |
||||
CZS66B |
Fine |
178 |
16~38 |
181~327 |
220 |
51 |
3941×2954×3771 |
Medium |
205 |
22~51 |
258~417 |
||||
Coarse |
228 |
25~64 |
299~635 |
||||
Extra Coarse |
313 |
38~64 |
431~645 |
||||
CZS66D |
Fine |
60 |
5~13 |
90~209 |
52 |
||
Medium |
76 |
6~19 |
136~281 |
||||
Coarse |
113 |
10~25 |
190~336 |
||||
Extra Coarse |
125 |
13~25 |
253~336 |
||||
CZS84B |
Fine |
236 |
19~38 |
381~726 |
315 |
90 |
4613×3251×4732 |
Medium |
284 |
25~51 |
608~998 |
||||
Coarse |
314 |
31~64 |
789~1270 |
||||
Extra Coarse |
391 |
38~64 |
880~1361 |
||||
CZS84D |
Fine |
89 |
5~16 |
190~408 |
92 |
||
Medium |
113 |
10~19 |
354~508 |
||||
Coarse |
151 |
13~25 |
454~599 |
||||
Extra Coarse |
172 |
16~25 |
508~653 |

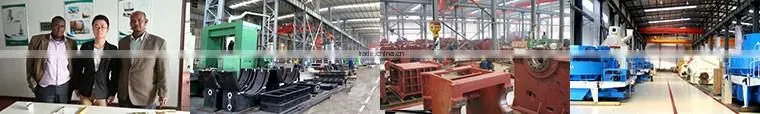

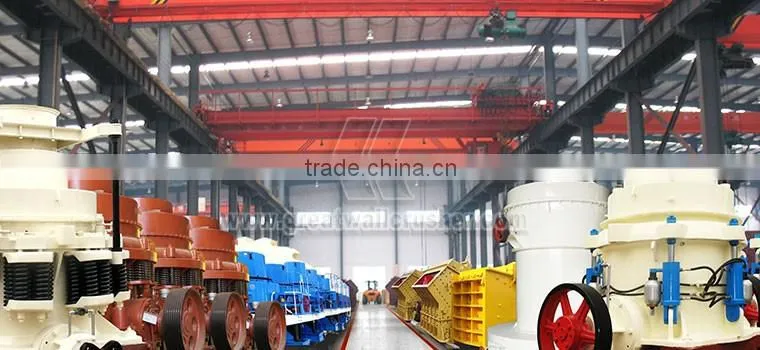

Great Wall Company is a professional machine manufacturer with more than 30 years' experience, which specializes in manufacturing all kinds of large and medium sized heavy industry machines. The company not only has established system of designing, testing, inspecting and measuring, but also all kinds of modern production equipments, such as casting , heat treating, welding, machining and so on .
Great Wall Company has professional technology and great production strength, which can meet customers' growing demands. We will spare no efforts to keep improving ourselves to develop our company to be a well-known international enterprise with core competitiveness.
We can not only provide wholeheartedly service but also longtime warranty after sale. Before sale, our professional engineer would customize the client according to the production situation and demand. The machine we recommend is NOT the most expensive, NOT maximum profit for us, but the suitable. We insist the concept of “win-win” at the basic of the maximum profit for client. Our aim is to ensure the client to expend least money but create the greatest profit.
After sale, the machine has the 12 months warranty. But one different point from other manufacturers is we provide the professional technology support in the production progress. Any problems about the production, our senior engineer would help to solve them.
50 TPH river stone cone crushing machine with 0-1 inch size
In a river stone crushing plant, a secondary crusher is need. The main specification as follows:
Material: river stone
Capacity: 50 TPH
Input size: 4 inch
Output size: 0-10 mm, 10 mm – 1 inch
When looking for a secondary crusher, we should take the raw material into consideration. The hardness of river stone belongs to medium and high hardness, so a cone crushing machine is suitable. Then we choose a right model according to the capacity, input size and output size. As for this situation, a cone crushing machine PYB 1200 is enough, which costs least.
Cone Crushing machine is applied to secondary and fine crushing with large efficient and low investment cost. So it enjoys a great prestige in crushing machine.
