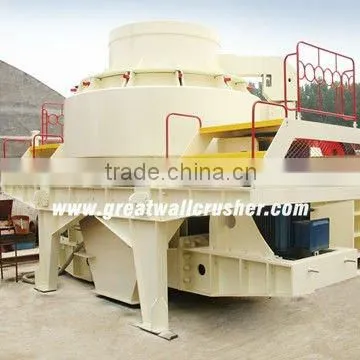

Help CenterVSI Sand Crusher - Great Wall
Related Products
-
VSI Sand Making Machine - Great WallUS$ 1 - 999,999MOQ: 1 Set -
VSI Sand Maker - Great WallUS$ 1,000 - 9,999MOQ: 1 Set
-
Sand Maker of Vertical Shaft Impact Crusher - Great WallUS$ 1,000 - 9,999MOQ: 1 Unit
-
VSI Mining EquipmentUS$ 1,000 - 9,999MOQ: 1 Unit
-
PCL Mining EquipmentUS$ 1 - 9,999,999MOQ: 1 Set
Specifications
VSI Sand Crusher1. Germany authoritative experts' design
2. Widely used
3. Thinning oil lubricant
4. Automatic maintenance.
"Great Wall Make Great Machine"
Different Colors&Packages are avaialble
ISO9001:2008 Approved,For test report details,pls contact "GreatWall"

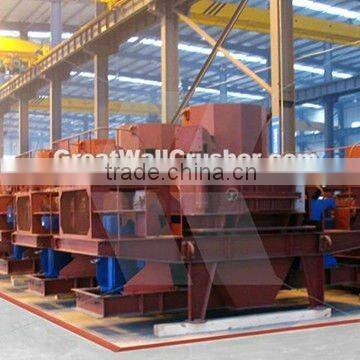

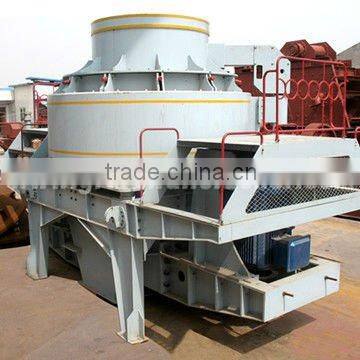

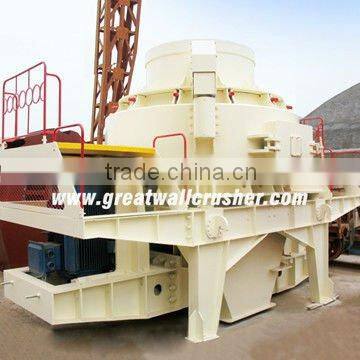

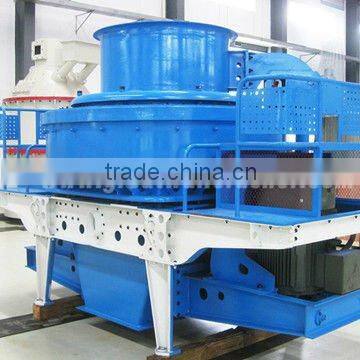

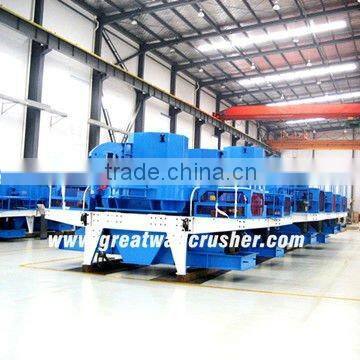

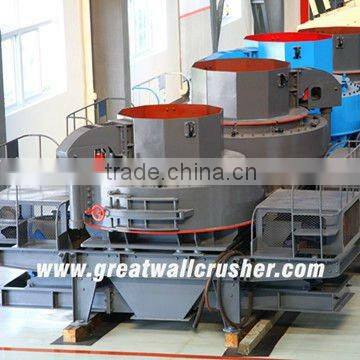

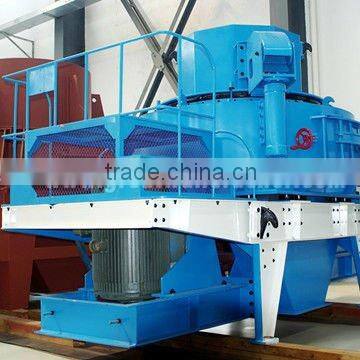

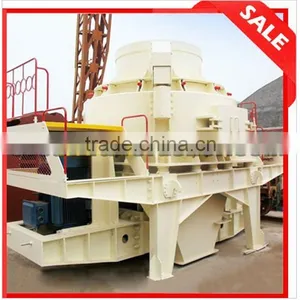

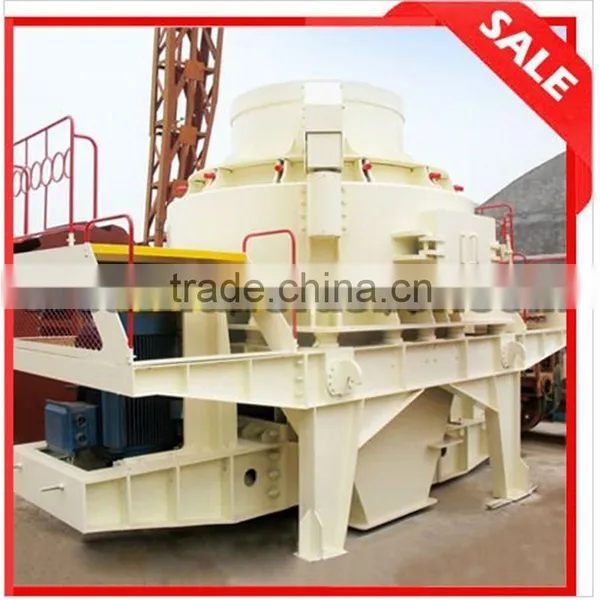

VSI Sand Crusher
I. VSI Impact Crusher Machine Usage and Application
This sand making machine is an advanced and high-efficiency equipment. It is the latest researched results basing on Germany technology. The machine is professional in producing qualified sand and stone for highway, high-speed railway, high building, city project, hydropower dam constructions, and concrete mixing plant. It is widely used in sand making and stone reshaping industry.
II. VSI Impact Crusher Machine Features
1. Oil supplied by two oil pumps, stops automatically if there is no oil; cooled by water, heating the motor firstly if start the machine in winter.
2. Hydraulic lifting when changing or checking the spare parts which makes it easy and convenient in maintenance.
3. Famous brand SKF or TIMKEN of the bearing makes the machine work well and few problems.
4. Vibrating alarm device; if the crusher works abnormally, alarm will sound to make the machine stop working so as to protect the crusher.
5. Special feeding structure; rock on rock, and rock on iron in the crusher making the stone to be crushed and reshaped.
6. Unique dustproof seal system, protects the lubrications parts from the dust outside.
7. Perfect design on material bumping angle reduces the friction between raw material and quick-wear parts, prolongs the service time of quick-wear parts and cuts the cost.
III. VSI Impact Crusher Machine Main Specifications
Model |
VSI-7611 |
VSI-8518 |
VSI-9526 |
VSI-1140 |
||
Capacity |
Center and Sides Feeding |
120-180 |
200-260 |
300-380 |
450-520 |
|
Center Feeding |
60-90 |
100-130 |
150-190 |
225-260 |
||
Max. Feeding Size (mm) |
Soft Material |
35 |
40 |
45 |
50 |
|
Hard Material |
30 |
35 |
40 |
45 |
||
Rotation Speed(rpm) |
1700-1890 |
1520-1690 |
1360-1510 |
1180-1310 |
||
Double Motor Power (kw) |
110 |
180 |
264 |
400 |
||
Overall Dimension |
3700×2150×2100 |
4140×2280×2425 |
4560×2447×2778 |
5000×2700×3300 |
||
Weight (t) |
7.8 |
10.3 |
16 |
25.6 |
||
Vibration Sensor |
Inspection scope: 0.1-20mm/s continual adjustment |
|||||
Hydraulic oil pump |
Motor Power of Double Oil Pump(Kw) |
2×0.31kw |
||||
Overall Dimension |
820×520×1270 |
|||||
Power of Oil Tank Heater |
2KW |
|||||
About Us:
With more than twenty years' history, Zhengzhou Great Wall Heavy Industry Machinery Co.,Ltd. is a manufacture which specialized in R&D, manufacturing and selling big and middle size heavy industry machinery. Since establishment, we make a good image in the market with scientific management, qualified products and perfect service
Our main products are crushers, grinding mills, other equipments for crushing plant and grinding plant, as well as building construction equipments. They are widely used in mining, building material, metallurgy, chemical, traffic, reservoir and so on. Our products are not only sold well in more than twenty provinces and cities in China, but also in tens of countries and regions in Eastern Europe, Middle East, Asia, Africa, North America, South America, and Oceania.
Now we have domestic top ranking production equipments and precise testing instrument, each process of products is strictly inspected to guarantee the products to achieving high ex-factory standard. Besides, we cooperate with many famous universities and scientific research institutions, so that can make technical warrantee for the products in it's developing, updating and improving.
"persons of ability guarantee the quality". Our company takes in persons of ability and gives training to the staffs annually to their quality and skill to meet the development of the company.
With the right of importing and exporting, the company owns an international trading department which is specialized in sales and exports, we provide the best service to the foreign clients.
During the past years, we stick to "honest, truth-seeking, innovation and hard working". To keep "Great Wall" brand, we will improve ourselves and try our best to make perfect products and the best service.
Do not hesitate send us inquiry for more details about the Hot Selling Qualified VSI Sand Crusher.
