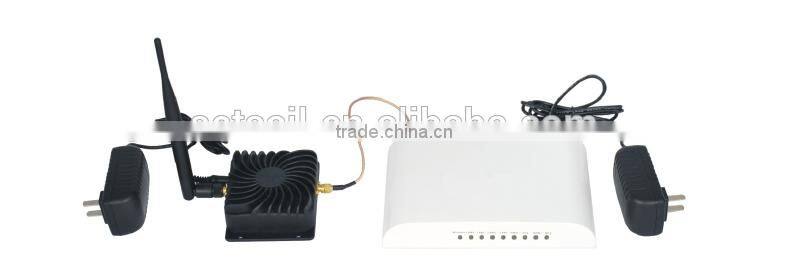

5.8GHz 2w WIFI Signal Booster ( 5.8G wifi signal booster 2w Amplifier )
Product Description:
The 5.8GHz WLAN signal booster is designed for IEEE 802.11a/n Wireless LAN applications. It adopts the direct sequence spread spectrum (DSSS) and orthogonal frequency division multiplexing (OFDM) technology of WLAN communication. The product is compatible with time division duplex (TDD) method of WLAN and using rapid microwave detection technology to provide high linearity amplification. The signal booster can work with most WLAN/Wi-Fi devices and increase the WLAN signal strength, therefore a largerWLAN coverage and more stable transmission rate .
Product Features
1. 25X the power, improving the link quality and coverage of certified WLAN devices
2. Working with certified IEEE 802.11 a/n Wireless LAN devices
3. Simply plug and play, no software is required
4. Equipped with LED to indicate wireless transmission and receiving
5. High quality RF connectors, RP-SMA
Technical & Merchanical Specifications
Frequency Range: 5.7~5.85GHz
Operating Voltage: 6~18V
Receiving Gain: 13dB±1
Transmission Gain: 14dB±1
Input Trigger Power Min: 3dBm Max:20dBm
Maximum Output Power(P1dB): 33dBm( 2W )
EVM: 3%@26dBm 802.11a 54Mbps OFDM 64QAM BW 20MHz
DC Supply Current: 425mA@Pout 26dBm 12V
Noise Figure: <3.0 dB
TX/RX Switch Time Delay: <1us
LED Indicator: Transmitter: green; Receiver: red
Operating Ambient Temperature: -40℃~+70℃
Operating Humidity: up to 95% rel. humidity
