Home > Products > RF Attenuator (High Frequency) > 10dB Attenuators
10dB Attenuators
- 20000 Piece / Pieces per Month
- FOB Shanghai
- T/T Credit Card
Product Details
Place of Origin: | Anhui, China | Brand Name: | SETSAIL | Model Number: | YF--FRCA-10W-N |
Packaging Details
5-7 Days after received payment and delivery Attenuator in time for 10dB Attenuators
Product Description
Specifications
1.Manufacturer of 10db Attenuators RF2.Power Rating:10W Attenuator
3.VSWR(max):1.2:1
4.Frequency Range:DC-3GHz
Fixed Attenuator
Attenuator is an electronic device which reduces signal power without appreciably distorting its waveform. Working in the opposite way of amplifiers which provide gain, attenuators actually kill gain.
Today, RF attenuators are widely applied in radio frequency signal conditioning and level control areas. They can be used to reduce the amplitude of an RF signal, match the impedances of sources and loads, and measure the gain or loss of a passive device made from voltage divider networks.
According to the technology they use, RF attenuators have three types: fixed attenuators, variable attenuators and switched attenuators.

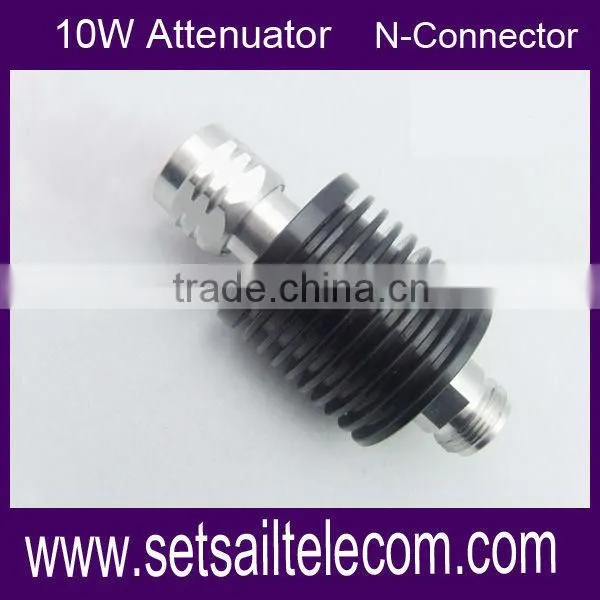

10W DC-3GHz Directional Fixed Coaxial 10 db Attenuators RF
Product Name | 10W Coaxial Attenuators
| ||||||
Model Number | YF-RFCA-10W-N | ||||||
Operating Frequency( GHz ) | DC-3.0 | ||||||
Impendence( Ohm ) | 50 | ||||||
VSWR | ≤1.20:1 | ||||||
Application | Indoor | ||||||
Average Power ( W ) | 10W | ||||||
Attenuation( dB ) |
| 10 |
| ||||
Tolerance( dB ) | ±0.8 |
|
| ||||
Interface | N (M) - N (F) | ||||||
Operating Temperature( °C ) | -40 ~ + 80 | ||||||
Dimensions( mm ) | See Below Outline Drawing | ||||||
Connector Material | Brass | ||||||
Outer Contact Plating | Black |
Company Profile
Hefei Setsail Telecom,Co,Ltd (established in 2002) is an Professional
Manufacturer of RF Passive Components:Power Spliter, Directional
Coupler, 3dB Hybrid Coupler, Combiner, Dummy Load/Termination, Attenuator, Duplexer, Isolator, Cable, Connector and Antenna.
1. Hefei Setsail Telecom,Co,Ltd is established in 2002.located in Hefei National Hi-tech Industry Development Zone.We focus on Microwave Technology Research,RF,Microwave Components and System Industry Development.Our products are widely used in communication network,satellite orientation,radar and military field.We offer a highly diversified product line that serves top tier telecom,satellite companies.
2. Products include 10 series and 100 designs with their own property right and authority approval.The products line have Hybrid Coupler,Power Splitter,Directional Coupler ,Coaxial Attenuator,Coaxial Termination,Cable
Assembly,Connector,Arrester,Filter,Duplexer,Combiner and so on .Customer designs (OEM/ODM) are also available.
3. Headquarters of Setsail is located at hi-tech developing district in Hefei Anhui,includeing two factories, At the same time,Setsail's market network has been all over the world.
4. Setsail company has a tremendous fellowship that is compased of many high-level technologists .And also has established a research institution which cooperating with some famous universities.(University of Science and Technology of China.)
5.All the staffs are filled with confidence ,attending the market cpmpetition and offering clients the exquisite technology,reasonable price,excellent quality and best service.
