Specifications
1.Manufacturer of 10db N-Male Attenuators 10W2.Power Rating:10W Attenuator
3.VSWR(max):1.2:1
4.Frequency Range:DC-3GHz
Fixed Attenuator
Attenuator is an electronic device which reduces signal power without appreciably distorting its waveform. Working in the opposite way of amplifiers which provide gain, attenuators actually kill gain.
Today, RF attenuators are widely applied in radio frequency signal conditioning and level control areas. They can be used to reduce the amplitude of an RF signal, match the impedances of sources and loads, and measure the gain or loss of a passive device made from voltage divider networks.
According to the technology they use, RF attenuators have three types: fixed attenuators, variable attenuators and switched attenuators.

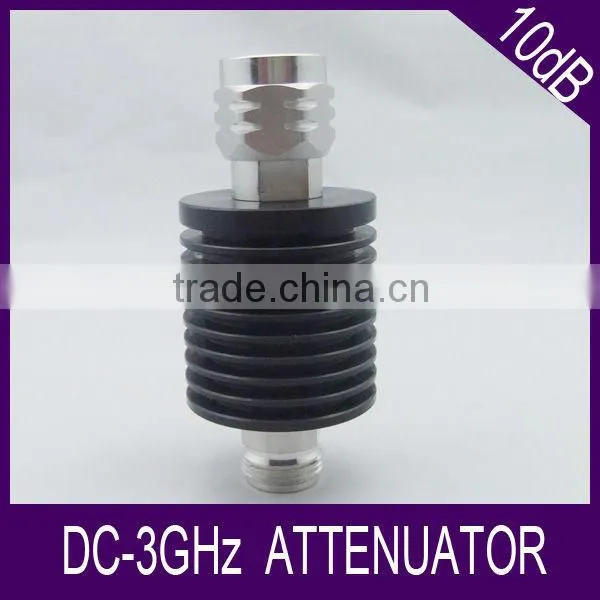

10W DC-3GHz Attenuators RF
Product Name | DC-3GHz Attenuator
| ||||||
Model Number | YF-ATT-3G-(3-60)-10W-NSF | ||||||
Operating Frequency( GHz ) | DC-3.0 | ||||||
Impendence( Ohm ) | 50 | ||||||
VSWR | ≤1.20:1 | ||||||
Application | Indoor | ||||||
Average Power ( W ) | 10W | ||||||
Attenuation( dB ) | 3-6 | 10 | 20 | 30 | 40 | 50 | 60 |
Tolerance( dB ) | ±0.5 | ±0.8 | ±1.0 | ±1.2 | ±2.0 | ±2.5 | ±3.0 |
Interface | N (M) - N (F) | ||||||
Operating Temperature( °C ) | -40 ~ + 80 | ||||||
Dimensions( mm ) | See Below Outline Drawing | ||||||
Connector Material | Brass | ||||||
Outer Contact Plating | Black | ||||||
