Specifications
1.Manufacturer of Attenuators in microwave2.Power Rating:200W Attenuators
3.VSWR(max):1.2:1
4.Frequency Range:DC-3GHz
Fixed Attenuator
Attenuator is an electronic device which reduces signal power without appreciably distorting its waveform. Working in the opposite way of amplifiers which provide gain, attenuators actually kill gain.
Today, RF attenuators are widely applied in radio frequency signal conditioning and level control areas. They can be used to reduce the amplitude of an RF signal, match the impedances of sources and loads, and measure the gain or loss of a passive device made from voltage divider networks.
According to the technology they use, RF attenuators have three types: fixed attenuators, variable attenuators and switched attenuators.

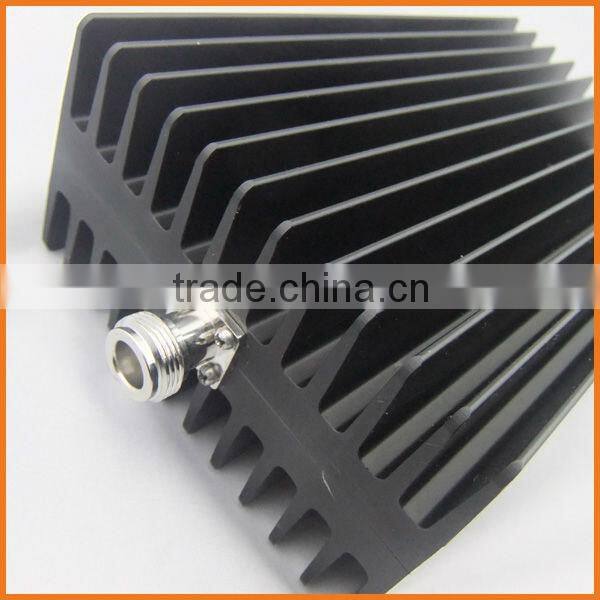

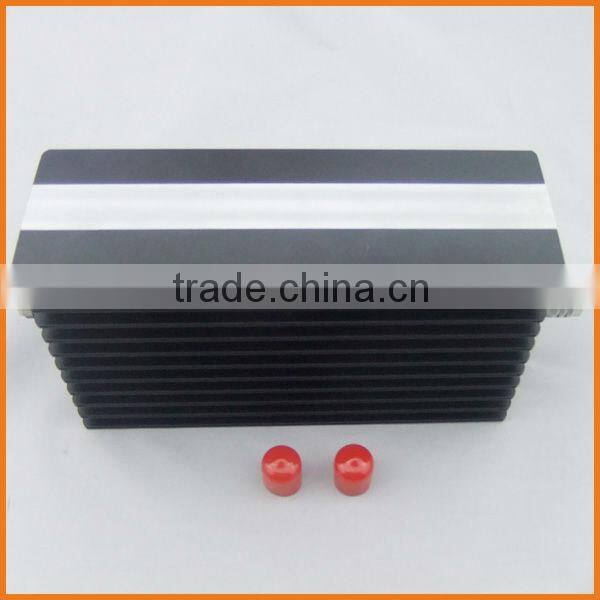

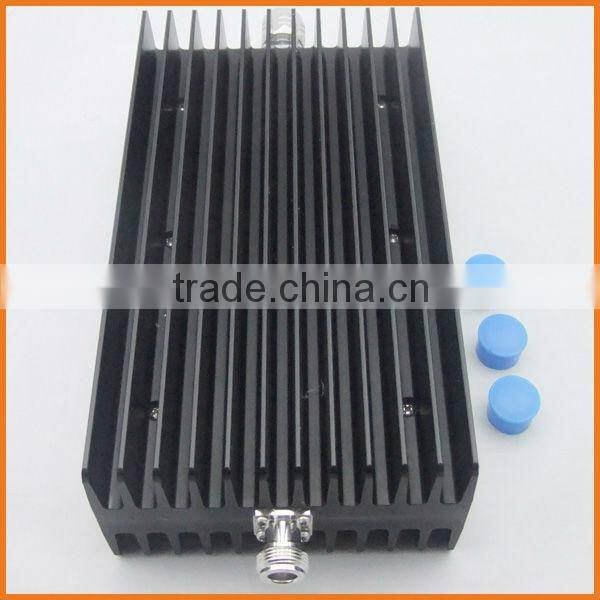

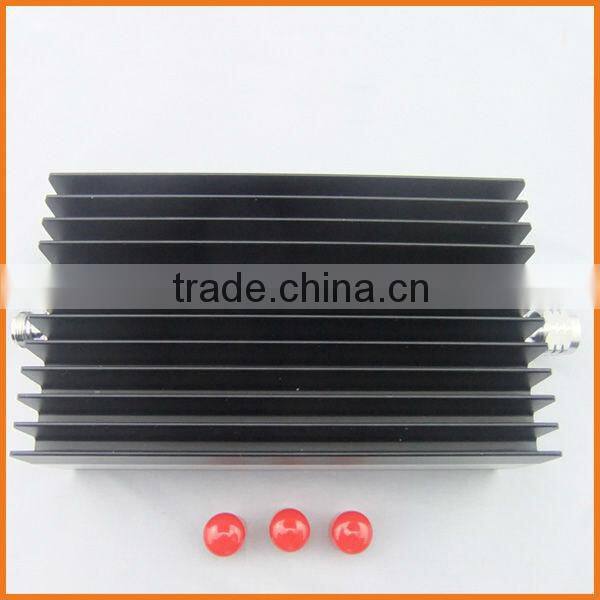

DC-3G fixed coaxial 200W Attenuators in microwave 60db RF
Product Name | 30W RF Coaxial 200W microwave Attenuator 60dB |
Model Number | YF-RFCA-200W-N |
Operating Frequency( GHz ) | DC-3.0 |
Impendence( Ohm ) | 50 |
VSWR | ≤1.20:1 |
Application | Indoor |
Average Power ( W ) | 200 |
Attenuation( dB ) | 60 |
Tolerance( dB ) | ±3.0 |
Interface | N (M) - N (F) |
Operating Temperature( °C ) | -40 ~ + 80 |
Connector Material | Brass |
Color | Silver |
