Help Center50W 20dB RF Attenuators
Related Products
Specifications
1. We are Manufacturer2. OEM Service is available
3. 50pcs in stock
4. Best Price and Service
5. Warranty Time:3 Years
Applications: 50W 20dB RF Attenuators
1. RF Fixed Coaxial Attenuator 50W is widely used in below fileds:
A. Mobile Communication Network Optimization and In-door distribution system.
B. Cluster communication, satellite communication, shortwave communication and hopping radio.
C. Radar, electronic navigation and electronic confrontation.
D. Aerospace equipment systems.
2.RF Fixed Coaxial Attenuator 50W is just one of SETSAIL's RF Attenuators Products Line. SETSAIL is capable of manufacturing and providing 1W, 2W, 5W, 10W, 15W, 20W, 25W, 30W, 50W, 100W, 200W, 300W, 500W RF Attenuator. The Frequency can reach DC-3G, DC-6G, DC-8G, DC-12.4G ,DC-18G, DC-26G, DC-40G. RF Connectors can be N-type, SMA-type, DIN-type, TNC-type and BNC-type.
Technical Specifications:
Main Specifications | |||||||
Part Number |
YF-ATT-3G-(3-50)-50-N |
||||||
Operating Frequency( GHz ) |
DC-3 |
||||||
Impendence( Ohm ) |
50 |
||||||
VSWR |
≤1.20:1 |
||||||
Application |
Indoor or Outdoor |
||||||
Average Power ( W ) |
50 |
||||||
Attenuation( dB ) |
3-6 |
10 |
20 |
30 |
40 |
50 | |
Tolerance( dB ) |
0.5 |
0.8 |
1.0 |
1.5 |
2.0 |
2.5 | |
Interface |
N(M)-N(F) |
||||||
Operating Temperature( °C ) |
-40 ~ + 80 |
||||||
Dimensions( mm ) |
See Below Outline Drawing |
||||||
Connector Material |
Brass |
||||||

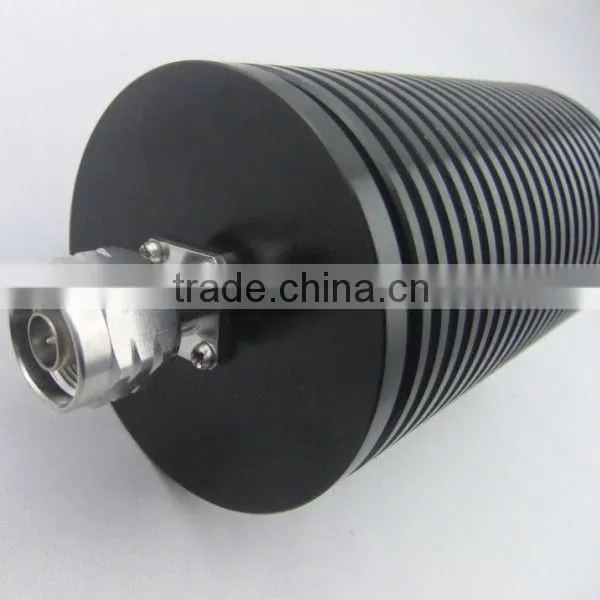

50W RF Fixed Coaxial Attenuator (N-connector)
