1. We are Manufacturer2. OEM Service is available
3. 200pcs in stock
4. Best Price and Service
5. Warranty Time:3 Years

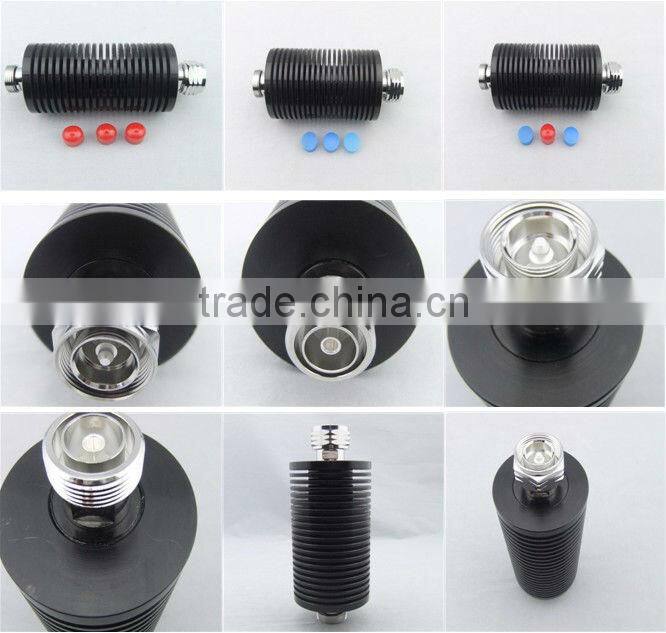

Applications: DIN (7/16), N 10dB Attenuator 100 watts
1. Coaxial 100W RF Attenuator is widely used in below fileds:
A. Mobile Communication Network Optimization and In-door distribution system.
B. Cluster communication, satellite communication, shortwave communication and hopping radio.
C. Radar, electronic navigation and electronic confrontation.
D. Aerospace equipment systems.
2. Coaxial Fixed 100W RF Attenuator is just one of SETSAIL's RF Attenuators Products Line. SETSAIL is capable of manufacturing and providing 1W, 2W, 5W, 10W, 15W, 20W, 25W, 30W, 50W, 100W, 200W, 300W, 500W RF Attenuator. The Frequency can reach DC-3G, DC-6G, DC-8G, DC-12.4G ,DC-18G, DC-26G, DC-40G. RF Connectors can be N-type, SMA-type, DIN-type, TNC-type and BNC-type.
Technical Specifications:
Main Specifications | |||||||
Part Number | YF-ATT-3G-(3-40)-100W-DINSF | ||||||
Operating Frequency( GHz ) | DC-3.0 | ||||||
Impendence( Ohm ) | 50 | ||||||
VSWR | ≤1.20:1 | ||||||
Application | Indoor or Outdoor | ||||||
Average Power ( W ) | 100 | ||||||
Attenuation( dB ) | 3-6 | 10 | 20 | 30 | 40 | 50 | 60 |
Tolerance( dB ) | ±0.5 | ±0.8 | ±1.0 | ±1.2 | ±2.0 | ±2.5 | ±3.0 |
Interface | DIN (M) - DIN (F) | ||||||
Operating Temperature( °C ) | -40 ~ + 80 | ||||||
Dimensions( mm ) | See Below Outline Drawing | ||||||
Connector Material | Brass | ||||||

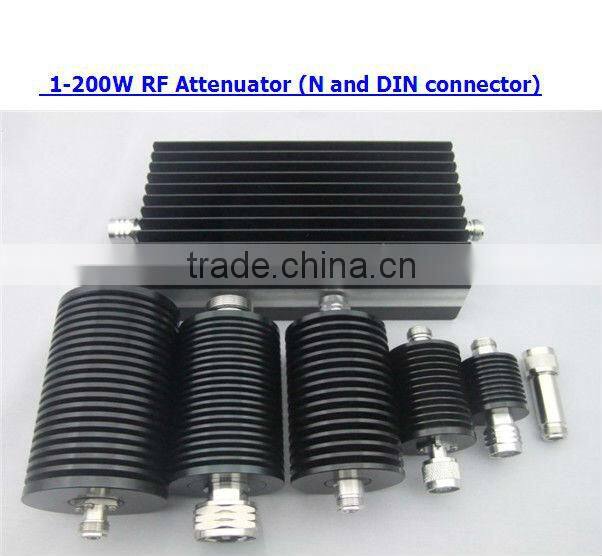

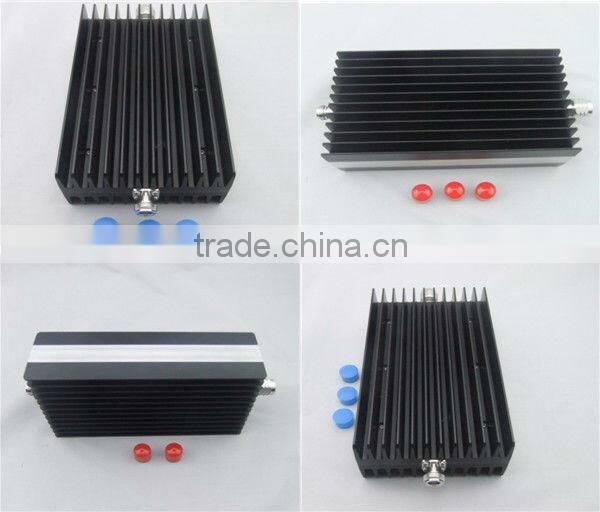

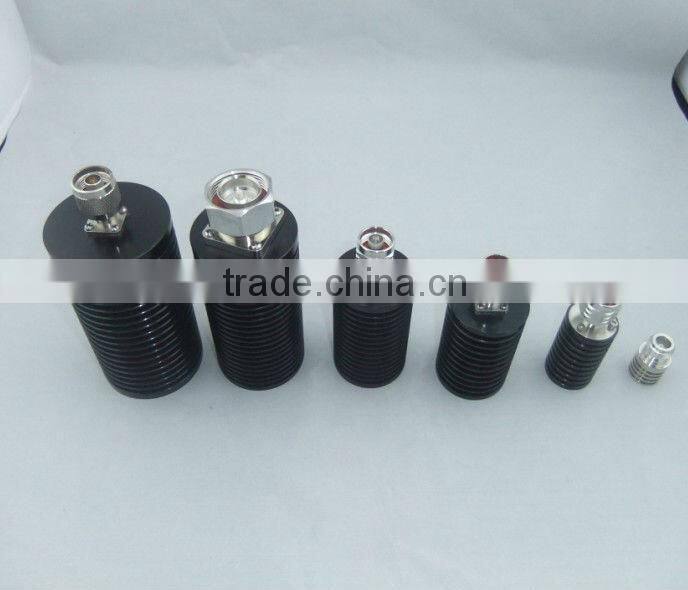

100 Watts RF Attenuator
1-200W RF Dummy Load/Termination
