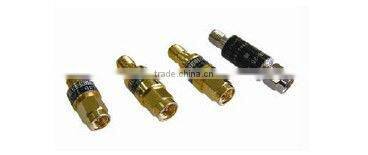

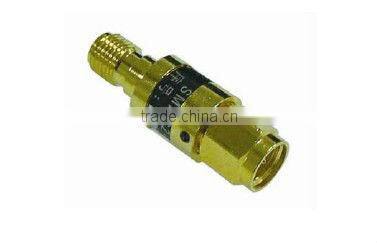

Help Center2W, SMA RF Fixed Attenuator DC-26.5G
Related Products
-
5W, DC-18G, SMA RF Coaxial AttenuatorNegotiableMOQ: 3 Pieces -
DC-4G, 200W RF Coaxial Fixed AttenuatorNegotiableMOQ: 3 Pieces
-
Fixed 20W RF Coaxial Attenuator DC-8GNegotiableMOQ: 1 Piece
-
DC-6, RF 20W Fixed Attenuators (3-40dB)NegotiableMOQ: 1 Piece
-
200W, DC-8GHz Coaxial AttenuatorNegotiableMOQ: 1 Piece
Specifications
1. We are Manufacturer2. OEM Service is available
3. 20pcs in stock
4. Best Price and Service
5. Warranty Time:3 Years
Applications: 2W, SMA RF Fixed Attenuator DC-26.5G
1. 2W, SMA RF Coaxial Fixed Attenuator is widely exproted to Middle East , India, North American, Australia, South American, Southeast Asia. In 2008, Setsail has successfully exported more than 10,000 pcs to one of Brazil customers, which is used in ZTE's IBS and BTS projects in Brazil. Products quality has been confirmed and accepted by oversea customers. The annual exporting quantity of the 2W, SMA RF Coaxial Fixed Attenuator is around 50,000pcs, especially to some big developping countries, like India, Paskitan, Brazil.
2. 2W, SMA RF Coaxial Fixed Attenuator is widely used in below fileds:
A. Mobile Communication Network Optimization and In-door distribution system.
B. Cluster communication, satellite communication, shortwave communication and hopping radio.
C. Radar, electronic navigation and electronic confrontation.
D. Aerospace equipment systems.
3. 2W, SMA RF Coaxial Fixed Attenuator is just one of SETSAIL's RF Attenuators Products Line. SETSAIL is capable of manufacturing and providing 1W, 2W, 5W, 10W, 15W, 20W, 25W, 30W, 50W, 100W, 200W, 300W, 500W RF Attenuator. The Frequency can reach DC-3G, DC-6G, DC-8G, DC-12.4G ,DC-18G, DC-26G, DC-40G. RF Connectors can be N-type, SMA-type, DIN-type, TNC-type and BNC-type.
Technical Specifications:
Main Specifications | |||||||
Part Number |
YF-ATT-26.5G-(1-30)-2W-SMA |
||||||
Operating Frequency( GHz ) |
DC-26.5 |
||||||
Impendence( Ohm ) |
50 |
||||||
VSWR |
≤1.35:1 |
||||||
Application |
Indoor or Outdoor |
||||||
Average Power ( W ) |
2 |
||||||
Attenuation( dB ) |
1-9 |
10 |
20 |
30 | |||
Tolerance( dB ) |
±1.0 |
±1.0
|
±1.0 |
±1.0 | |||
Interface |
SMA (M) - SMA (F) |
||||||
Operating Temperature( °C ) |
-40 ~ + 80 |
||||||
Dimensions( mm ) |
See Below Outline Drawing |
||||||
Connector Material |
Brass |
||||||
