Help CenterJIAYUJ-3/30 Four-column Hydraulic Plane Paper Cutting Machine
Related Products
-
Hydraulic Four-pillars Cutting MachineNegotiableMOQ: 1 Set -
Hydraulic Four-pillars Cutting MachineNegotiableMOQ: 1 Set
-
Hydraulic Plane Cutting MachineNegotiableMOQ: 1 Set
-
Hydraulic Four-column Plane Die Cutting Machine for Bag/Shoes/GlovesNegotiableMOQ: 1 Set
-
Automatic Shoe Die Cutting MachineNegotiableMOQ: 1 Set
Specifications
1.ISO 9001:20082.Minimum Order Quantity: 1 Set/SetsTrial Order
3.Packaging Details: standard wooden case package
Detailed Product Description
1.This cutting mahcine is economical,
2.low noise,
3.hi-speed cutting,
4..high security.

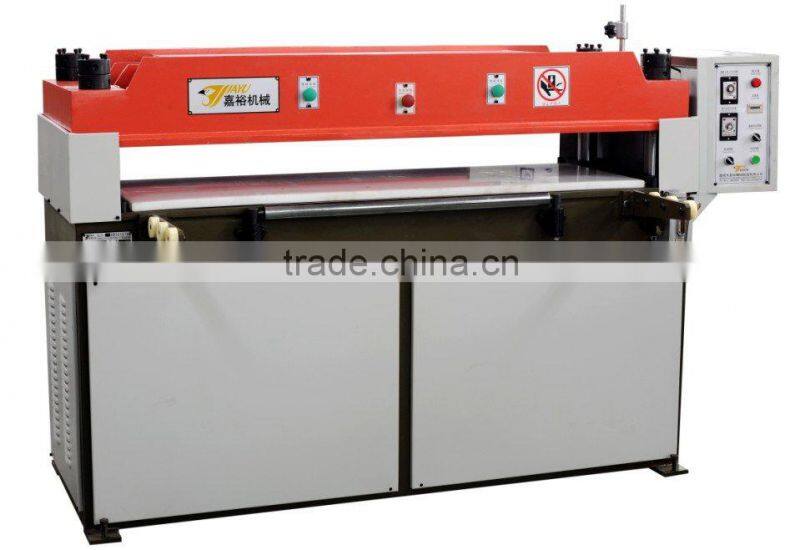

JIAYUJ-3/30 Hydraulic Four-column Plane Die Cutting Machine
Usage and characteristics
1. This machine is suitable for cutting cutter mold or paper,plate,textile,leather, foaming material, plastic, rubber floor and carpet.
2. The press plate guides for moving up and down is built by four steel pillars to ensure the better stabilily and the parallelism of upper and lower working sides.
3. Four-column guidance bushing adopt self-lubricating system and uses the self-lubricating bearing to reduce wears, so as to to improve the machine usage life.
4.The adoption of single cylinder and double ties trans-mission structure is benefit for balancing the two ends.
Main technical parameters
Maximum cutting force |
30Tons |
|
Distance from upper pressing board to worktable |
55-150mm |
Size of the upper pressing boardCutting area |
1600×550mm |
Main motor power |
2.2kW |
Electric Supply Voltage |
3x440/400/380/220/200V ,50/60 Hz |
Total weightapproximate |
1550kg |
Remark:We can make the machine according to your specifical order ,for example the color,the motor information ,the working table etc.
