1.Manufacturer of 3 dB hybrid coupler2.Low insert loss hybrid coupler
3.High isolation hybrid coupler
4.Din-F connector
A hybrid coupleris a passive device used in radio and telecommunications. It is a type of directional coupler where the input power is equally divided between two output ports. Since it is a special case of directional coupler, it is discussed in Power dividers and directional couplers.

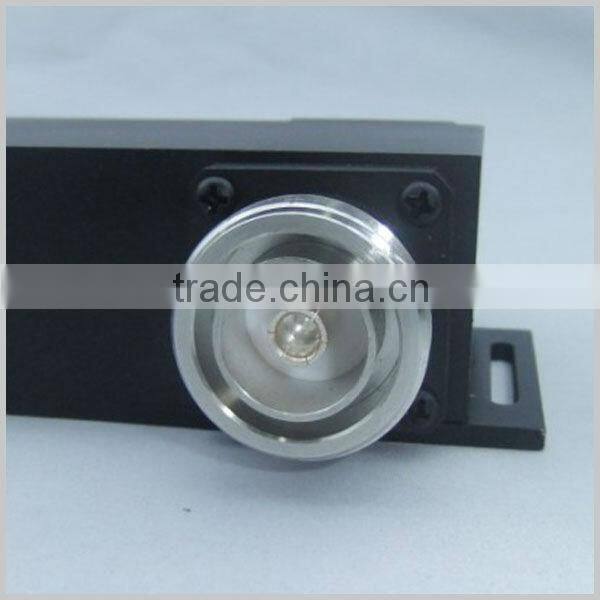

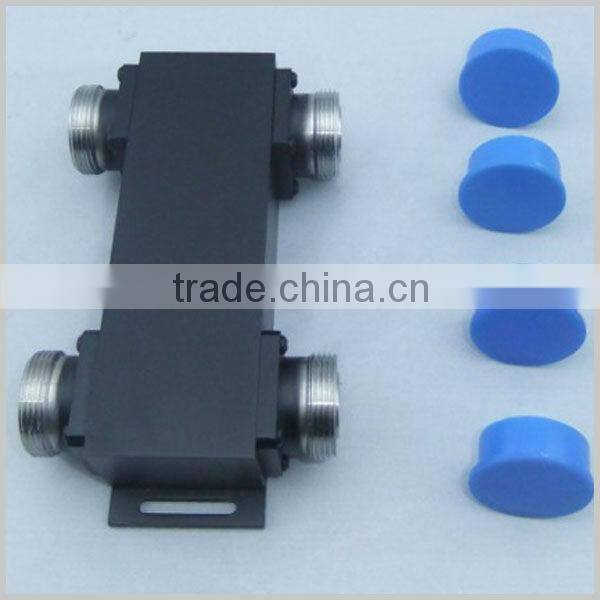

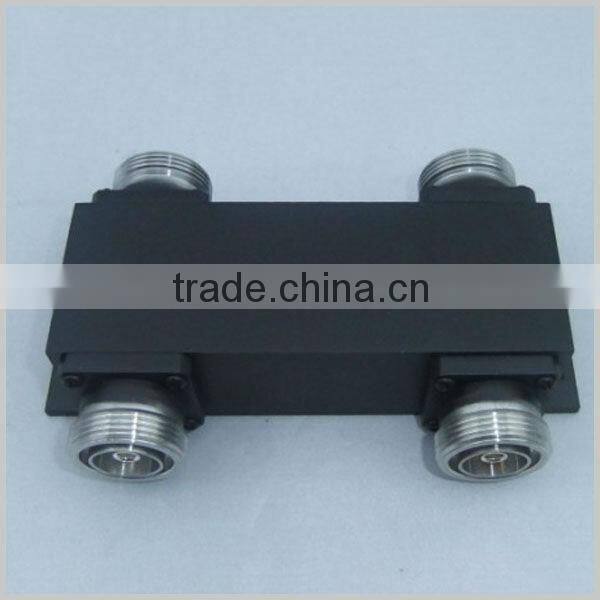

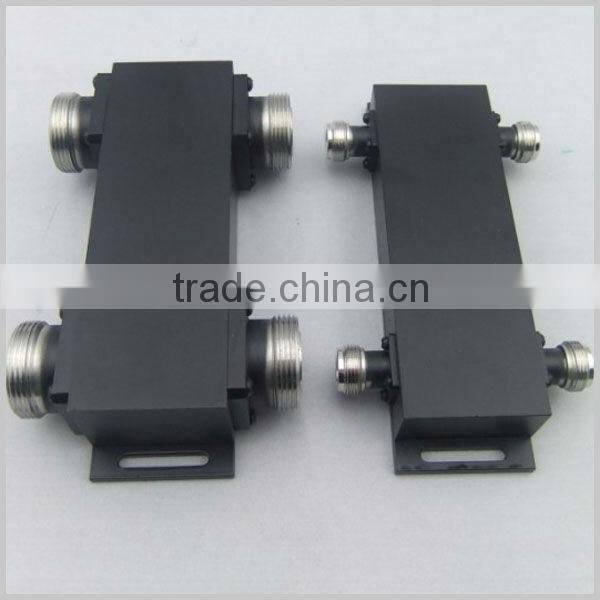

800-2500/800-2700/700-2700MHz 3dB Hybrid Coupler (DIN-female Connector)
Product Name | 800-2500MHz 3dB Hybrid Couplers (DIN-female Connector) |
Model | YFTX-RFHC-0825-3dB-200-DINF |
Frequency(MHz) | 800-2500698-2700MHz |
Insertion Loss(dB) | <=0.55 |
Isolation(dB) | >=23 |
Coupling(dB) | 3 |
VSWR | <=1.25:1 |
PIM3 | <=-140dBc@2×43dBm |
Waterproof | IP65 |
Power Capacity(W) | 200 |
Impedance(ohm) | 50 |
RF Connector | DIN-female |
Operating Temperature(deg) | -35~+70 |
Application | Indoor or Outdoor |
Material | Aluminum |
Color | Black-plated |
Relative Humidity | 5%-95% |
