Specifications
1. We are Manufacturer of RF Hybrid Coupler2. OEM Service is available
3. 200pcs in stock
4. Hybrid Coupler Best Price.
Applications:

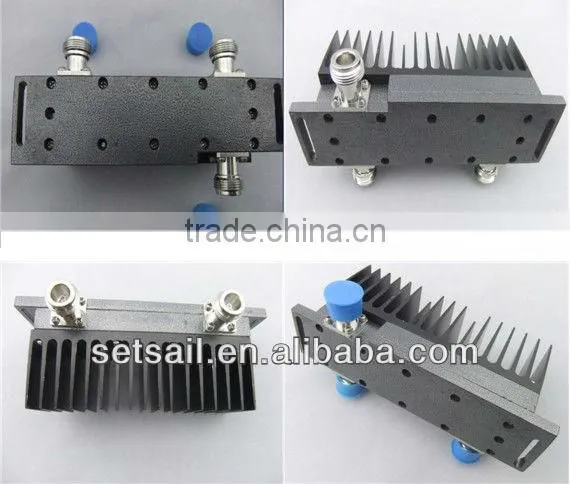

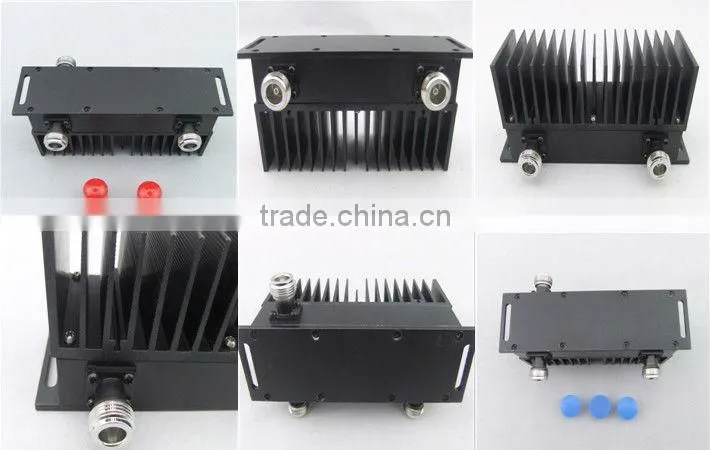

700-2700MHz, DCS+3G, 2 in 1 out, RF Hybrid Combiner/Coupler
1. Mobile Communication Network Optimization and In-door distribution system.
2. Cluster communication, satellite communication, shortwave communication and hopping radio.
3. Radar, electronic navigation and electronic confrontation.
4. Aerospace equipment systems
Technical Specifications:
| Model Number | YFTX-C-0825-NF | YFTX-C-0827-NF | YFTX-C-0727-NF |
| Frequency | 800-2500 | 800-2700 | 698-2700 |
| Insertion Loss(dB) | 0.65 | 0.7 | 0.7 |
| Isolation(dB) | 23 | 23 | 23 |
| Coupling(dB) | 3 | 3 | 3 |
| VSWR | 1.25:1 | 1.25:1 | 1.25:1 |
| Power Cacacity(W) | 200 | 200 | 200 |
| Impedance(ohm) | 50 | 50 | 50 |
| RF Connector | N-female | N-female | N-female |
|
Oper Temperature(deg)
Color
Relative Humidity
Material |
-25-+85
Black or Silvery-white
5%-95%
Aluminimum Alloy |
-25-+85
Black or Silvery-white
5%-95%
Aluminimum Alloy |
-25-+85
Black or Silvery-white
5%-95%
Aluminimum Alloy |
Note: Specifications can be changed according with customers' requirements.

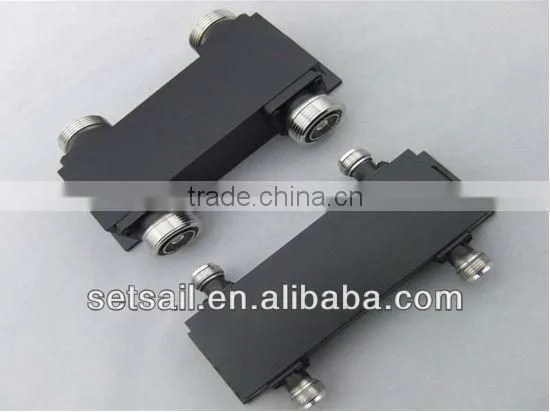

800-2500/800-2700/700-2700/670-2700mhZ, 2 IN 2 OUT Hybrid Coupler/Combiner (N/DIN connector)
Power Splitters:
Directional Couplers:
