Amlogic S805 TV Receiver 4-Core HD With IPTV Android Operation System

Name: Amlogic S805 TV Receiver 4-Core HD With IPTV Android Operation System
Brand: Chieta
SKU: 132980725
Availability: InStock

US$ 1 - 30 MOQ: 500 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Chieta

Model Number:

A38

Zhuhai Chieta Electrical Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Zhuhai/Shenzhen/Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Chieta

Model Number A38

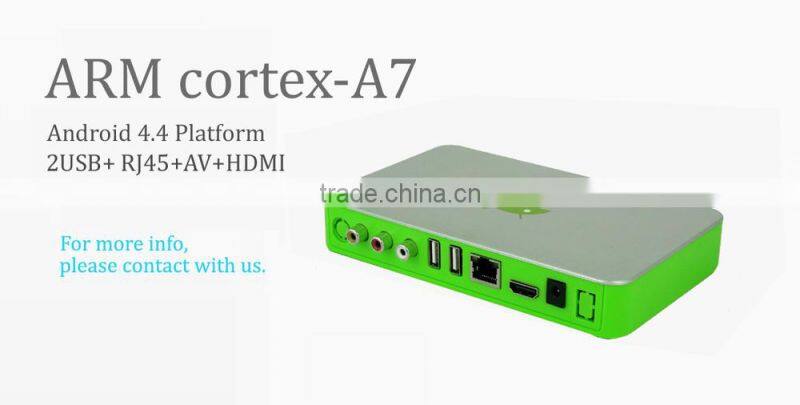

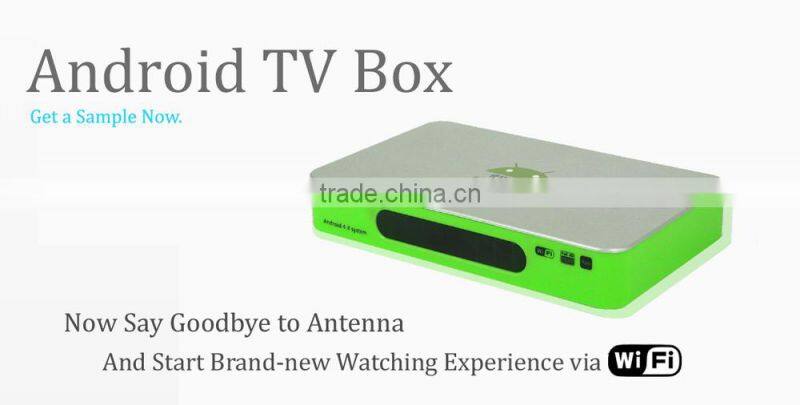

Amlogic S805 TV Receiver 4-Core HD with IPTV Android Operation System

*Android 4.4 platform with better experience

*ARM Cortex-A7 1.0G 4-Core Processor
*2USB+ RJ45+AV+HDMI port
*Built in WIFI module

Product Description

Specification Detail

Video	Decoder	1. 1MPEG2 ISO/IEC 13818-2 MP@ML,
		2. H.264(MPEG4 part 10) main and high profile level 4.1/MPEG-2 MP@HL
	Display Resolution	1920×1080,1280×720,720×480 (i&p)
	Supported Videos	AVC,MJPEG,DviX,DivX 5,DivX 3 Low,WMV3 (VC-1),H.263,MPEG-4 Visual,S-Mpeg 4 v3,MPEG-1 Video,MPEG-2 Video,Sorenson H263,On2 VP6,Real 2,Real 3,RealVideo 3,RealVideo 2,RealVideo 4,DivX 4,WMV1,WMV2,MPEG,MPEG-4 Visual ASP,Real 4,V_VP8,MS MPEG-4 1/2,VC-1,S-Mpeg 4 v2,VP6,H.265
Picture	Supported Picture	.jpg, .png, .bmp, .gif
	Supported Audio	MPEG-1 Audio layer 3,DTS,PCM,MPEG-1 Audio layer 2,WMA2,MPEG-1/2 L3,Vorbis,MPEG-2 Audio layer 3,AMR-WB,AMR-NB,AAC LC,AAC LC-SBR,ADPCM,AAC LC-SBR-PS,AAC Main,Cooker,WMA3,U-Law,G.729,AAC-LC,AAC-HE,MPEG-1L3,MPEG-2 Audio layer 2,AAC LTP,TrueHD,DTS-HD ,FLAC
Audio	Decoder	MPEG-1,MPEG-2(Layer I/II)
	Mode	LEFT/RIGHT/STEREO/MONO
	Frequency	32KHz,44.1KHz,48KHz
	Response	20HZ~20KHZ +/-2Db
AV Output	Video Bandwidth	SD:5.0MHz(-3dB),HD:30MHz(-3dB)
	Video Impedance	75Ω
	Video Voltage Level	1.0 Vp-p
	Audio Freq. Range	20~20KHz
	Audio Impedance	600Ω
	Audio Voltage Level	2V rms(5.6Vp-p)
Ethernet	Wifi Module	Optional
	External WIFI Mouse and Keypad	Support
	RF45 Port	Yes
Environment	Power input voltage	AC 100~240V,50Hz/60Hz
	Power Consumption	Max 12W
	Humidity	<95%
	Operation Temperature	0°C~40°C
