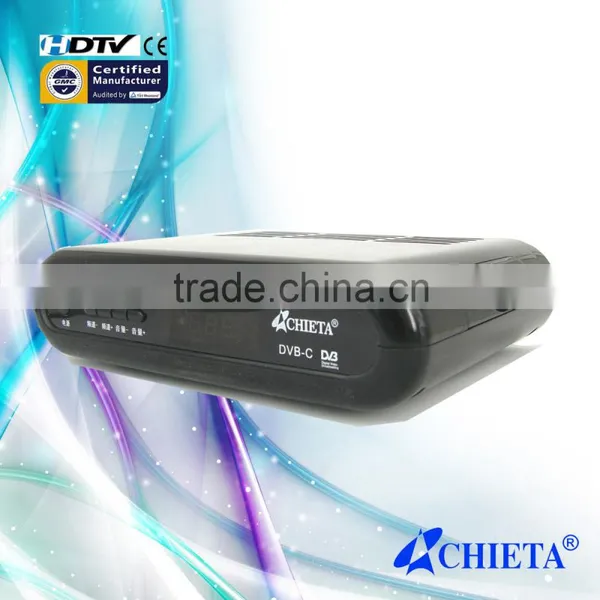

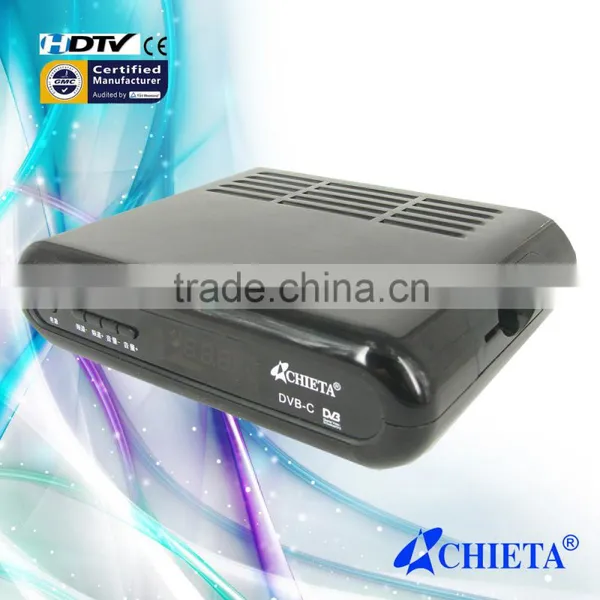

Montage Chipset DVB-C Digital TV Cable Decoder
*Fully compliant with DVB-C
*Supports 16QAM, 32QAM, 64QAM, 128QAM, 256QAM
*Supports low frequency LNB
*Multi-CA can be chosen(optional)
*Internal loader suport OTA
*Multi-search function
*PAL/ NTSC auto switch
*Multi language OSD
*Dynamic user interface
*Memory backup when lost power
*Two SCART output
*Composition video signal
*Digital sound output
*Standard EPG, NVOD
*Supports short cut menu
*Games
NOTICE: Dear Customer, you must contact your cable TV provider before you purchase any cable set top box to ensure they support the use of 3rd party cable set top boxes.
Hardware Specification | ||
Chip & Board |
Main Chip |
HM1521M |
SDRAM |
DDRi 16M*16bit*1pc |
|
TUNER Number |
TC2800 |
|
TUNER TYPE |
Silicon |
|
Front Panel |
LED |
Power Indicator (LED):(Standby, Lock) / show channel number and etc. |
Key |
7PCS(Power, Up, Down, Left, Right, Confirm& Menu) |
|
Smart Card Slot |
ISO 7816 |
|

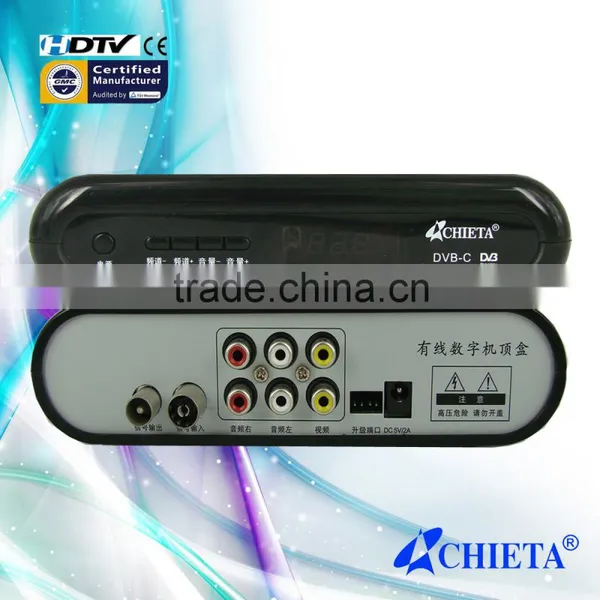

Rear Panel |
Tuner RF input connector |
IEC Female x1 |
Tuner RF Loop through connector |
IEC Male x1 |
|
CVBS |
x1 |
|
YPbPr |
x1 |
|
DC 5V Output |
x1 |
|
4-pin Software Update Port |
x1 |
|
Basic User Interface Features (common features) | ||
OSD |
Supported Language |
English, Chinese |
Subtitle |
English, Chinese |
|
TV System |
Display Mode |
720i, 576p, 576i, 480p, 480i |
Aspect Mode |
4:3,16:9 |
|
System Spec | ||
Video |
Decoder |
MPEG-1/2 Video Decoder |
Display Resolution |
2. 720 * 576(PAL) 720 * 480(NTSC) |
|
Standard |
ISO/ IEC 13818-2 MPEG- 2 MP@ML |
|
Audio |
Standard |
ISO/IEC -11172-3 |
Decoder |
MPEG-1 Layer I/II |
|
Mode |
Dual (main/sub), Stereo |
|
Frequency |
44.1,48KHz |
|
Response |
20HZ~20KHZ +/-2Db |
|
SNR |
min.76dB |
|
Input& Output |
Input impedance |
75Ω |
Signals level |
-25dBmV~+25dBmV(64QAM) |
|
Input Frequency |
47MHz-862MHz |
|
Decoding |
16/32 /64 /128 /256 QAM |
|
Support scope |
3.6-6.952MS/s |
|
Power Supply |
Power input voltage |
DC 5V 50~60Hz |
Power Consumption |
10W max |
|
Operation Temperature |
0°C~40°C |
|
