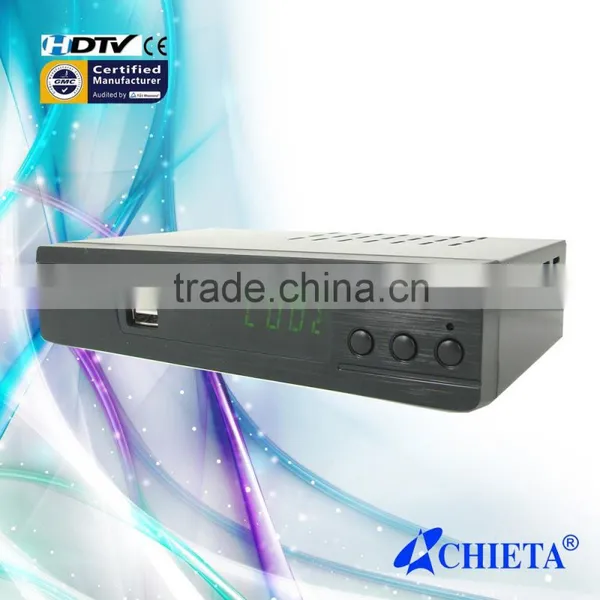

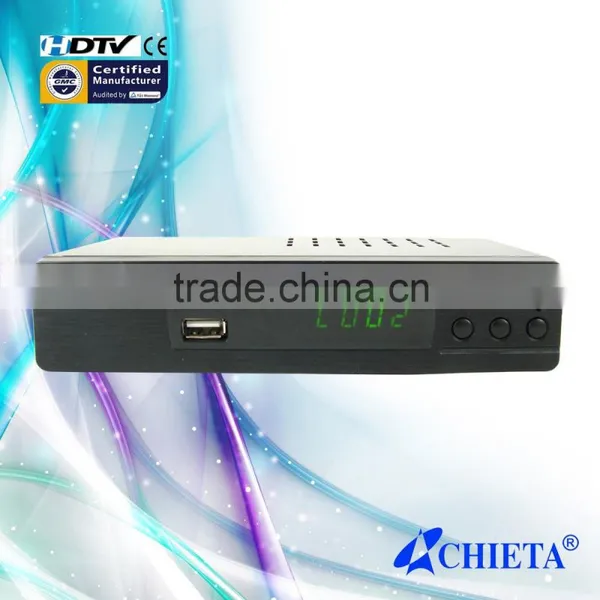

Full HD 1080p DVB-T2 Terrestrial Digital TV Receiver with PVR
|
|
|
|
* Fully compliant with DVB-T2 standard
* MPEG-2 MP@ML/ MPEG-4, H.264 SD& HD Decoding
* MPEG Layer 1& 2
* Supports AVI, MPG, VOB, MPEG, DIV, etc multimedia play formats
* Video resolution support: 1080P/ 1080i/ 720P/ 720i/ 576
* Multi language menu supported
* 1000 TV channels and radio programs available
* Supports USB upgrade, PVR playback
* Standard Electronic Program Guide(EPG)
* Supports multi-search function, including automatic/ manual/ list search
* Screen display ratio: 4:3 and 16:9
* Various channel editing function(Favorites, Move, Skip, Lock, and Delete)
* Switch power supply of AV 90-250V
MPEG4 |
Fully SD/HD DVB-T/T2, SD/HD MPEG2 and MPEG4 AVC H.264 |
Resolution |
Full HD,support up to 1080P |
PAN/NTSC |
Automatic PAL/NTSC conversion |
Scan |
Auto and manually scan all available TV and radio channels |
Channels Number |
Aspect ratio 16:9 and 4:3, 1000 channels memory |
OSD Language |
OSD language:Arabic, Bosnian, French, German, Russian, English |
|
|
|
|
EPG |
Small windows screen picture with EPG graphic menu,7-Day EPG function |
Channel Search |
Auto search & Manual search function |
SoftUpgrade |
Software upgrade via USB |
Teletext |
Support teletext/ subtitle/audio language selection,VBI Teletext,Teletext/ Bit Map subtitle, compliant with ETS1 |
control |
Parental control |
Save Channel |
Automatic save for last channel |
LCN |
Support Logic Channel Number(LCN) |
USB |
USB2.0 Front Panel, |
Multimedia Format |
Picture: JPEG,BMP,PNG |
|
Audio: MP3,WMA |
|
Video: DivX,MPG,MKV,MP4,AV |
|
|

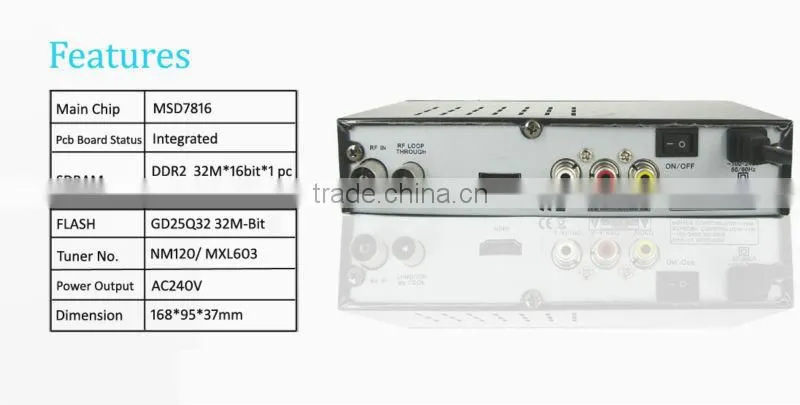

1.Main Chip Sets |
|
Flash Memory |
32MB Serial Flash |
DDR2 Memory |
512MB |
Demodulator IC |
|
2.Tuner |
|
Input Frequency |
VHF: 174~230MHz,UHF: 470~862MHz |
RF input Level |
-20~-81dBm |
IF Bandwidth |
7MHZ and 8MHZ |
Modulation |
QPSK,16QAM,64QAM,256QAM |
3.USB Decode |
|
DVR supporting |
Stereo/MONO/Left/Right |
Media Supporting |
USB2.0 Port, playback the media in USB flash disk or USB HDD |
USB2.0 HOST |
DVR with USB HDD, Time shifting with USB HDD |
4.Multimedia support format |
|
music |
MP3,WMA |
photo |
JPEG,BMP,PNG |
5.Video Decode |
|
Decode Format |
MPEG-2 MP@HL, MPEG-4 SP, DIVX1 3.11(Optional), 4.X, 6.X,FLV Format, H.264MP@HL, VC-1,RM&RMVB(Optional) |
Output Format |
1080p,1080i,720p,576p,576i,480p,480i |
Aspect Ratio |
4:3/16:9/Letterbox/ selectable |
Output Port |
HD(V1.3C),YPbPr,CVBS |
6.Audio Decode |
|
Decode Format |
MPEG-1,MPEG-2 (Layer I/II),MP3 |
Audio output |
S/PDF(Coaxial),RCAX2(L/R) |
7.AV Output |
|
Video Bandwidth |
5.5MHz(-3dB) |
Video Impedance |
75Ω |
Video Voltage Level |
1.0 Vp-p |
Audio Freq. Range |
20~20KHz |
Audio Impedance |
600Ω |
Audio Voltage Level |
2V rms(5.6Vp-p) |
| Unit Packing Size | PCS/ Carton |
| 190*180*45mm | 20 pcs |
| Carton CBM (0.03m3) | QTY per Container |
| 41*30*33 cm | 20GP: 12100pcs |
| Box Type | 40GP: 27000pcs |
| Color/ Neutral | 40HQ: 33000pcs |
| Unit Weight: | Carton Weight: |
| approx. 0.5kg | 10.5kgs |
