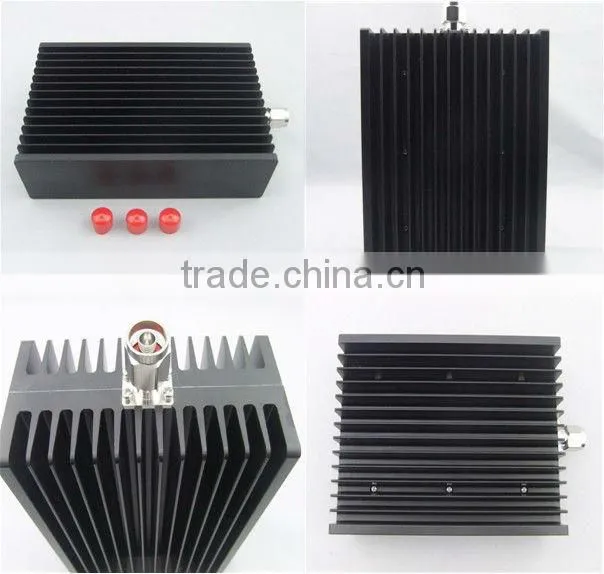

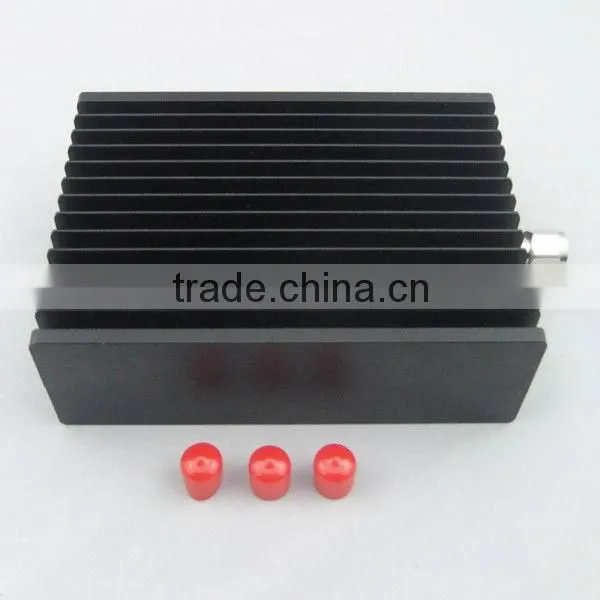

Help Center100W RF Termination Load DC-3G
Related Products
-
DC-3G, 100 Watts RF Load TerminationUS$ 1 - 200MOQ: 1 Piece -
DC-3000MHz, 100 Watts RF Power TerminatorUS$ 1 - 200MOQ: 1 Piece
-
DC-3000MHz, 100W RF Coaxial Termination LoadUS$ 1 - 200MOQ: 1 Piece
-
Coaxial RF Terminations/Dummy Load, 100W,200WUS$ 5 - 10MOQ: 10 Pieces
-
200W N-M RF TerminationsNegotiableMOQ: 20 Pieces
Applications: DC-3G, 100W RF Termination Load (N or 7/16 DIN connector)
1. DC-3000MHz, 100W RF Terminator/ Dummy Load is widely exproted to Middle East , India, North American, Australia, South American, Southeast Asia. In 2008, Setsail has successfully exported more than 3,000 pcs to one of India customers, which is used in ZTE's IBS and BTS projects in Pakistan. Products quality has been confirmed and accepted by oversea customers. The annual exporting quantity of this 100W RF Terminator Dummy Load is around 10,000pcs, especially to some big developping countries, like India, Paskitan, Brazil.
2. DC-3000MHz, 100W RF Terminator/ Dummy Load is widely used in below fileds:
A. Mobile Communication Network Optimization and In-door distribution system.
B. Cluster communication, satellite communication, shortwave communication and hopping radio.
C. Radar, electronic navigation and electronic confrontation.
D. Aerospace equipment systems.
3. DC-3000MHz, 100W RF Terminator/ Dummy Load is just one of SETSAIL's RF Load Products Line. SETSAIL is capable of manufacturing and providing 1W, 2W, 5W, 10W, 15W, 20W, 25W, 30W, 50W, 100W, 200W, 300W, 500W RF Dummy Load. The Frequency can reach DC-3G, DC-6G, DC-8G, DC-12.4G ,DC-18G, DC-26G, DC-40G. RF Connectors can be N-type, SMA-type, DIN-type, TNC-type and BNC-type.
Technical Specifications:
Model: |
YFTX-RT-100W-3-N-M |
Frequency |
DC-3GHz |
Power Capacity |
50W |
Return Loss |
20dB |
VSWR |
1.20:1 |
Impedance |
50ohm |
Connector |
N-male |
Temperature |
-40 deg to +80 deg |
Weight |
0.25kg |
Note: Specifications can be changed according with customers' requirements.
