Specifications
1. We are Manufacturer of RFLoad2. OEM Service is available
3. 200pcs in stock
4. Best Price and Service
5. Fast Delivery
Applications:
1. 50W RF Loads Opens is widely exproted to Middle East , India, North American, Australia, South American, Southeast Asia. In 2008, Setsail has successfully exported more than 20,000 pcs to one of India customers, which is used in ZTE's IBS and BTS projects in India. Products quality has been confirmed and accepted by oversea customers. The annual exporting quantity of this 50W Coaxial Load is around 10,000pcs, especially to some big developping countries, like India, Paskitan, Brazil.
2. 50W RF Loads Opens is widely used in below fileds:
A. Mobile Communication Network Optimization and In-door distribution system.
B. Cluster communication, satellite communication, shortwave communication and hopping radio.
C. Radar, electronic navigation and electronic confrontation.
D. Aerospace equipment systems.
3. 50W Load Opens is just one of SETSAIL's RF Load Products Line. SETSAIL is capable of manufacturing and providing 1W, 2W, 5W, 10W, 15W, 20W, 25W, 30W, 50W, 100W, 200W, 300W, 500W RF Dummy Load. The Frequency can reach DC-3G, DC-6G, DC-8G, DC-12.4G ,DC-18G, DC-26G, DC-40G. RF Connectors can be N-type, SMA-type, DIN-type, TNC-type and BNC-type.

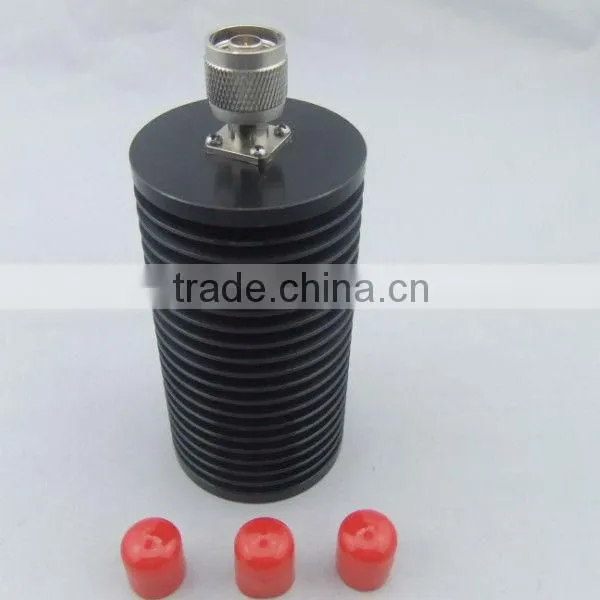

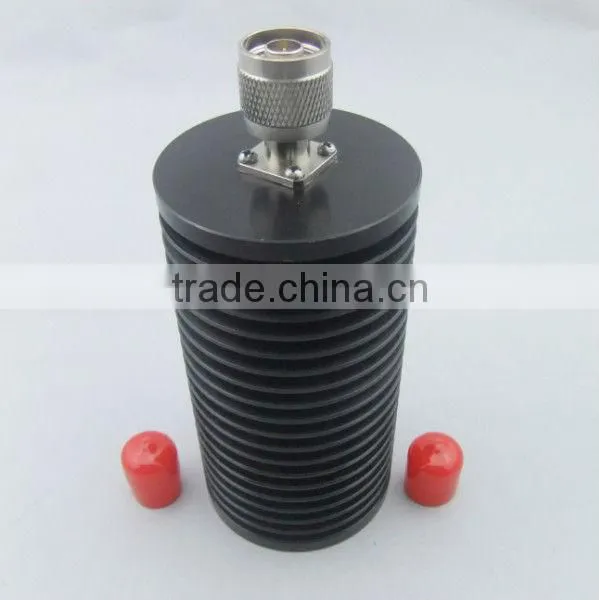

RF Loads Opens (50W, DC-3GHz, N-male)
Technical Specifications:
Model: |
YFTX-RT-50W-3-N-M |
Frequency |
DC-3GHz |
Power Capacity |
50W |
Return Loss |
20dB |
VSWR |
1.20:1 |
Impedance |
50ohm |
Connector |
N-male |
Temperature |
-40 deg to +80 deg |
Weight |
0.25kg |
Note: Specifications can be changed according with customers' requirements.
