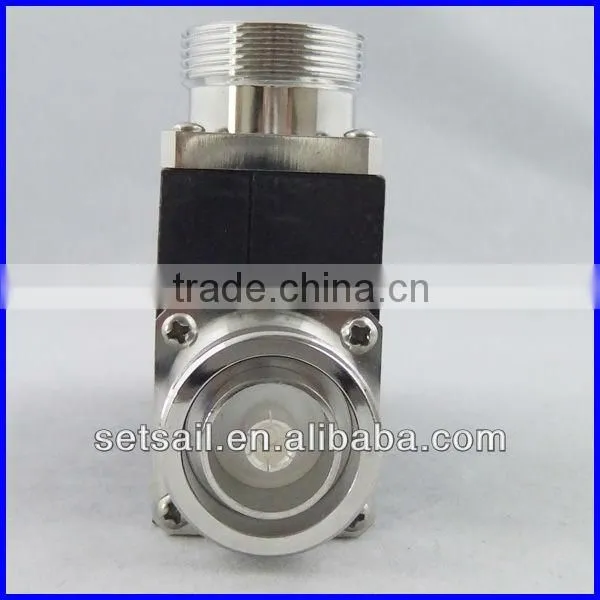

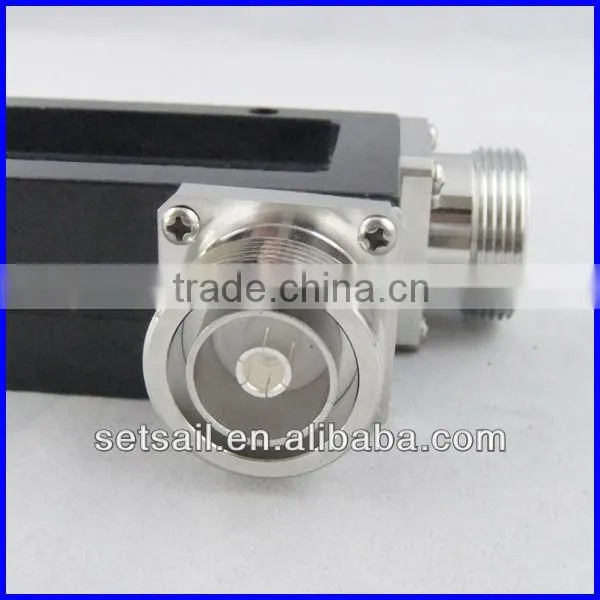

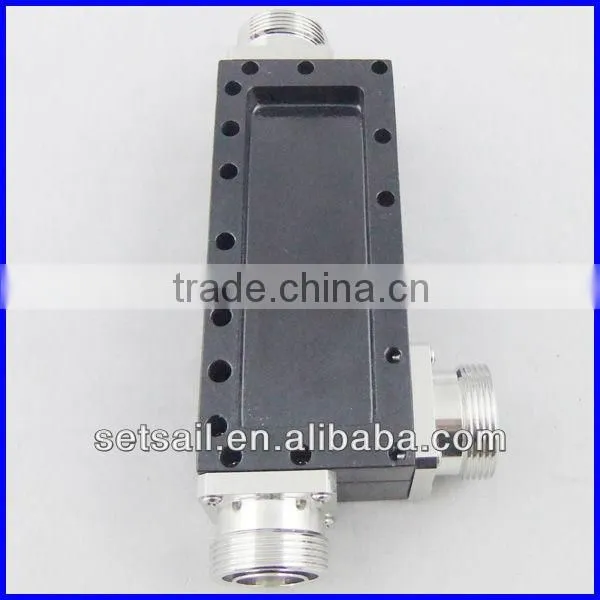

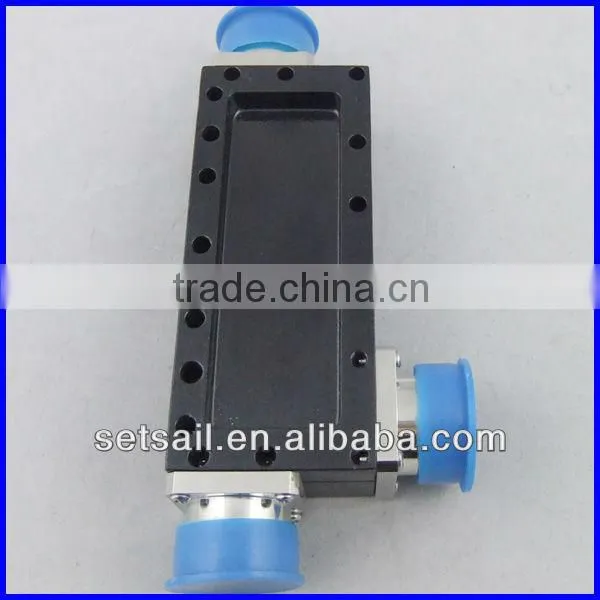

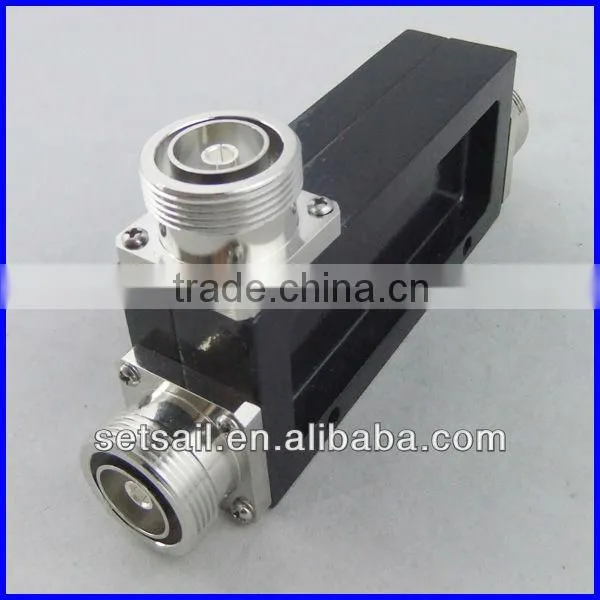

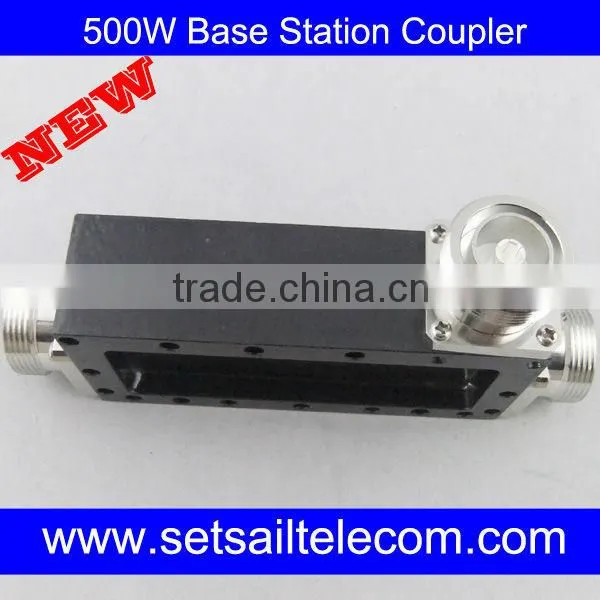

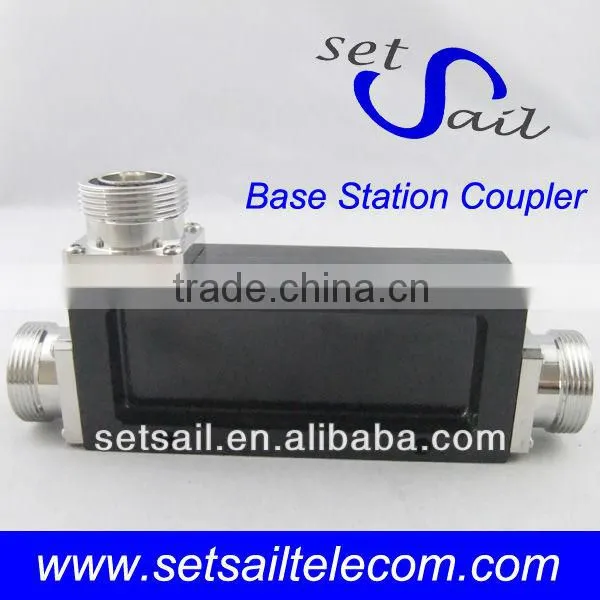

500W 670-2700MHz Base Station 30dB Coupler DIN-F

Name: 500W 670-2700MHz Base Station 30dB Coupler DIN-F
Brand: SETSAIL
SKU: 132978151
Availability: InStock

Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Anhui, China

Brand Name:

SETSAIL

Model Number:

YF-DC-627-30-DIN

Hefei Setsail Telecom Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

FOB Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Anhui, China

Brand Name SETSAIL

Model Number YF-DC-627-30-DIN

Specifications

1. Manufacturer of RF base station 30dB Coupler
2. 800-2500MHz, 500W
3. OEM Service
4. ZTE Supplier

500W 670-2700MHz Base Station 30dB Coupler DIN-F

Model	YF-DC-627-5-DIN -DC-DC	YF-DC-627-6-DIN	YF-DC-627-7-DIN	YF-DC-627-10-DIN	YF-DC-627-15-DIN	YF-DC-627-20-DIN	YF-DC-627-30-DIN	YF-DC-627-40-DIN	YF-DC-627-50-DIN
Coupling(dB)	5±0.8dBBBBBB	6±0.8dB	7±1dB	10±1dB	15±1.2dB	20±1.2dB	30±1.5dB	40±2.0dB	50±2.0dB
Insertion Loss(dB)	2.0dB	1.75dB	1.45dB	0.8 dB	0.45dB	0.4 dB	0.35 dB	0.30 dB	0.25 dB
Isolation(dB)	25 dB	26 dB	27dB	28dB	32dB	35 dB	45 dB	50dB	60dB
Frequency(MHz)	800-2500MHz800-2700MHz/700-2700MHz/670-2700MHz
VSWR	≤1.3:1
3^rd order IMD	-120dBc or -140dBc or -150dBc
Power Capacity(W)	500Wmax
Impedance(ohm)	50Ω
RF Connector	DIN-F
Temperature(deg)	-40°C ~ +80°C
Color	Black-plated or Silvery-white Plated
IP Grade	IP60 or IP65
Weight(kg)	0.705
