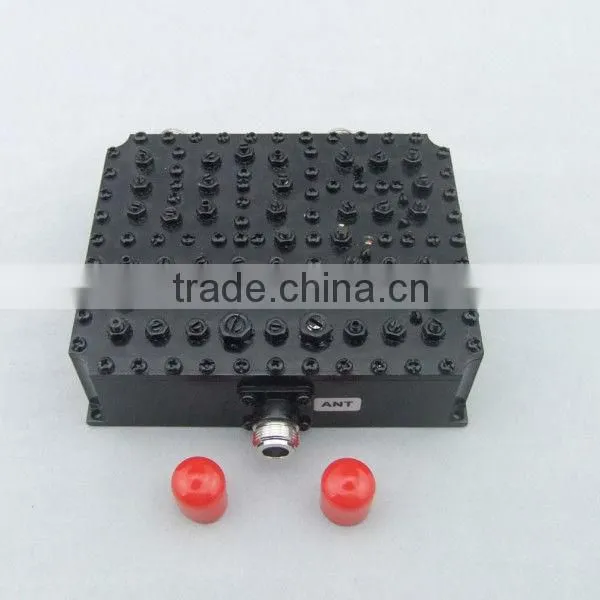

Help CenterDCS1800/WCDMA2100 RF Two Band Combiner
Related Products
-
DCS1800/WCDMA2100 RF Combiner 2 WayUS$ 1 - 80MOQ: 1 Piece -
GSM/TDA&TDB, RF Diplexer CombinerUS$ 1 - 100MOQ: 1 Piece
-
880-960/1920-2170MHz, RF Combiner DiplexerUS$ 1 - 100MOQ: 3 Pieces
-
800-960/1920-2170MHz, RF Cavity CombinerUS$ 1 - 100MOQ: 1 Piece
-
380-960/1710-2200MHz, RF VHF DuplexerUS$ 100 - 500MOQ: 10 Pieces
Specifications
We are manufacturer and OEM1.Low Insertion Loss
2.Low VSWR
3.Short Lead Time and Fast Delievery
4.Competitive Price
Applications: DCS1800/WCDMA2100 RF Two band Combiner
1. Mobile Communication Network Optimization and In-door distribution system.
2. Cluster communication, satellite communication, shortwave communication and hopping radio.
3. Radar, electronic navigation and electronic confrontation.
4. Aerospace equipment systems.
Technical Specifications:
Model | YFTX-RF-06-NF | |
| Channel | CH1 | CH2 |
Frequency(MHz) | 1710-1880 | 1920-2170 |
Insertion Loss(dB) | ≤0.8dB | ≤0.8dB |
Passband Ripple(dB) | ≤0.6dB | ≤0.6dB |
Outband Rejection(dB) | ≥80@CH2 | ≥80@CH1 |
VSWR | ≤1.25 | |
IM3 | ≤-120dBC@2×43dBm | |
Impedance(ohm) | 50 | |
Power(W) | 200 | |
Operating Temperature(deg) | -30~+65°C | |
Connector Type | N-K | |
Dimensions(mm) | 136*110*36 (Without Connectors) | |
Related Products:
800-2200/2400-2500MHz RF Dual-band Combiner
10,000pcs in Stock for Urgent Need for Customers
Power Splitters:
Directional Couplers
RF Attenuators
RF Dummy Load
