Specifications
We are manufacturer and OEM1.Low Insertion Loss
2.Low VSWR
3.Short Lead Time and Fast Delievery
4.Competitive Price

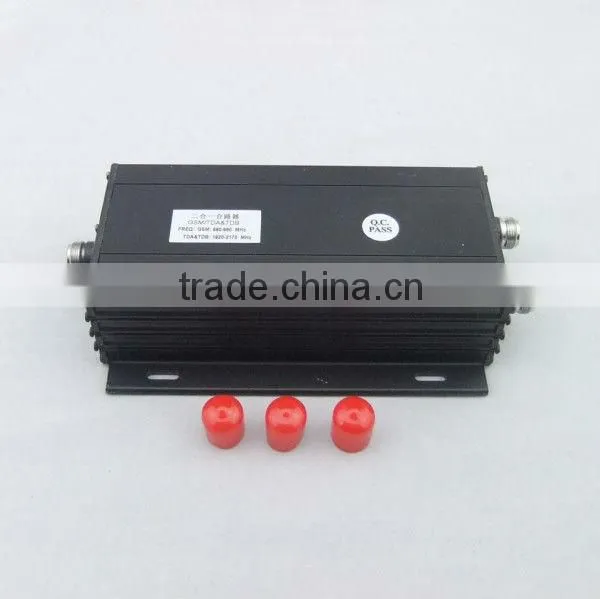

Applications: 880-960/1920-2170MHz, RF Diplexer Combiner
1. Mobile Communication Network Optimization and In-door distribution system.
2. Cluster communication, satellite communication, shortwave communication and hopping radio.
3. Radar, electronic navigation and electronic confrontation.
4. Aerospace equipment systems.
Technical Specifications:
Model | YFTX-RF-07-NF | |
| Channel | CH1 | CH2 |
Frequency(MHz) | 880-960 | 1920-2170 |
Insertion Loss(dB) | ≤0.4dB | ≤0.4dB |
Passband Ripple(dB) | ≤0.3dB | ≤0.3dB |
Outband Rejection(dB) | ≥80@CH2 | ≥80@CH1 |
VSWR | ≤1.25 | |
IM3 | ≤-120dBC@2×43dBm | |
Impedance(ohm) | 50 | |
Power(W) | 200 | |
Operating Temperature(deg) | -30~+65°C | |
Connector Type | N-K | |
Dimensions(mm) | 156*98*41 (Without Connectors) | |
Related Products
1710-1880/1920-2170MHz RF Diplexer
800-2200/2400-2500MHz RF Dual-band Combiner
10,000pcs in Stock for Urgent Need for Customers
Power Splitters:
Directional Couplers
RF Attenuators
RF Dummy Load
