Home > Manufacturing & Processing Machinery > Building Material Making Machinery > Brick Making Machine > Table Cement Brick Making Machine Qt4-25 Dongyue Machinery Group

Table Cement Brick Making Machine Qt4-25 Dongyue Machinery Group

Table Cement Brick Making Machine Qt4-25 Dongyue Machinery Group thumbnail-1
Table Cement Brick Making Machine Qt4-25 Dongyue Machinery Group photo-1
US$ 10,000 - 15,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Hollow Block Making Machine
Brick Raw Material:
Concrete
Contact Supplier Request Quote Chat Now
Dongyue Machinery Group Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Hollow Block Making Machine
Brick Raw Material Concrete
Processing Brick Production Line
Method Vacuum Extruder
Automatic No
Capacity 4000-5000 pieces/ day
Place of Origin Shandong, China
Brand Name DONGYUE
Model Number QT4-25
Voltage 220V/240V/380V/415V
Power 23.5KW
Dimension(L*W*H) 3700*2100*2300
Certification ISO ,CE,SGS,BV
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

Specifications

SIEMENS motor,SCHNEIDER swith
20 year experience
ISO/SGS/CE,BV
High quality,low Price
Good service and good performance

 table cement brick making machine qt4-25 dongyue machinery group

  table cement brick making machine qt4-25 dongyue machinery group

  table cement brick making machine qt4-25 dongyue machinery group



1.Techinical Parameter of table cement brick making machine qt4-25 dongyue machinery group :

Dimension of host machine

4000×1900×2320mm

Host machine power

20 KW

Vibration Force

45Kn

Vibration Frequency

4200r.pm

Mould period

25S

The size of the pallet

900×650mm

Production

5760pcs(400*200*200)/8hours

Pressure of block

9Mpa-10Pma


Host machine



1

1.5KW*2

UPPER VIBRATION MOTOR

Chinese Famous Brandname

2

3KW*2

DOWN VIBRATION MOTOR

3

1.5KW

CONCRETE FEEDER

  3PHASE AND NEUTRAL

4

2.2KW

CONCRETE FEEDER

5

2.2KW

PALLET FEEDER

6

2.2KW

MOULD UP & DOWN

7

0.75KW

Hook

8

0.75KW

BLOCK FEEDER

9

0.75KW*2

STACKER

2.Production capacity of table cement brick making machine qt4-25 dongyue machinery group :



Size(LxWxH)

Pcs/Mould

Pcs/ Hr

Pcs/ 8 Hr

400X100X200

7

630-840

5040-6720

400X150X200

5

450-600

3600-4800

400X200X200

4

360-480

2880-3840

400X250X200

3

270-360

2160-2880

240X115X 52

26

2400-2880

19200-23040

                              all kind of hollow and solid block

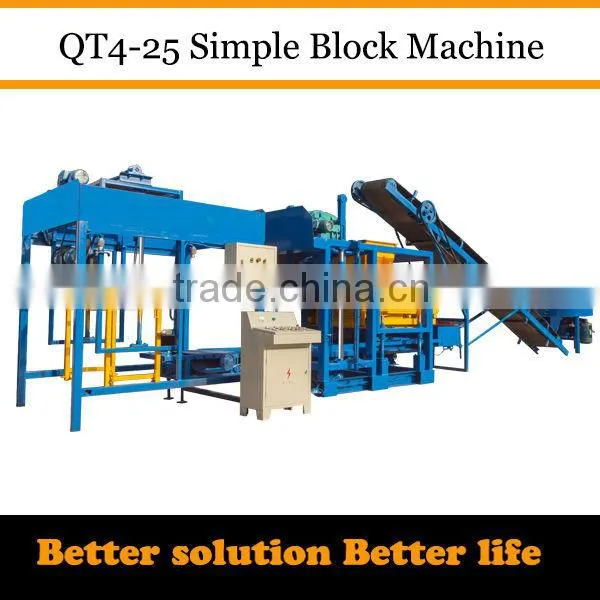

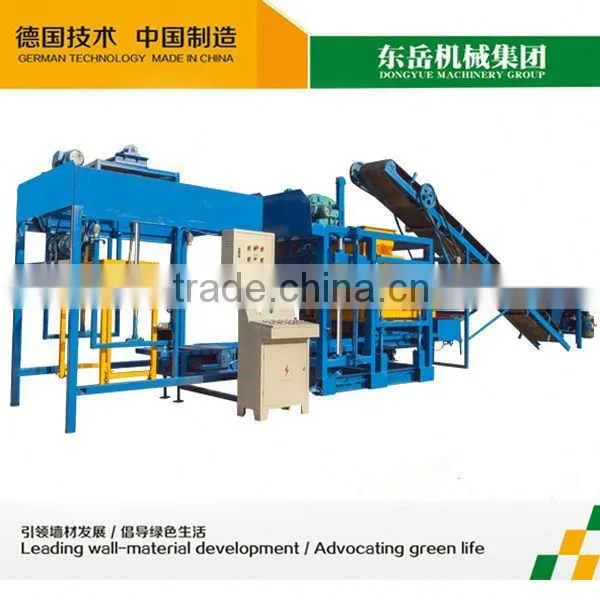

3.Machine photo of  table cement brick making machine qt4-25 dongyue machinery group :

table cement brick making machine qt4-25 dongyue machinery group



4.Raw material proportion of table cement brick making machine qt4-25 dongyue machinery group :

 1. cement 8-10%, 30%-40%sand , 50%-60% crushed stone

 2. cement 8-10% , flyash 30%, sand (stone powder)60%,2 gypsum

area of table cement brick making machine qt4-25 dongyue machinery group :

  workshop: 50-100 square meter

  Total land : 1000 square meter( according to your own situation)

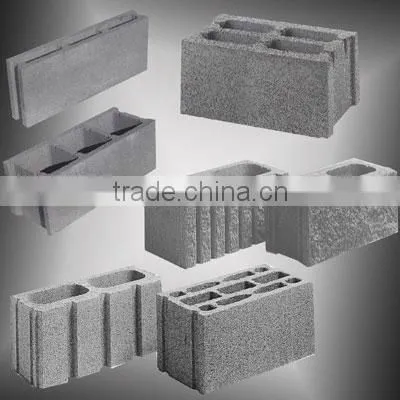

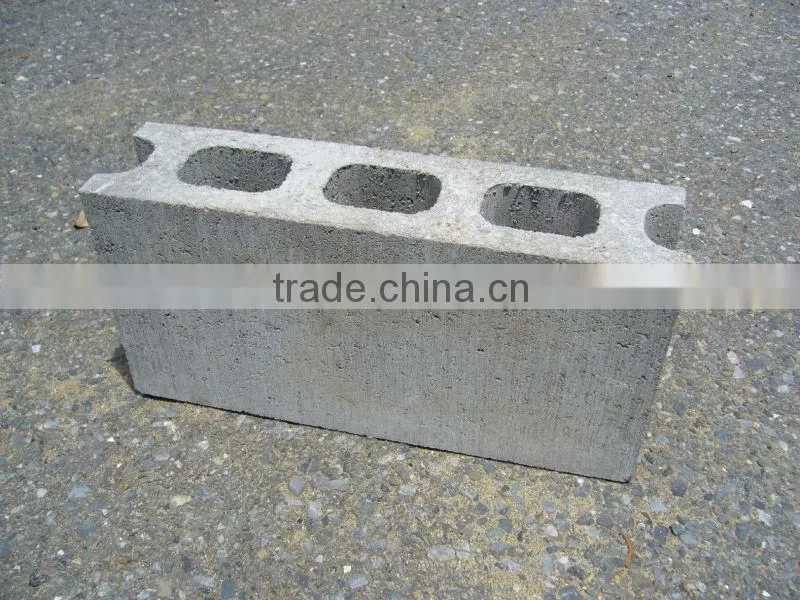

6.Block catalogue of table cement brick making machine qt4-25 dongyue machinery group :

table cement brick making machine qt4-25 dongyue machinery grouptable cement brick making machine qt4-25 dongyue machinery grouptable cement brick making machine qt4-25 dongyue machinery group

table cement brick making machine qt4-25 dongyue machinery group

table cement brick making machine qt4-25 dongyue machinery grouptable cement brick making machine qt4-25 dongyue machinery grouptable cement brick making machine qt4-25 dongyue machinery grouptable cement brick making machine qt4-25 dongyue machinery group

7.certificates of table cement brick making machine qt4-25 dongyue machinery group :

 table cement brick making machine qt4-25 dongyue machinery group

8.Company review:

  table cement brick making machine qt4-25 dongyue machinery group

  table cement brick making machine qt4-25 dongyue machinery group

....
