Home > Products > Ungroup > QT4-24 Vibrate Block Production Machine / Cement Block Production Line DONGYUE
QT4-24 Vibrate Block Production Machine / Cement Block Production Line DONGYUE
- 200 Set / Sets per Month
- Qingdao
- T/T
-
Hand press block making machine QTJ4-50
-
Pioneer high capacity AAC Block Production Line
-
China pe200x300 smallest jaw crusher
-
XIEXING XQY2000 Hydraulic pressure molding machine for sale
-
High Capacity Clay Brick Making Machines With 20stripe/M 18.8kw Power CE / ISO Certificate
-
High Speed Clay Brick Cutting Making Machine 12000kg With 36000pcs/Hr Capacity
Product Details
| Condition: | New | Type: | Other, vibrate block production machine | Brick Raw Material: | Cement |
| Processing: | Other, block production line | Method: | Hydraulic Pressure | Automatic: | Yes |
| Capacity: | 5040blocks/8hrs | Place of Origin: | Shandong, China | Brand Name: | DONGYUE |
| Model Number: | QT4-24 | Voltage: | 220V/380V/415V | Power: | 13.4KW |
| Dimension(L*W*H): | 1850*1880*2240mm | Certification: | CE,SGS and ISO9001 certificate | Warranty: | one year guarantee |
Product Description
Specifications
Vibrate block production machineMoulding period:20-25s
Vibration force:35.5KN
Chinese famous brand
ISO9001/CE/SGS

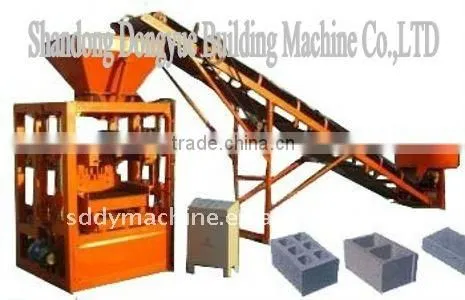

QT4-24 Vibrate block production machine / Cement block production line introduce
QT4-24 Vibrate block production machine is produced by our company according to the advanced domestic vibratory manufacturing technology. Using lower power to realize superior vibratory effects, making various materials to flow-fill and close packing. Simultaneous pressure on the up-mode vibration, the density of produced block is uniform, high strength, performance and product quality can be compared to large-scale equipment.
1.QT4-24 Vibrate block production machine main technical parameters
Dimension of host machine | 1850*1880*2240 mm | Host machine power | 13.4KW |
Voltage | 380V | Vibration force | 35.5KN |
Moulding period | 20-30S | Capacity | 22KVA |
The size of the pallet | 850×550×30mm | Mixer model | JD350 |
Weight of the machine | 3T |
|
|
2.QT4-24 Vibrate block production machine production capacity list
QT4-24 Vibrate cement block making machine theoretical Production capacity list | |||
Size(LxWxH) | Pcs/Mould | Pcs/ Hr | Pcs/ 8 Hr |
400X100X200 | 7 | 630-840 | 5040-6720 |
400X150X200 | 5 | 450-600 | 3600-4800 |
400X200X200 | 4 | 360-450 | 2880-3600 |
400X250X200 | 3 | 270-360 | 2160-2880 |

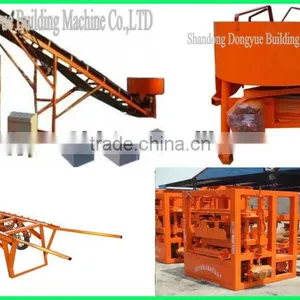

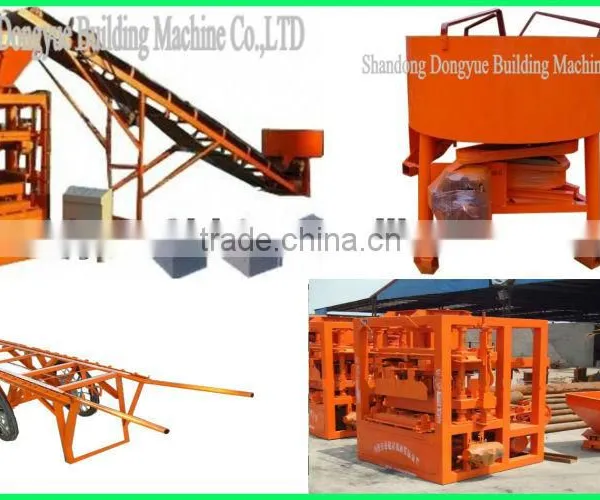

3. QT4-24 Vibrate block production machine parts
Host block machine one set
JD350 Concrete mixer one set
Belt conveyor one set
block mould one mould free
control unit one set
Two manual cars free
