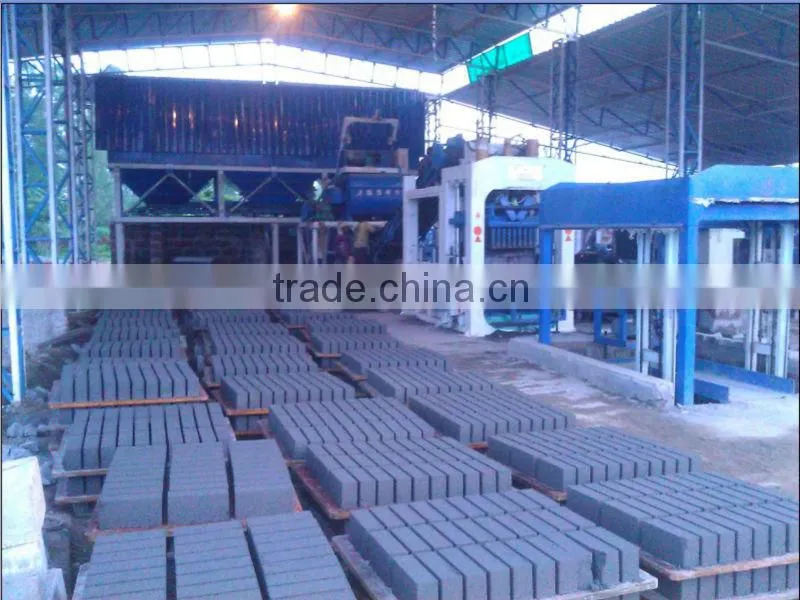

QT6-15B Automatic Cement Block Making Plant / Fly Ash Block Making Plant DONGYUE

Specifications

QT6-15B Automatic Cement Block Making Plant
China Famous Trademark
DONGYUE BRAND
Siemens motor
Min order quantity:1set

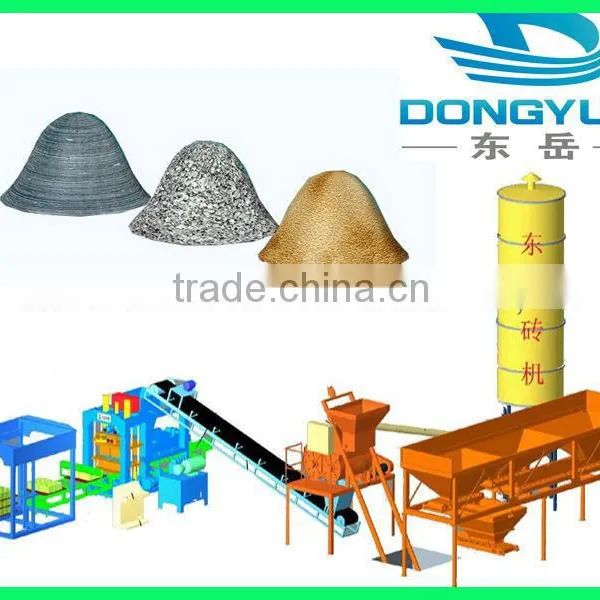

QT6-15B Automatic Cement Block Making Machine Plant  / Fly Ash Block Making Pant Introduce





1.QT6-15B Automatic cement block making machine plant advantage
    (1) This model automatic cement block making machine plant completely use PLC systems, human-computer interface and Chinese/English menu. It integrated with the advanced international mechanic, hydraulic and automatic technologies. Its easy for workers to communicate with the machine through color screen touch control system. The parameter is adjustable any time in accordance with the change of products and materials. it can analyze signal random, diagnosis fault and set parameter, this ensure the best work of the machine;
    (2) About the electricity motor ,in Mixer and host machine ,we will use Germany siemens motor ,because this two part nearly working all time in working day ,so we could use high level hard wearing motor for this ,and ther motor we will also use CE standard motor ,
    (3)About the switches ,we will select the France Schneider brand , it is could assure the working process smoothly .
    (4) The Control System Using computer control and man-machine interface. Electrical equipments apply the well-known brands from Japan and Germany, like Japan Mitsubishi .

    (5).The brick mould of brick making machine, in order to prolong the life of brick mould, we use the newest high temperature carburizing heat treatment technology, the quality is good.

    (6).Hydraulic system :Hydraulic components made in Taiwan, we use high-dynamic proportional and directional valves, which automatically adjust the oil flux and pressure as per specific working requirements,

 this design greatly prevent the cylinder from damage.







2.QT6-15B Automatic cement block making machine plant main technical parameters

Dimension of host machine	2850×2200×2850mm
Moulding area	800×600mm
Moulding period	15-20S
The size of the pallet	940×830×20/25mm
Weight of the host machine	6T
Voltage	380V
Host machine power	32KW
Vibration force	45KN
Capacity	91.55KVA
Mixer model	JS500
General water Consumption	8T/every day



3.Mixer: JS500 Mixer main technical parameters, it's suitable for QT6-15B Model automatic cement block making machine plant

Main Technical Specifications	parameters
Feeding capacity	800L
Discharging volumn	500L
Productivity	≥25m3/h
Roating speed of  stirring shaft	2*8r/min
Max.diameter of aggregates	80/60mm
Overall size	3030×2300×2800mm
Total mass	4000kg
Total capacity	24.75KW
Electric motor	Siemens motors



 4.QT6-15B Automatic cement block making machine palnt Production Capacity and block samples, pls take it as reference

Size(LxWxH):mm	Pcs/Mould	Pcs/ Hr	Pcs/ 8 Hr
230X110X70	30	5400-6300	43200-50400
400X100X200	12	2160-2880	17280-23040
400X150X200	8	1440-1920	11520-15360
400X200X200	6	1080-1440	8640-11520
400X250X200	4	720-960	5760-7680
Paver:200X100X60	24	3740	29920
Paver:200X163X60	9	1450	11600
