Specifications

paver machine manufacturers ,best offer with most comeptitive price ,quality guarantee machine, any size any color block

price concrete block machine you scheme cheap to gain money

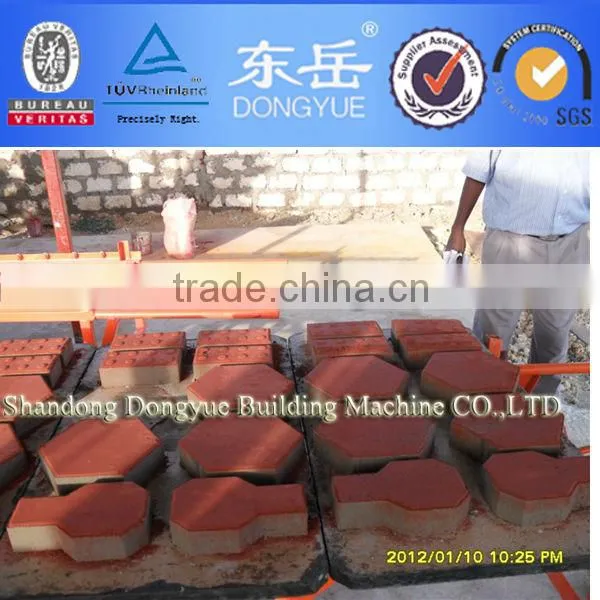

It can produce all kinds of hollow blocks and solid bricks and color paving bricks,only by changing different moulds.

Dongyue Machinery Group Co., Ltd. is a company specialized in producing various kinds of Block Making Machine and Aerated (light weight) Concrete Block Machine. The renowned commercial, historic and cultural city Dongyue embraces convenient traffic and terrific surroundings.



Our unique advantage:

1.We are the only company in this area that have oversea office,we have office in India(Two office,one is in Bhubaneswar,the other is in Ahmedabad), Indonesia, Vietnam.And we have spare parts warehouse in India. It will help our client to get better after-sale service.



2.Rich experience : We have exported our block machine to more than 200 countries,up to now,we have 39 set in India.

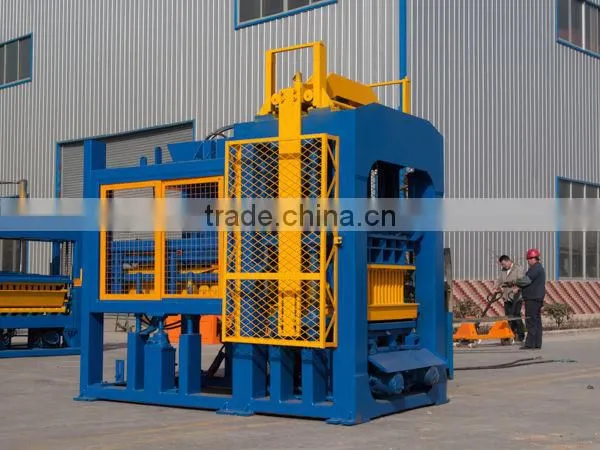

QT4-15C Main technical parameters



Dimension of host machine	3800×1800×2550mm	Host machine power	19.2 KW
Moulding area	400×800mm	Vibration force	40KN
Moulding period	15-25S	Mixer model	JS500
The size of the pallet	1010×550×20/25mm	General water Consumption	4T/every day
Weight of the host machine	4.6T	Voltage	380V



Production capacity



Size(LxWxH)	Pcs/Mould	Pcs/ Hr	Pcs/ 8 Hr
400X100X200	8	1200-1920	9600-15360
400X150X200	6	900-1440	7200-11520
400X200X200	4	600-960	4800-7680
400X250X200	3	450-720	3600-5760
Paver:200X100X60	16	1920	15360
Paver:200X163X60	8	1200	9600



 QT4-15C Block machine Summary



 1.Certificates:CE/SGS/ISO9001:2000

 2.Hydraulic and Semi- automatic

 3.Strong hight-strength steel structure

 4.Block mould adopt heat treatment technology

 5.Japanese MITSUBISHI PLC/German SIEMENS or International ABB Brand motors

 6.Use worm wheel and screw mandrel to adjust the material feeder platform.



QT4-15C Block Machine Advantage:

1.Control System:
Electric control system consists of imported color touch screen and programmed PLC with data input and output device, including safety logical control and trouble shooting system. Vibration analyzing system:detecting the vibration frequency, vibration amplitude,vibration acceleration and noise of the whole machine,so as to adjust the vibration to optimum efficiency

2. Hydraulic System:
The system consists of imported components and seals with high dynamic performance proportional valves. The action of key cylinders can be operated through the regulator of flow and pressure according to the working requirement.The main frame is wide for the convenience of mold filling, so more blocks can be made. In order to get even pressure,three oil reservoirs are used, which raise the pressure to as high as 100t. Moreover,the smallest reservoir in the middle increases the operating speed of the left and right ones respectively, thus improving the productivity.

3.Frequency conversion motor drive the vibrating case,easy to obtain ideal vibration force,vibration frequency and amplitude,can produce high quality block. Unique double-vibration box drives all in one vibration table to make the deviation of amplitude lower,more even so as to guarantee the consistency firm and durable.

4.Adopts more advanced material-feeding technology,material from the hopper fall into the mould case rapidly and evenly,make the weight error less than ±5%,the intensity error less than≤±15%.

5.Low energy consuming.Compared with common Block Making Machine,these equipment investment has increased by about 18%,but output has been improved by 35%,unit consumption has been reduced by about 5%.

6. incomparable advantages in producing process:

High thickness and rectangle steel frame, four guidance column,solidity structure and prolonged life.

7. Unsurpassable advantages in using process
Unique Waterproof Structure
Super high intensity
Construction convenience
wind resistance
Excellent heat insulation
Freeze-thaw test
Permeability resistance

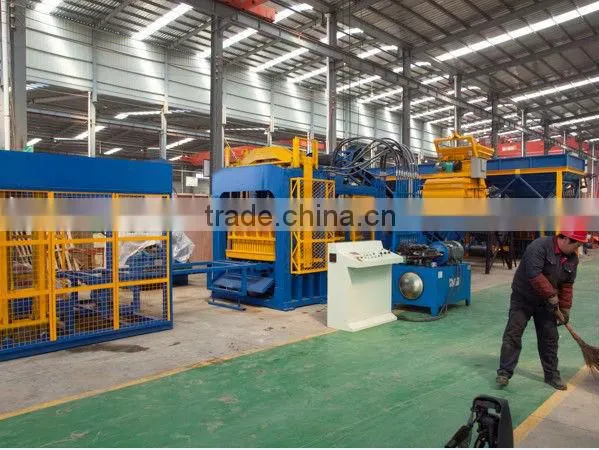

Our fabricating machinery:
