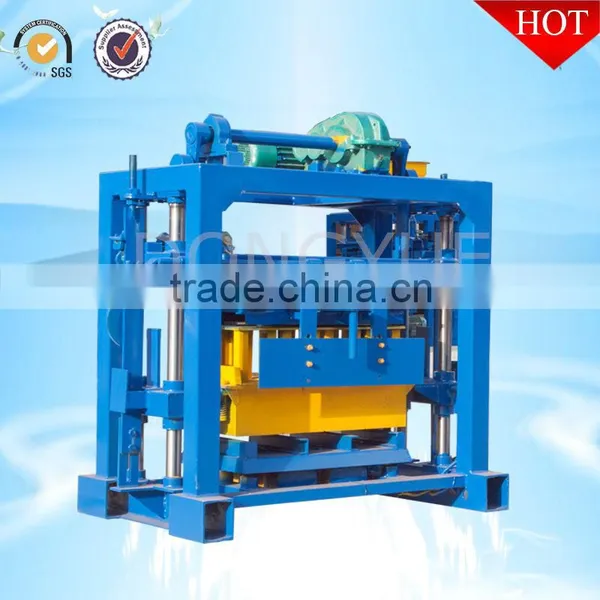

QT40-2 eco bricks making machine equipment for small business
- 100 Set / Sets per Month
- Qingdao
- T/T
- China pe200x300 smallest jaw crusher
- Popular compound pendulum jaw crusher price
- 2016 china products stone coated steel roofing tile ,shingle steel roof tile
- 2016 china products lightweight roof tile,blue glazed roof tile
- colored metal roofing prices,sand coated metal roofing tiles
- roofing tiles coated with stones,roofing tiles for houses
Product Details
Condition: | New | Type: | Hollow Block Making Machine | Brick Raw Material: | Concrete |
Processing: | Brick Molding Machine | Method: | Other, Vibration forming | Automatic: | No |
Capacity: | 4000/8hours | Place of Origin: | Shandong, China | Brand Name: | Dongyue |
Model Number: | QT40-2 | Voltage: | adopt customer's requirement | Power: | 8.2KW |
Certification: | ISO9001 CE SGS | Warranty: | one year | After-sales Service Provided: | Overseas service center available |
Product Description
Specifications
cement bricks manufacturing machineSiemens motor,good aft-service
Heat treated mold,long use life
Excellent productivity
Advantage of block making machine
1.it adopt to the domestic technology of vibration of vibration table,it get a strong vibration with a little power.as
2.It combines lower die vertical vibration and top die vibration,as a result,it can produce block more quickly and the compactness and intensity of block is great
3.reasonable design with easy operation release human and get a high efficiency

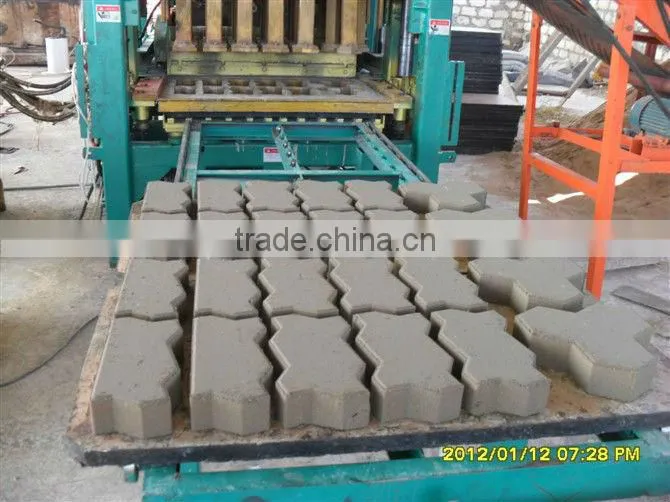

4.It produces various blocks with different molds
5.the performance and block quality can compare with large-sized machine
1.Parameter of Insulated concrete hollow block machine made in China/ breeze block algeria/cement brick making machine QT4-24 :
Dimension of host machine | 2060×1730×1850mm | Host machine power | 13.45KW |
Vibration force | 35.5KN | ||
Mould period | 30S | Capacity | 22.05KW |

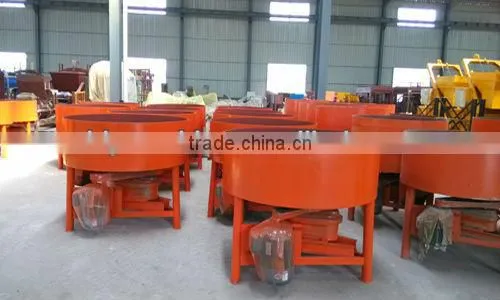

The size of the pallet | 850×550×30mm | Mixer model | JD350 |
Weight of the machine | 3T | Voltage | Adapt to your local voltage |
2. Capacity of Insulated concrete hollow block machine made in China/ breeze block algeria/cement brick making machine QT4-24 :
Size(LxWxH) | Pcs/Mould | Pcs/ Hr | Pcs/ 8 Hr |
400X100X200 | 7 | 630-840 | 5040-6720 |
400X150X200 | 5 | 450-600 | 3600-4800 |
400X200X200 | 4 | 360-480 | 2880-3840 |
400X250X200 | 3 | 270-360 | 2160-2880 |
240X115X 52 | 24 | 2400-2880 | 19200-23040 |

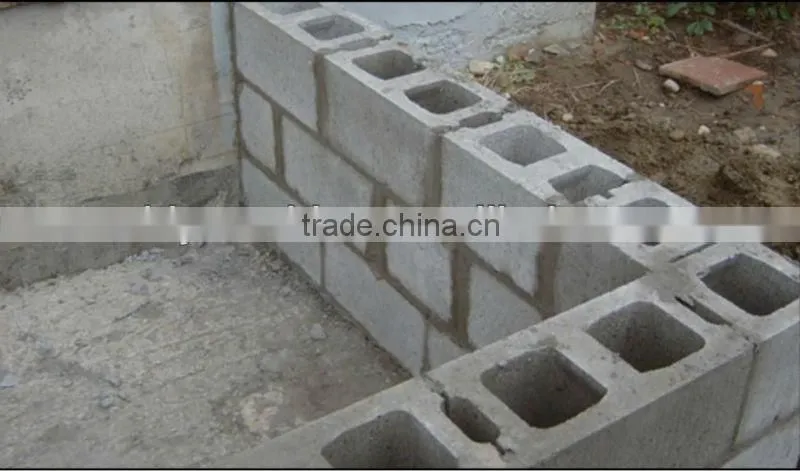

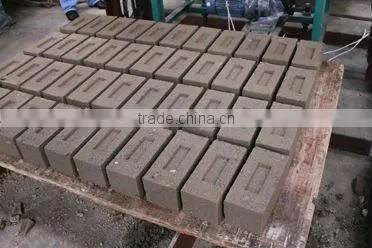

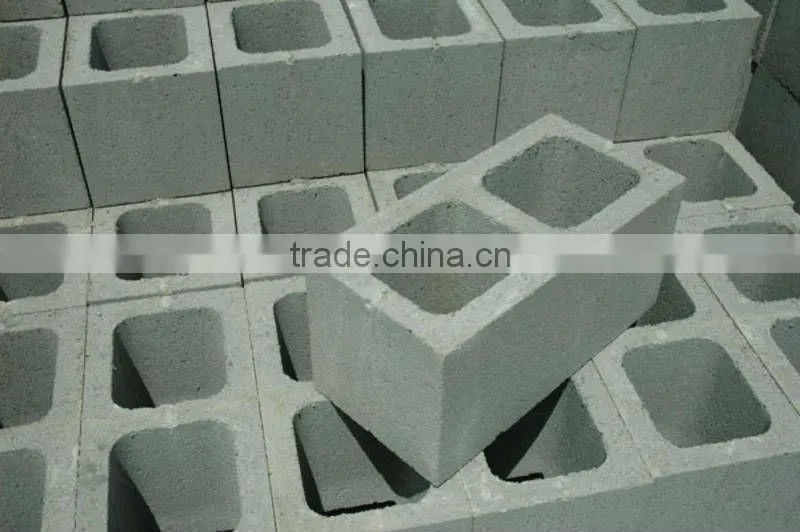

All kind of hollow and solid block |
3.Required area of Insulated concrete hollow block machine made in China/ breeze block algeria/cement brick making machine QT4-24 :
work area:50-60m2 3-5 workers
Total area : 100M2 (theoretically),you can arrange it with your own situation.
4.Price Terms:
1.All prices are based on FOB Qingdao, CHINA. MOQ: 1 set
2.Payment terms:30% as down deposit by T/T ,70% as the balance paid by T/T before loading(L/C is also acceptable.)
3.Validity:four weeks
4.Delivery: 15-20 days upon receipt of deposit.
5.warranty:1 year(12 months)if damage,we offer free parts and repair it.
6.shipment: as the measurement is small (10m³with mixer),so if you buy 1 set ,you can choose LCL(less than container load),it is much cheaper but it take a lot of time,if you buy 2-3 sets,you can book 20GP.of course ,we can arrange for you( CFR or CIF).
7.Ratio of raw material of Insulated concrete hollow block machine made in China/ breeze block algeria/cement brick making machine QT4-24 :
1. 8%-10% cement ,30%-40% sand, 50%-60% stone(less than 15mm)/
2. 8% cement,60% sand,Fly ash 30%,2% gypsum.

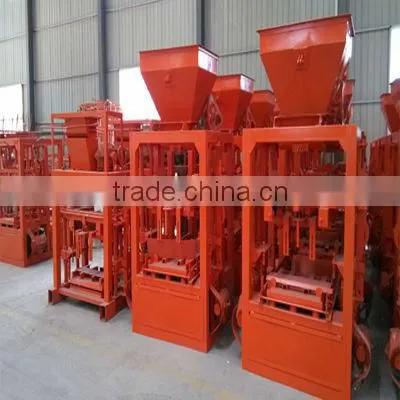

8.Dongyue Insulated concrete hollow block machine made in China/ breeze block algeria/cement brick making machine QT4-24 :

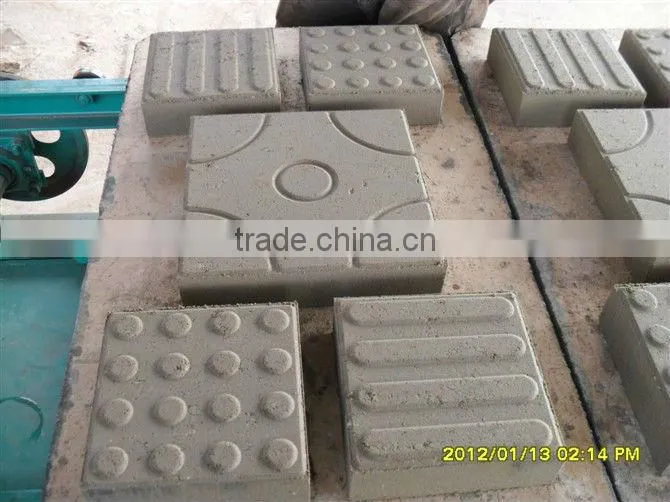

9.Block size catalogue of Insulated concrete hollow block machine made in China/ breeze block algeria/cement brick making machine QT4-24 :
The customer visit
