Home > Products > Moving block machine > QT40-3A cement block laying machine from DONGYUE
QT40-3A cement block laying machine from DONGYUE
- 100 Set / Sets per Month
- Qingdao
- T/T Credit Card
- China pe200x300 smallest jaw crusher
- Popular compound pendulum jaw crusher price
- 2016 china products stone coated steel roofing tile ,shingle steel roof tile
- 2016 china products lightweight roof tile,blue glazed roof tile
- colored metal roofing prices,sand coated metal roofing tiles
- roofing tiles coated with stones,roofing tiles for houses
Product Details
Condition: | New | Type: | Hollow Block Making Machine | Brick Raw Material: | Concrete |
Processing: | Brick Molding Machine | Method: | Other, vibrated impaction | Automatic: | Other, Semi automatic |
Capacity: | 3500pieces/shift hollow block machine | Place of Origin: | Shandong, China | Brand Name: | DONYUE |
Model Number: | QT40-3A | Voltage: | 220V/240V/380V/415V | Power: | 5.2KW |
Dimension(L*W*H): | 1800*1400*1100 mm | Certification: | CE,ISO9001,SGS,Famous Trademark of China | Warranty: | 1 year, 12 Months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

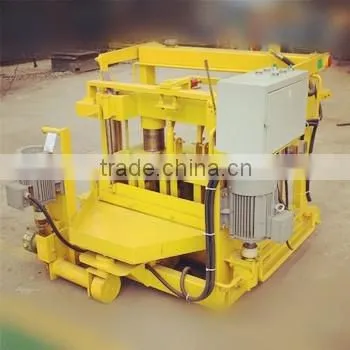

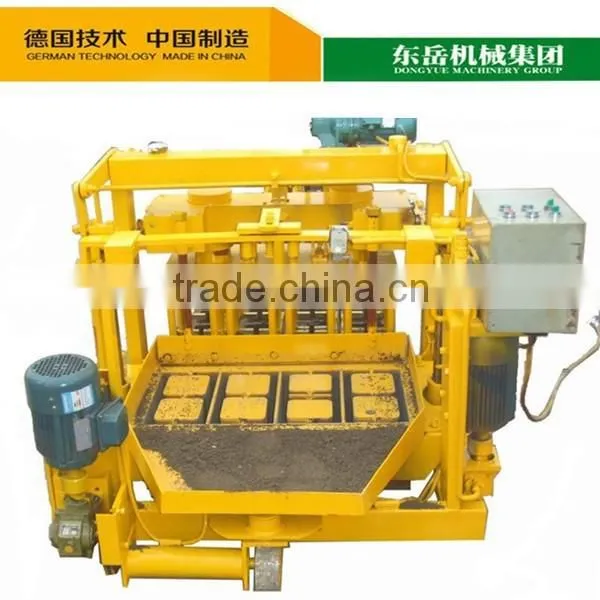

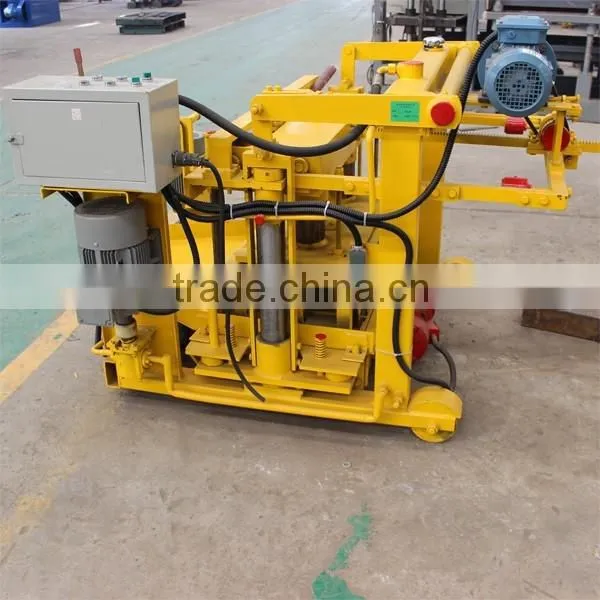

QT40-3A cement block laying machine from DONGYUE
Donyue Machinery Group Co.,Ltd(Subsidiary company-LinYi Donyue IMP&EXP Co.,Ltd). is a company specialized in producting Automatic brick machine , aerated concrete block production line, the aerated concrete wall panel production line, autoclaved lime sand brick production line, autoclave etc. A and second-class pressure vessel, aerated concrete blocks, sand-lime brick, panel products, plant asphalt nine series,more than 60 varieties.
Our company designs this series egg laying block making machine according to the customers’ requirement, use the optimize design,reasonable structure, strong feeding materials, strength the pressure. This is one efficiency, economy, suits for minor enterprises.
Now we set up office in India, Indonesia,Vietnam, can supply the best after-sale service for customers
We are a memer of Alibaba Trade Assurance,which can provide a safegard for buyers' payment.
Main Parameter
Dimension of host machine | 1800×1400×1100mm |
Vibration force | 35.5KN |
Moulding period | 25S |
The size of the pallet | No need pallet |
Capacity | 5.2KW |
Weight of the machine | 0.8 T |
Voltage | 380V |
QT40-3A moving block machine production capacity
Size(mm) | Pcs/mold | Molding time | Pcs/h |
400*150*200 | 5 | 25s | 600-720 |
400*200*200 | 4 | 25s | 480-576 |
400*100*200 | 7 | 25s | 840-1008 |
400*250*200 | 3 | 25s | 360-432 |
Solid(240*115*53) | 20 | 25s | 2400-2880 |
1.QT40-3A movable hollow block making machine can make various hollow block by changing molds.
2.Two person is enough to operate the machine.1 person operates machine,the other mixs raw material.
Video Links
QT40-3A working video link, /watch?v=3pdnWDe9n5U

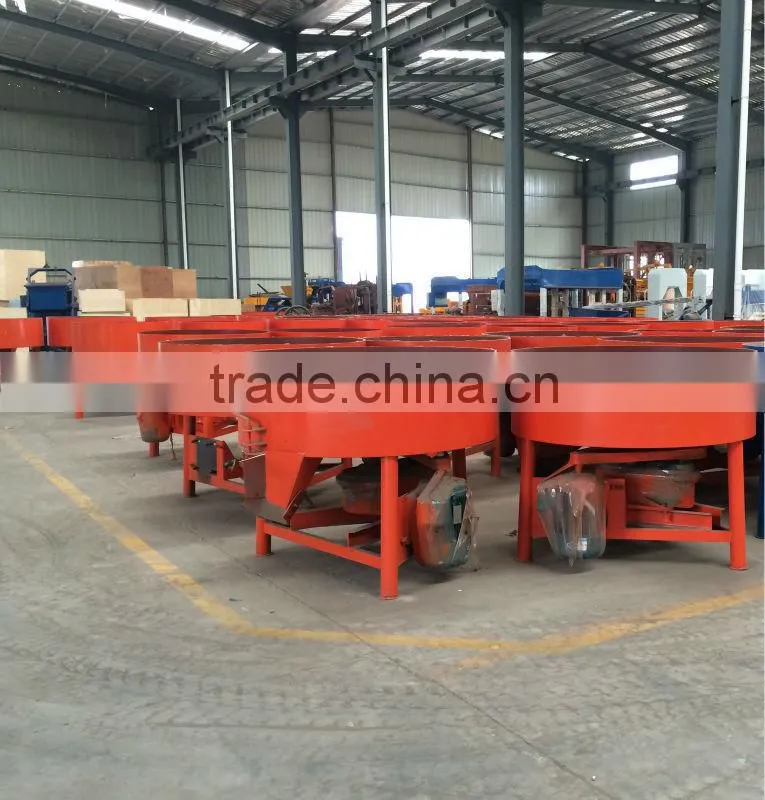

JQ350 vertical mixer Main parameter
Power | 5.5kw |
Spindle speed | 32r/min |
Per mixing quantity | 0.55m3(750kg) |
Dimension | 35×1250×1200mm |
Weight | 530kg |
Pre-sale:
Analyze the customer’s need and factory layout design, confirm scale of operation;
Select the fitting choice;
Provide perfect solution to set up a factory.
Sales:
machine to make concrete blocks;
Help to set up the factory;
Provide service of installation and commissioning;
Provide training for operator and maintenance person.
After-sale:
Help customers to establish production craft formula;
Consultation available all the time;
Supply moulds and parts all the time.
Any question about QT40-3A Small Block Machine ,contact with us please,sincere service for you .
