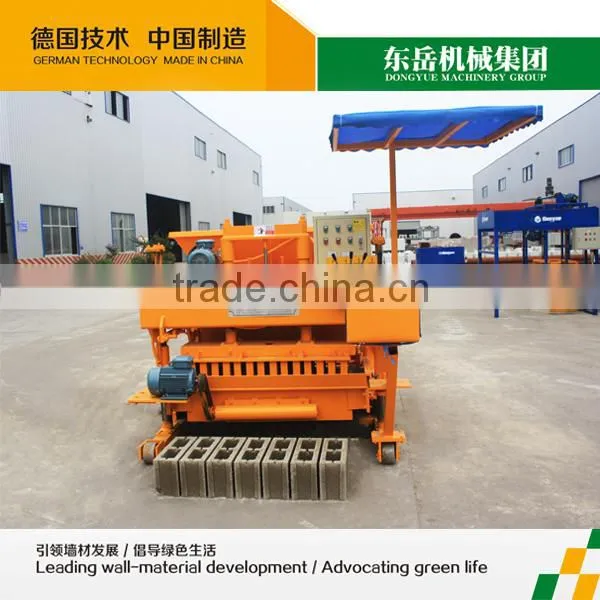

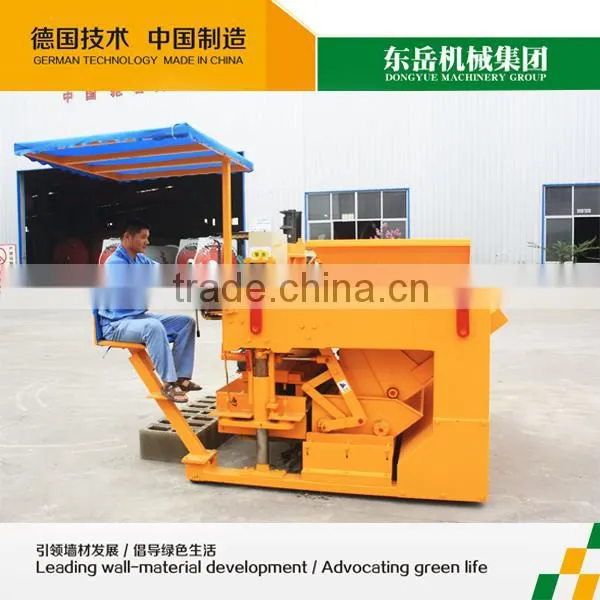

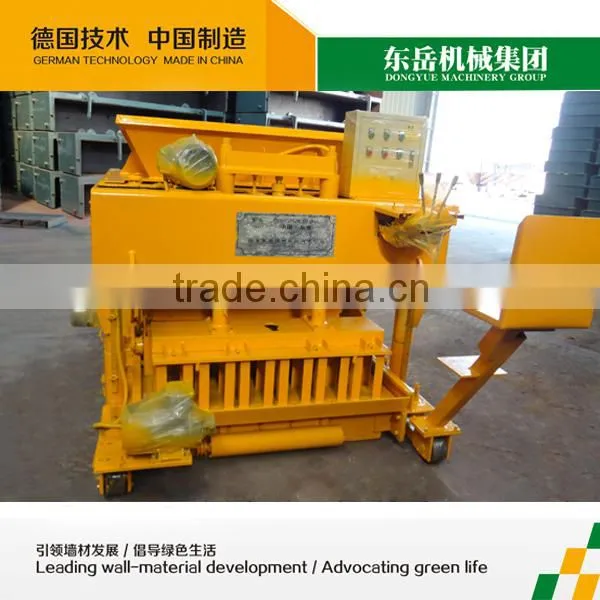

Hollow Block Machine Price QMY6-25 Hollow Brick Machine for Canton Fair
US$ 8,000 - 11,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Hollow Block Making Machine, concrete mobile concrete block making machine
Brick Raw Material:
Concrete
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao or any port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Canton Fair Small Block Making Machine QT40-3A Concrete Block Machine for BlockUS$ 3,000 - 5,000MOQ: 1 Set -
Small Production Machinery QT40-3A Small Brick Making MachineUS$ 3,000 - 5,000MOQ: 1 Set
-
Mini Movable Block Making Machine for Building ConstructionUS$ 9,000 - 20,000MOQ: 1 Set
-
Building and Construction Equipment Mobile Block Machinery QT40-3B Sells in AfricaUS$ 2,000 - 4,000MOQ: 1 Set
-
Direct Factory Price Egg Layer Burnt-free Brick Pressing Machine QT40-3B in KenyaUS$ 2,000 - 4,000MOQ: 1 Set
Condition
New
Type
Other, Hollow Block Making Machine, concrete mobile concrete block making machine
Brick Raw Material
Concrete
Processing
Brick Production Line
Method
Hydraulic Pressure
Automatic
No
Capacity
1440 blocks per hour
Place of Origin
Shandong, China
Brand Name
Dongyue
Model Number
QTM6-25
Voltage
380V, 380v
Power
9.6 KW, 9.6KW
Dimension(L*W*H)
3800*1850*2000mm
Certification
CE,ISO9001,SGS,Famous Trademark of China, CE,ISO9001,SGS,Famous Trademark of China
Warranty
1 year, 1 year
After-sales Service Provided
Overseas service center available
hollow block machine price QMY6-25 hollow brick machine for canton fair
QT40-3A moving machine working video link, /watch?v=3pdnWDe9n5U

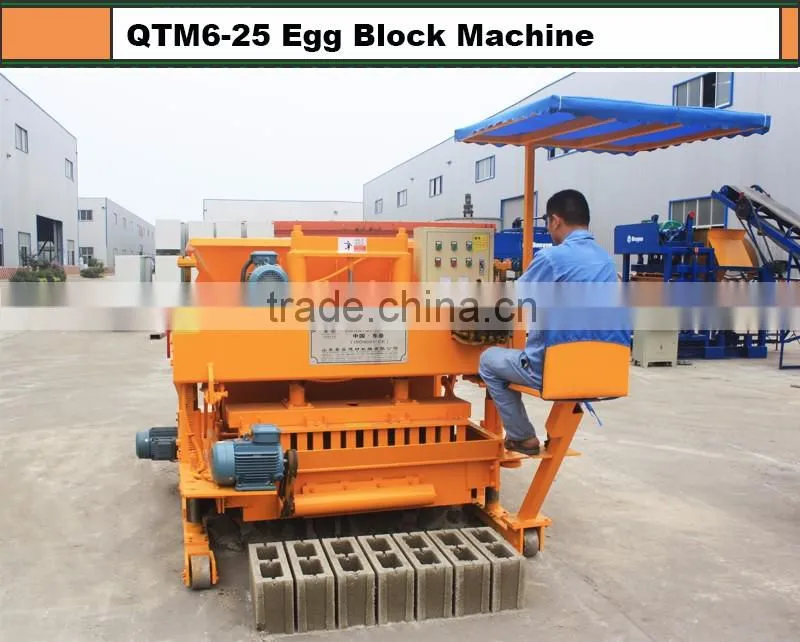

QTM6-25 moving machine working video link, /watch?v=3adIH_wbkag
Dongyue Machinery Group Introduction Video on Yutube : /watch?v=ajPDe3rivQU

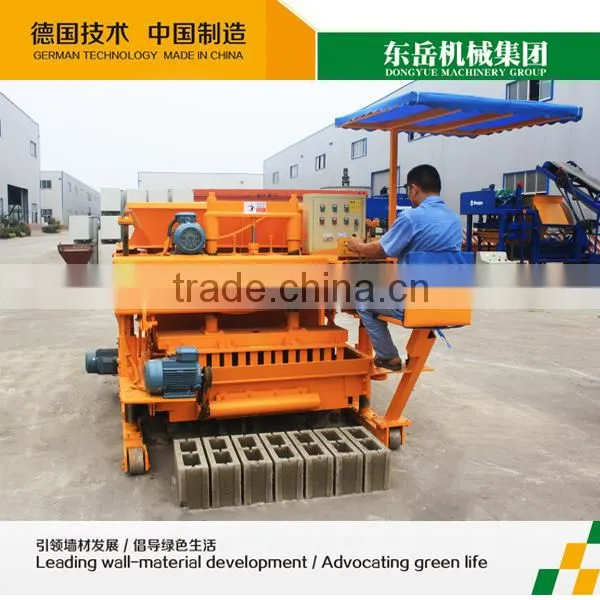

Introduction :is one mobile brick machine. based on foreign advanced technology and process, our company research and development mobile hydraulic brick machine, the brick machine has great advantage as follow:
Technology advanced:the whole design process consider principle of integrative reconciliation and the internal structure of a rational order, so the machine have great technical advantage,it adopt several new technique, such as box excitation, hydraulic discharge, omnidirectional automatically movement
High quality: the whole machine is adopted high quality steel, and precision welding, the hydraulic system use high-quality components, so it have a longer life and less fault during work
Low investment:high efficiency: this machine have several function features, such as low price,reliable performance, easy to operated, stable, more efficient, high output, low power consumption.the brick it produced have high density, high strength, accurate dimensional, good appearance,so it can reduce the customer's investment and production costs and give fast and large benefit
No need pallet,Hot product in Africa,Middle East
Parameter:
| Molding | 6PCS/mold |
| Hydraulic pressure | 6-8MPa |
| Frequency | 3500/min |
| Productivity | 8000~10000pcs/day |
| Hydraulic method | Mold vibration |
| Demold method | Hydraulic |
| Turning method | Hydraulic |
| Total power | 12kw |
| Total mass | 2600kg |
| Molding cycle | 20s |
| Turning method | crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes. |
| Total power | concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. |
| Total mass | widely used in buildings, road pavers, squares, gardens, landscaping, city constructions, etc. |
Capacity:
| Block type | Block size | Pcs/mould | Pcs/hour | Pcs/day |
| Hollow blocks | 400x200x200mm | 6 | 1000 | 7000-9000 |
| (16x8x8 inch) | ||||
| Hollow blocks | 400x150x200mm | 8 | 1300 | 10000-13000 |
| (16x6x8 inch) | ||||
| Hollow blocks | 400x250x200mm | 4 | 700 | 5600-7000 |
| (16x10x8 inch) | ||||
| Hollow blocks | 400x120x200mm | 9 | 1500 | 12000-15000 |
| (16x5x8 inch) | ||||
| Solid bricks | 250x175x75mm | 14 | 2016 | 16128-20160 |
| (10x7x3 inch) |
Parameter of material feeding cart:
| Material feeding cart | |
| Motor type | ZS1100 |
| Moror Power | 11KW |
| Rated load | 1000kg |
| Pointed capacity | 0.78m3 |
| length of driving wheel | 1280mm |
| Ground clearance | 190mm |
| Empty self weight | 1050kg |
| Outside dimension | 2620*1500*1960mm |
| Geometrical capacity | 0.5m3 |
| Wheelbase | 1500mm |
| Minimum turning radius | 4m |

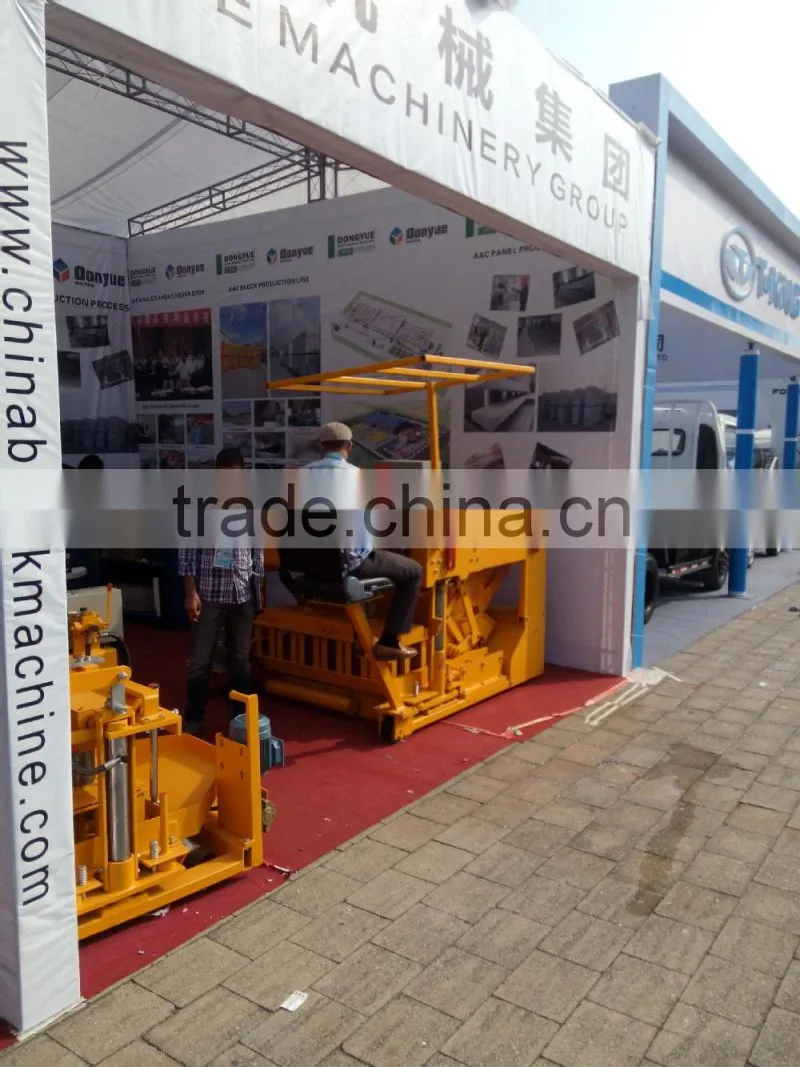

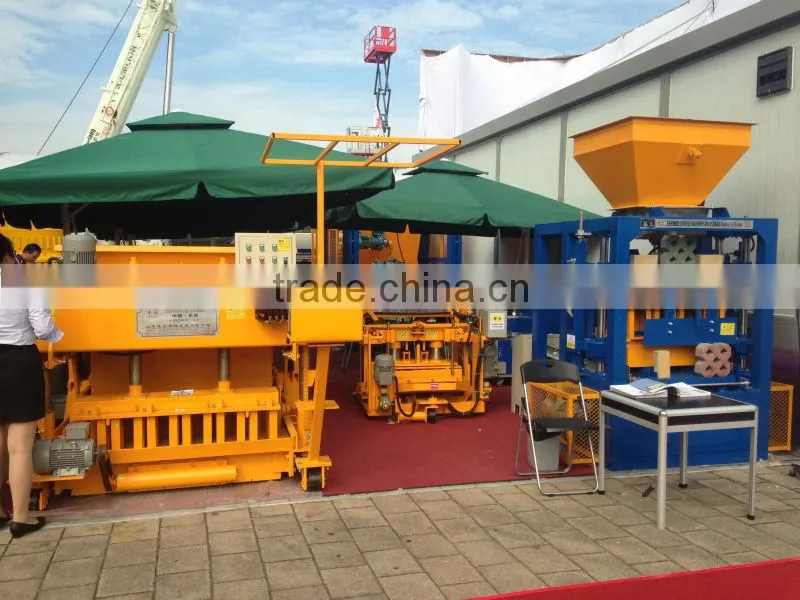

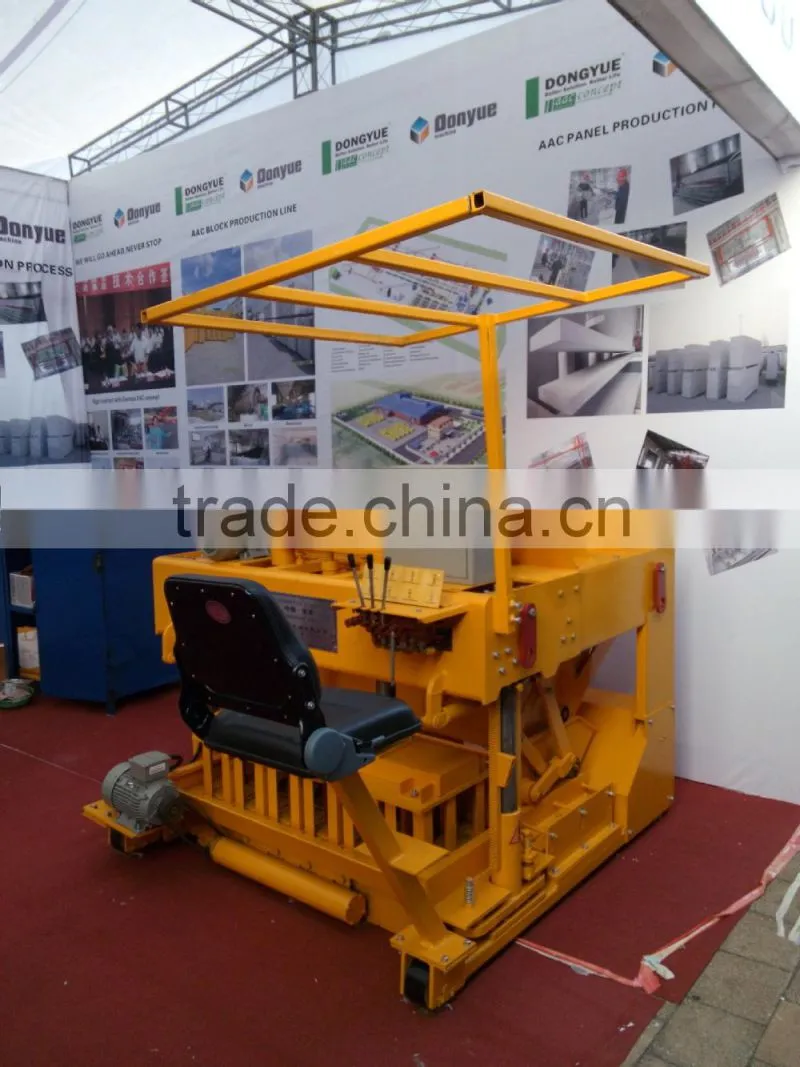

In canton fair

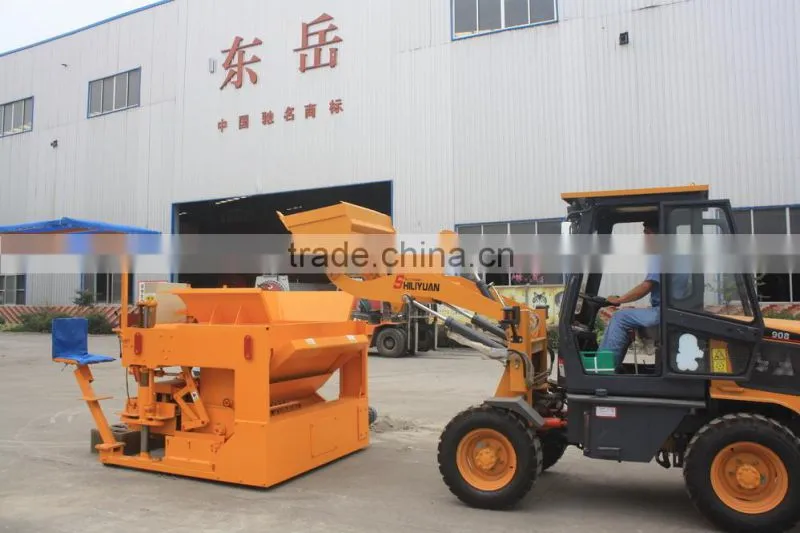

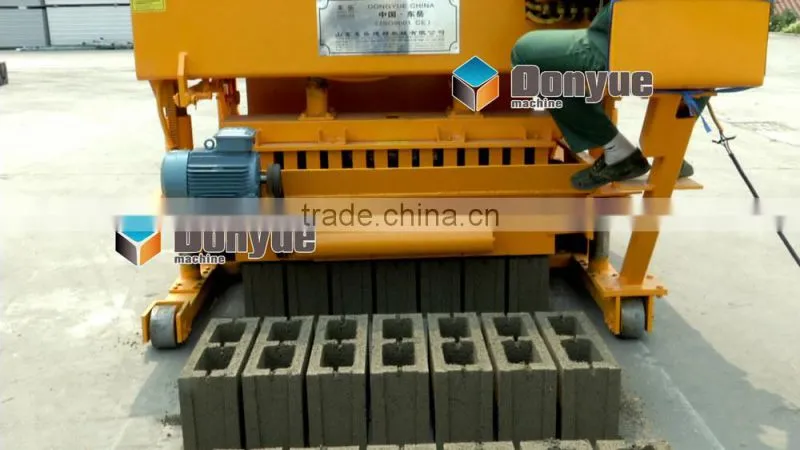

In producing:

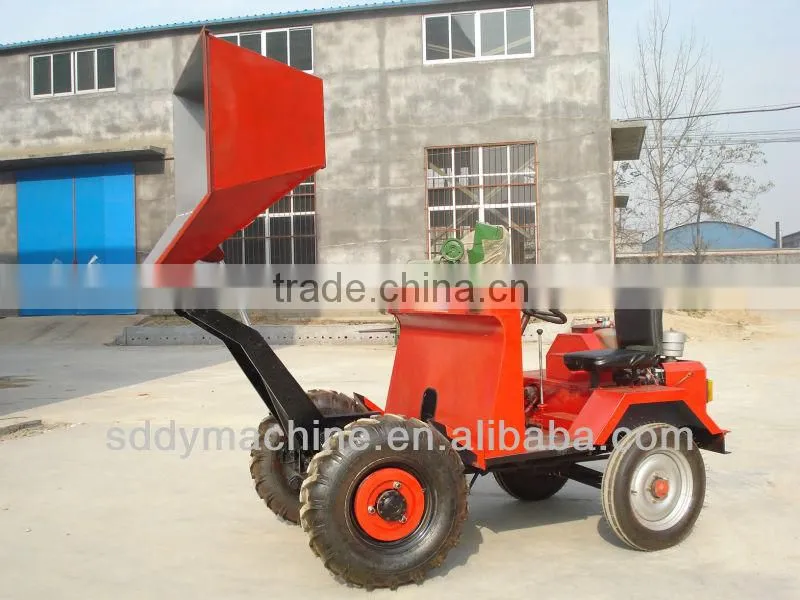

Auxiliary equipment - 1. Material feeding cart

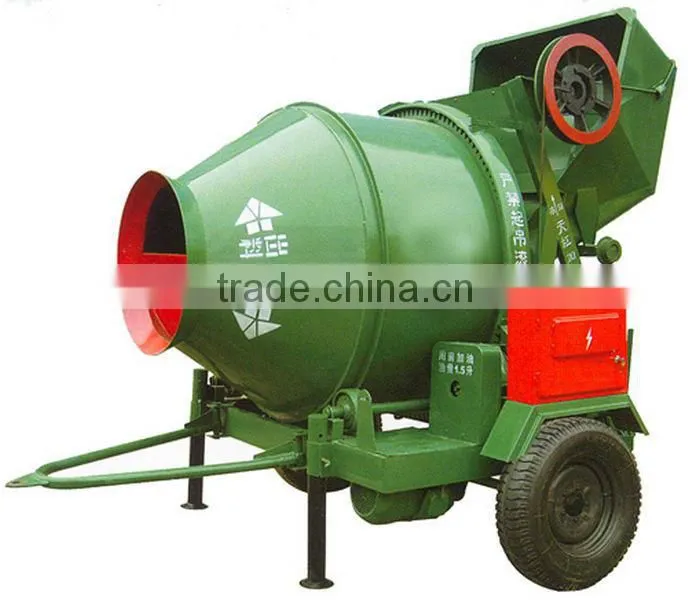

2. Mixer

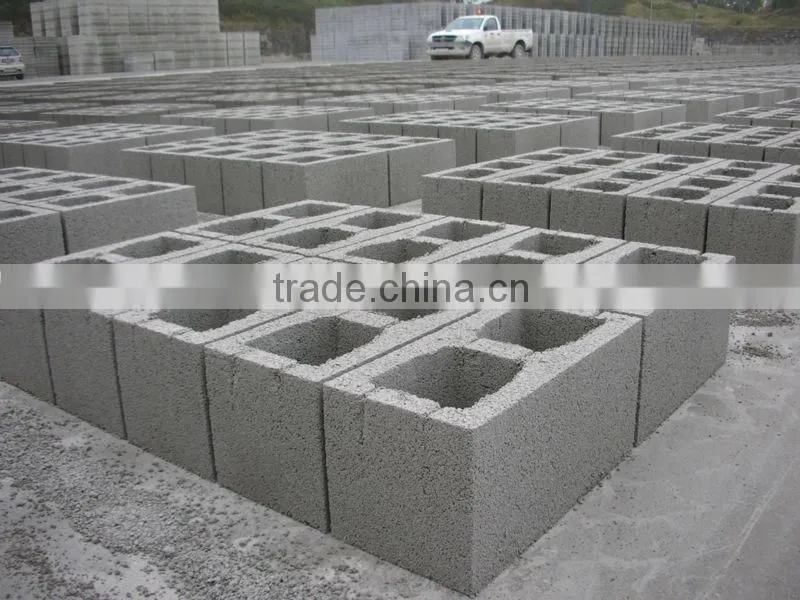

Block samples:
Contatcts:
Dongyue Enterprise Profile:
Dongyue Machinery Group Co., Ltd. is located in the jumping*off point of Linyi City.
The new series of automatic brick forming machine features high efficiency, advanced
Technology , stable capability and wide applicability. Last year we are the top selling among
thousands of China manufactures. and we are the only company which has been admitted
as China well*know brandmark by China Government.
Apart from the above, we already have office in India, Vietnam,Indonesia.
Our brick making machine enjoys many advantages including: more reasonable structure,
more compact appearance, smoother operating, higher efficiency and easiness to operate
and maintain. We would like to exchange the optimum profit for you with the lowest cost
and the best after-sale service.
