supply installation service egg laying block machine
- 30 Set / Sets per Month
- qingdao
- T/T
- XIEXING XQY2000 Hydraulic pressure molding machine for sale
- XQY3-10 semi automatic cement block making machine
- XIEXING XQY3000A Hydranlic pressure block forming machine for sale
- Top quality and hot sale competitive price XQY3-10 manual block making machine
- Hot-saling and high efficiency XQY3-10 manual block making machine in india
- Hydraulic pressure curbstone interlocking block machine
Product Details
Condition: | New | Type: | Hollow Block Making Machine | Brick Raw Material: | Cement |
Processing: | Brick Cutting Machine | Method: | Hydraulic Pressure | Automatic: | No |
Capacity: | 1440PCS/hour | Place of Origin: | Shandong, China | Brand Name: | Dongyue |
Model Number: | 6-25 | Voltage: | Adopt customer's requriment | Power: | 9.6KW |
Dimension(L*W*H): | 3800*1850*2000mm | Certification: | ISO9001 CE SGS | Warranty: | ONE YEAR |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
The egg laying brick making machine for small industrial machinery based on foreign advanced technology and process, our company research and development mobile hydraulic brick machine,
The egg laying brick making machine has great advantage as follow:
Technology advanced: the whole design process consider principle of integrative reconciliation and the internal structure of a rational order, so The egg laying brick making machine have great technical advantage,it adopt several new technique, such as box excitation, hydraulic discharge, omnidirectional automatically movement
High quality: the whole machine is adopted high quality steel, and precision welding, the hydraulic system use high-quality components, so it have a longer life and less fault during work
Low investment: high efficiency: this machine have several function features, such as low price,reliable performance, easy to operated, stable, more efficient, high output, low power consumption.the brick it produced have high density, high strength, accurate dimensional, good appearance,so it can reduce the customer's investment and production costs and give fast and large benefit
No need pallet,Hot product in Africa,Middle East

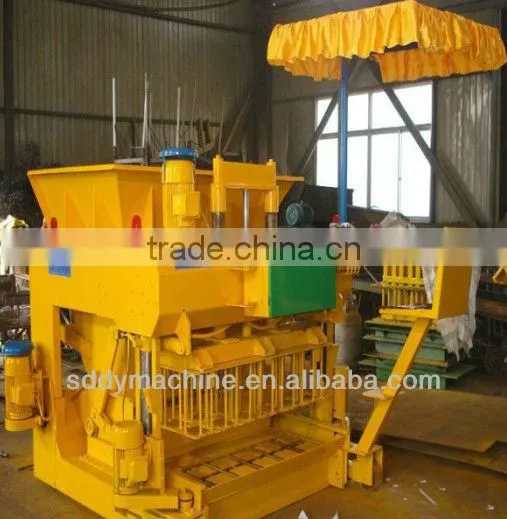

Parameter of QTM6-25 egg laying brick making machine
Totall mass | 2600KG |
Rated pressure | 6-8MPa |
Main vibration | Mould vibration |
Vibration frequency | 3500r /min |
Turning method | Hydraulic method |
Molding Cycle | 20-25(s) |
Overall power | 12KW |
Raw Materials | crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes. |
Applied Products | concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. |
Applied Fields | widely used in buildings, road pavers, squares, gardens, landscaping, city constructions, etc. |
Capacity of QTM6-25 egg laying brick making machine
Block type | Block size | Pcs/mould | Pcs/hour | Pcs/day |
Hollow blocks | 400x200x200mm (16x8x8 inch) | 6 | 1000 | 7000-9000 |
Hollow blocks | 400x150x200mm (16x6x8 inch) | 8 | 1300 | 10000-13000 |
Hollow blocks | 400x250x200mm (16x10x8 inch) | 4 | 700 | 5600-7000 |
Hollow blocks | 400x120x200mm (16x5x8 inch) | 9 | 1500 | 12000-15000 |
Solid bricks | 250x175x75mm (10x7x3 inch) | 14 | 2016 | 16128-20160 |
Main parameters about egg laying brick making machine

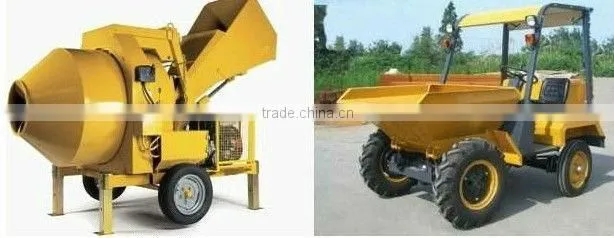

Materai feeding cart | |
Motor type | ZS1100 |
Moror Power | 11KW |
Rated load | 1000kg |
Pointed capacity | 0.78m3 |
length of driving wheel | 1280mm |
Ground clearance | 190mm |
Empty self weight | 1050kg |
Outside dimension | 2620*1500*1960mm |
Geometrical capacity | 0.5m3 |
Wheelbase | 1500mm |
Minimum turning radius | 4m |

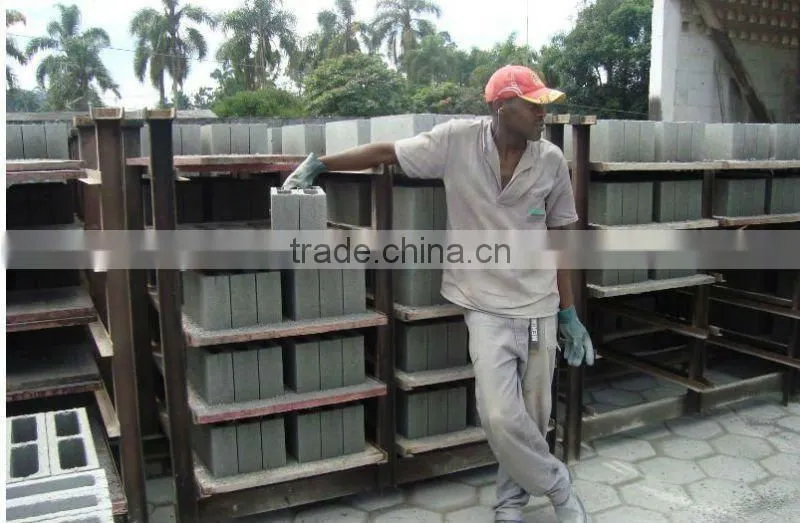

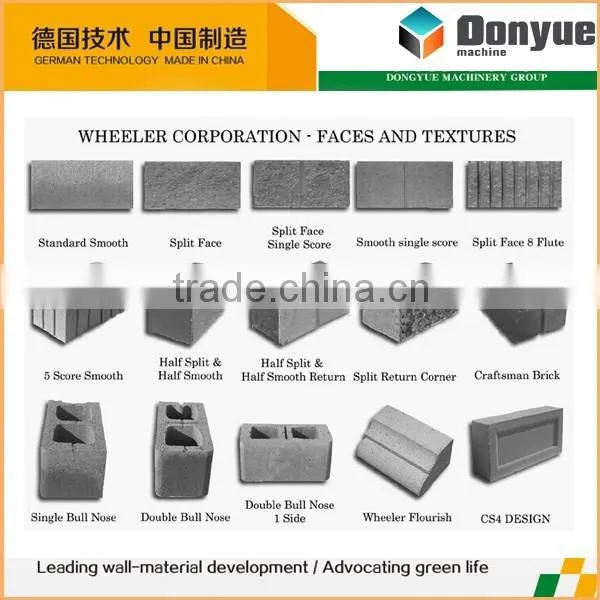

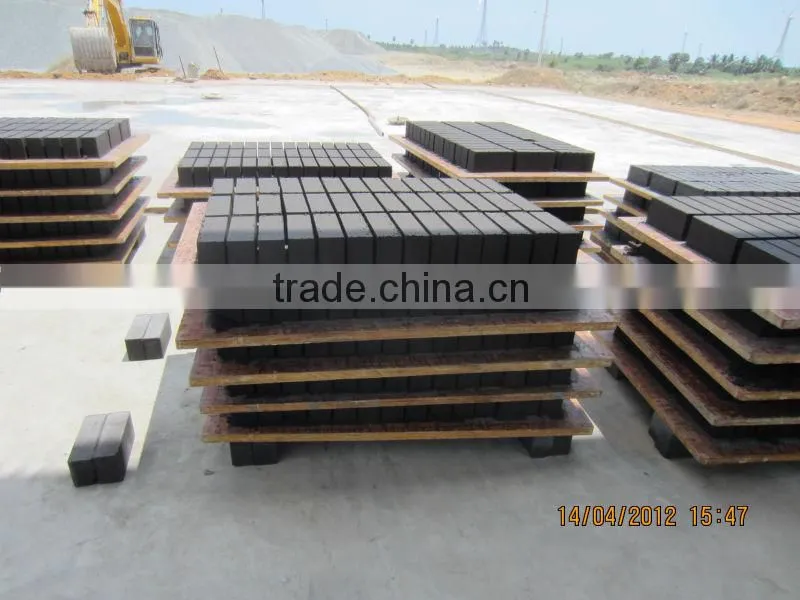

The block sample of QTM6-25 hollow bricks machine indian price

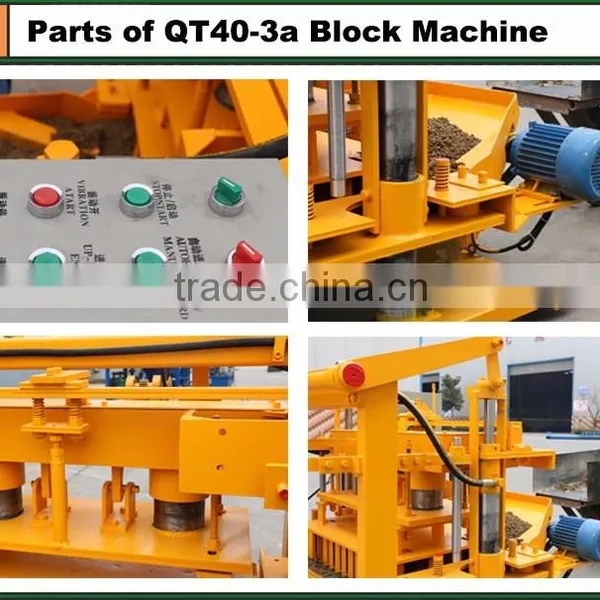

2. The egg laying brick making machine main advantages
( 1) Full automatic and hydraulic automatic block making machine , can produce all kinds of bricks, and just change the moulds, such as the solid bricks, hollow blocks, paver blocks and so on.
(2) German Siemens motors
(3) Japan Mitsubishi PLC
(4) Omron travel switch
(5) The moulds: We adopt the heat treatment technique to increase the lifespan of the moulds
(6) Certificates: SGS/CE/ISO9001 2008
(7) Mould heat treatment & carburization technology
(8) Strong High-Strength Steel Structure
4 .Technical characteristics of the egg laying brick making machine
1). Automatic block production lines, includees a cluster cars, steam curing cellar of block production line , are of high degree of automation .It can bring the fully-automated production process of batch charging, stir forming , transmission and curing, palletizing and packing into practice.
2). our machine have passed Europe CE and ISO9001 standard.we use Germany SIEMENS motors,Japanese MITSUBISHI PLC control system
3).Use three same size oil cylinder,will work at the same time,to insure the same density and high quality of the blocks.
4).Use 360°revoling method to make the material more uniform.
5).Use the heat treatment technial to deal with the mould,so the useful life of the mould is more longer.
6).Install the cooling pump to cool down the oil ,so to insure the normal work of the Hydraulic System.
7).Install the waste recycling tank,could reduce the waste of materials
Dongyue Machinery Group Co.,Ltd is a company specialized in producting Automatic block machine, aerated concrete block machine, the aerated concrete wall panel production line, autoclaved lime sand brick production line, autoclave etc. A and second-class pressure vessel, aerated concrete blocks, sand-lime brick, panel products, Oxygenated diesel, dimethyl ether , plant asphalt nine series,more than 60 varieties
1) How can I place order?
A: You can contact us by email about your order details, or place order on line.
2) How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T (HSBC bank) and Paypal, Western Union are the most usual ways we are using.
3) What's the order procedure?
A: First we discuss order details, production details by email or TM. Then we issue you an PI for your confirmation. You will be requested to do pr -epaid full payment or deposit before we go into production. After we get the deposit, we start to process the order. . Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.
4)How do you take care when your clients received defective products?
A: replacement. If there are some defective items, we usually credit to our customer or replace in next shipment.
5)How do you check all the goods in the production line?
A: We have spot inspection and finished product inspection. We check the goods when they go into next step production procedure.
