Simple QT40-3C hand press brick making machine for small business
- 1000 Set / Sets per Month
- Qingdao port
- T/T Credit Card
-
China pe200x300 smallest jaw crusher
-
Popular compound pendulum jaw crusher price
-
2016 china products stone coated steel roofing tile ,shingle steel roof tile
-
2016 china products lightweight roof tile,blue glazed roof tile
-
colored metal roofing prices,sand coated metal roofing tiles
-
roofing tiles coated with stones,roofing tiles for houses
Product Details
| Condition: | New | Type: | Hollow Block Making Machine | Brick Raw Material: | Cement |
| Processing: | Brick Molding Machine | Method: | Hydraulic Pressure | Automatic: | No |
| Capacity: | 3000 blocks per shift | Place of Origin: | Shandong, China | Brand Name: | DONGYUE |
| Model Number: | QT40-3C | Voltage: | According customer's local voltage | Power: | 1.5kw |
| Dimension(L*W*H): | 920x800x1260 | Certification: | CE,ISO9001,SGS | Warranty: | 12 months,1 year |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

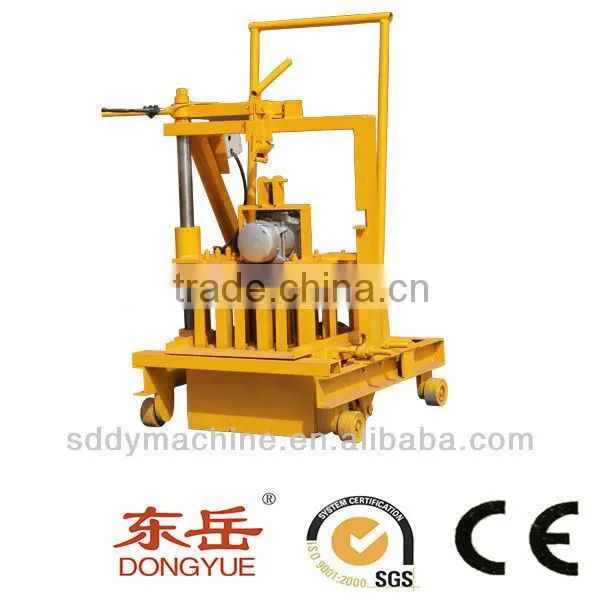

Simple QT40-3C hand press brick making machine for small business
Donyue group :
QT40-3C Main technical parameters:
Dimension | 950*800*1250mm |
Control System | Electrical control |
Vibration Form | Mold vibrating |
Forming height | 40-250mm |
Forming time | 30-40s |
Power | 1.5KW |
Total weight | 250KG |
Voltage | 220/240/380/440V |
QT40-3C Production capacity :
size (mm) | Pcs/mold | Forming time | Pcs/h |
400*150*200 | 3 | 30-40s | 240-270 |
400*200*200 | 2 | 30-40s | 160-180 |

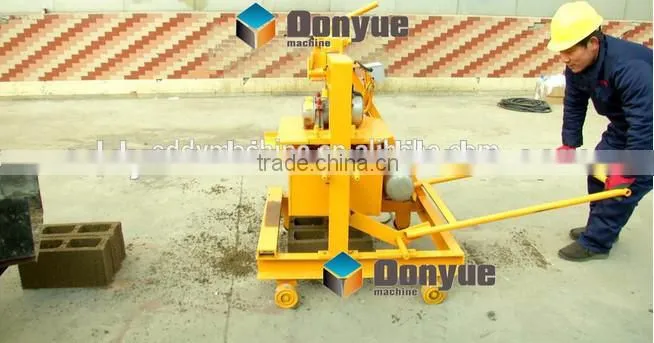

QT40-3C is a moving baking-free brick machine, it works on cement surface, producing hollow bricks and solid bricks, without any pallet, save labor force. This machine uses European CE CertificationGermany Siemens motors, reliable quality, low fault rate and durable. Only two men can do all the work, one operates the mixer and feeding material, the other one operate the host machine, this machine suit small factory.
