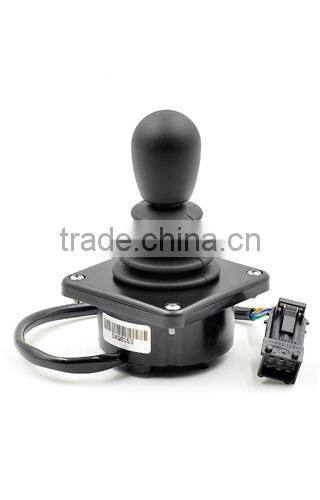

YJ500 Self Return Joystick for Off-high Way Vehicle
- SHANGHAI/NINGBO
- T/T L/C D/P D/A Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | HR | |
| Model Number | YJ500 |
Product Description
Product features
| 1. Building block design |
| 2. Spring automatic reset |
| 3. Fully sealed design |
| 4. Can adapt to the complex environment |
Potentiometer specifications
Environment Specifications | ||
Storage temperature | normal temperature | |
Operating temperature | —25℃~+80℃ | |
Installation of flange protection grade | IP56 | |
Vibration | amplitude of vibration ±3g, frequency 10HZ-200HZ | |
Shock | 20g, 6ms, half sine type | |
EMC anti-interference grade | 100V/m, 30MHZ-1GHZ, 80%Sine-wave modulation, satisfy EN 50082-2 (1995) standards | |
Transmit grade | 150KHZ-30MHZ, grade B, satisfy EN 50081-2 (1993) standards | |
ESD anti-interference grade | Level 4, 8 kv contact discharge, 15 kv air discharge, satisfy IEC 61000-4-2 standards | |
Mechanical Specifications | ||
Mechanical rotation | ±32° (potentiometer) ±20° (hall sensor) | |
Operating torque | 7.5N(50Nmax) | |
Mechanical life | 5,000,000 cycle | |
Mechanical tolerance | ±0.5° | |
Electrical Parameters | ||
Hall type | Power supply voltage | 5±0.5VDC |
| The power consumption of current | 6.5 mA/each hall chip |
| Resolution | Infinite |
| Maximum voltage | 15 VDC continuous |
| Reverse polarity maximum voltage | 14.5VDC |
| Load resistance | 5KΩ |
| The median voltage (no-load) | 48~52%Vs |
Potentiometer | Power supply voltage | DC24V |
| Power supply current | <20mA |
| Resolution | Infinite |
| Resistance (10%) | 5KΩ, 10KΩ |
| Electrical rotation | ±32° |
| Output voltage range (Relative voltage) | 0~100%;10~90% |
| Maximum voltage | 48%~52% |
| Potentiometer maximum load of voltage | 32VDC |
| Maximum power consumption (25 ℃) | 0.25W |
| The direction of the switch | Switch position ±3° |
Application
YJ500 industrial joystick, mainly used in forklift truck and other construction machinery hydraulic proportional control and variable frequency motor control.

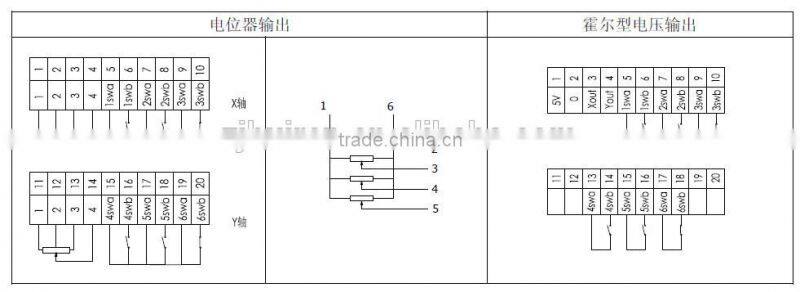

Wiring instruction

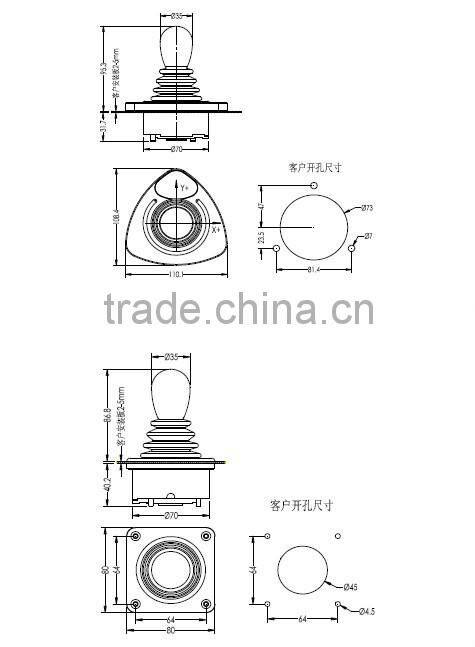

Size

Zhejiang HuiRen Electronic Limited Company is located in the center of the city Huzhou (Zhejiang, China) which is known as the pearl of South Taihu Lake. HuZhou has a facilitated transportation, with a number of National Roads, highways, railways, and waterways running across the city, it is conveniently connected to Shanghai, Hangzhou, Wuxi and Suzhou.
Our company is specialized in sophisticated electric eonducted plastic products such as precision angular-displacement sensors, precision linear displacement sensors and precision conductive plastic potentiometers. The products are widely used in the field of automation control and servo, such as military affairs, aviation, automobile, oil industries, machinery and mediacal instruments and so on.
Our company focuses on management in all aspects, adhering to the principle of satisfying customers and faithfully serving all customers.
We will provide you with our best products and services. Welcome!
