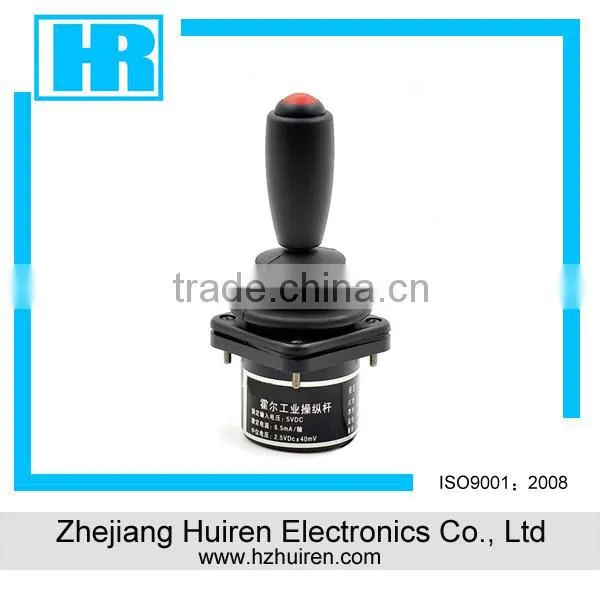

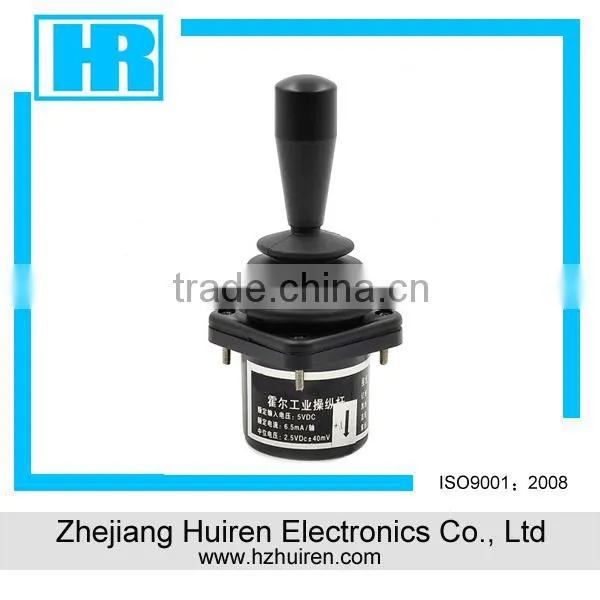

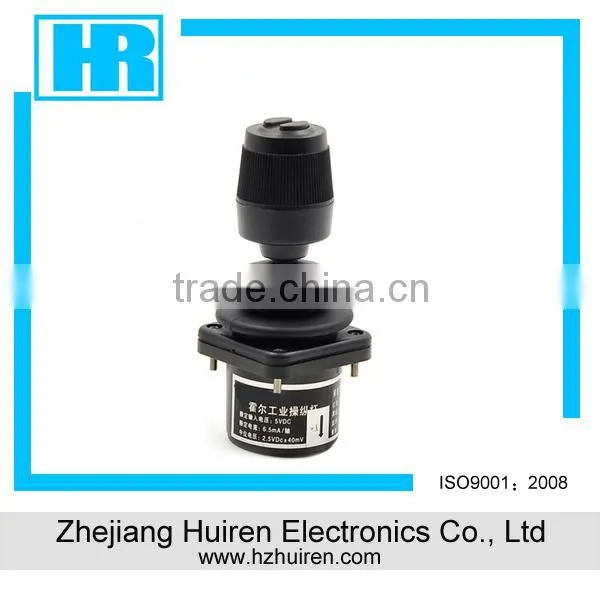

Help CenterYJ600 Double Axis Hall Type Joystick
Related Products
-
FJ11 Handle Industrial Joystick ControllerUS$ 80 - 180MOQ: 1 Piece -
HJ5 Controller for Mining MachineryUS$ 100 - 250MOQ: 1 Piece
-
HJ8 Industrial Joystick for Overhead Working TruckUS$ 20 - 100MOQ: 1 Piece
-
HJ60 Joystick for Jeannie Shear ForkUS$ 100 - 380MOQ: 1 Piece
-
YJ100 Joystick for Aerial Fire TruckUS$ 60 - 250MOQ: 1 Piece
Product features
| 1.Spring automatic reset | ||
| 2.Uniaxial, biaxial arbitrary direction and three shafts operation | ||
| 3.Button is optional | ||
| 4.Can choose the output voltage range according to the requirement | ||
| 5.RS232 or USB interface output |
Potentiometer specifications
| Technical information | ||
| Environment characteristics | ||
| Storage temperature | normal temperature drying | |
| Use environment | (-25℃~+80℃ | |
| Mounting flange above protection level | IP56 | |
| Mechanical properties | ||
| The X and Y axis mechanical angle | ±20° | |
| Operating torque | 1N(25Nmax) | |
| Mechanical life | 5,000,000 | |
| Mechanical error | ±0.3° | |
| Electrical properities | ||
| Supply voltage | 5±0.5VDC | |
| The expendable current of power | 6.5mA/Each Holzer chip | |
| Resolution | infinite | |
| Maximum voltage | 15VDC continuous | |
| Reverse polarity maximum voltage | 14.5VDC | |
| Load resistance | 5KΩ | |
| The median voltage (no load) | 48~52%Vs |
Application

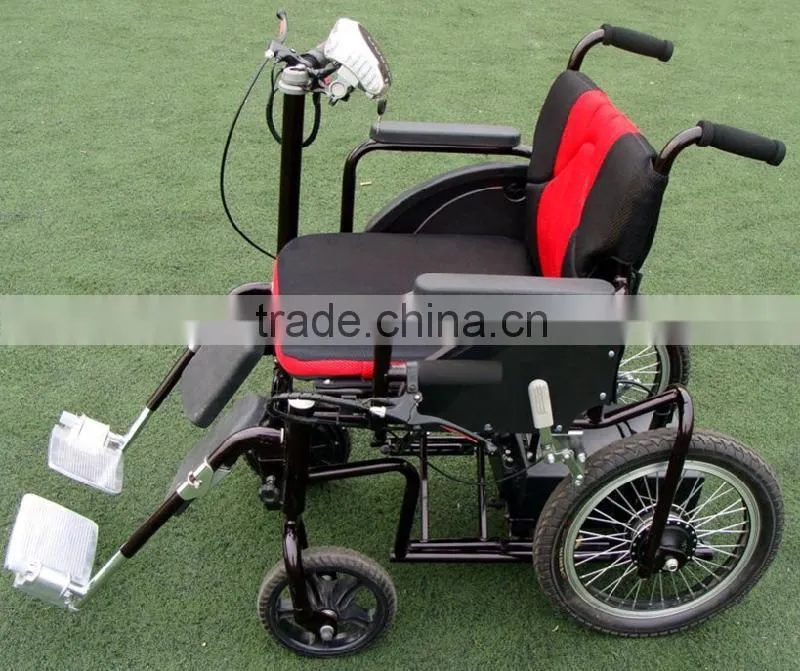

The series of industrial control level is mainly used in electric wheelchair, video control equipment.

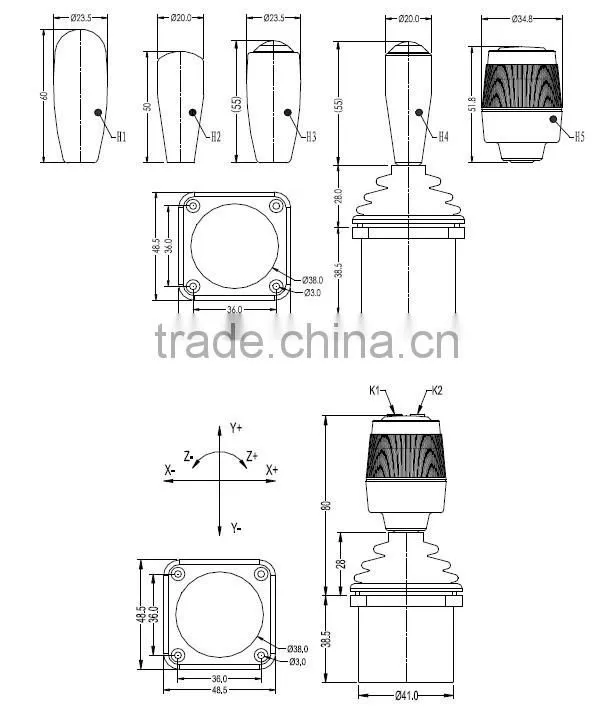

Size
Zhejiang HuiRen Electronic Limited Company is located in the center of the city Huzhou (Zhejiang, China) which is known as the pearl of South Taihu Lake. HuZhou has a facilitated transportation, with a number of National Roads, highways, railways, and waterways running across the city, it is conveniently connected to Shanghai, Hangzhou, Wuxi and Suzhou.
Our company is specialized in sophisticated electric eonducted plastic products such as precision angular-displacement sensors, precision linear displacement sensors and precision conductive plastic potentiometers. The products are widely used in the field of automation control and servo, such as military affairs, aviation, automobile, oil industries, machinery and mediacal instruments and so on.
Our company focuses on management in all aspects, adhering to the principle of satisfying customers and faithfully serving all customers.
We will provide you with our best products and services. Welcome!
